Cylinder head — Mk1 Golf Engine (1981)

Factory title: Volkswagen Golf (1981) - Cylinder block. oil sump

Generation: Mk1 1981 (RDW) Group: Engine Rebuild step 1 Parts: 70 Primary OEM: 172 721 399 A, 026 103 547, N 900 719 01

Cylinder head for the Volkswagen Golf Mk1 (1981): factory exploded diagram 5000 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 69 OEM part numbers across 70 catalogued positions including 172 721 399 A, 026 103 547 and N 900 719 01. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 69 OEM part numbers across 70 numbered positions.

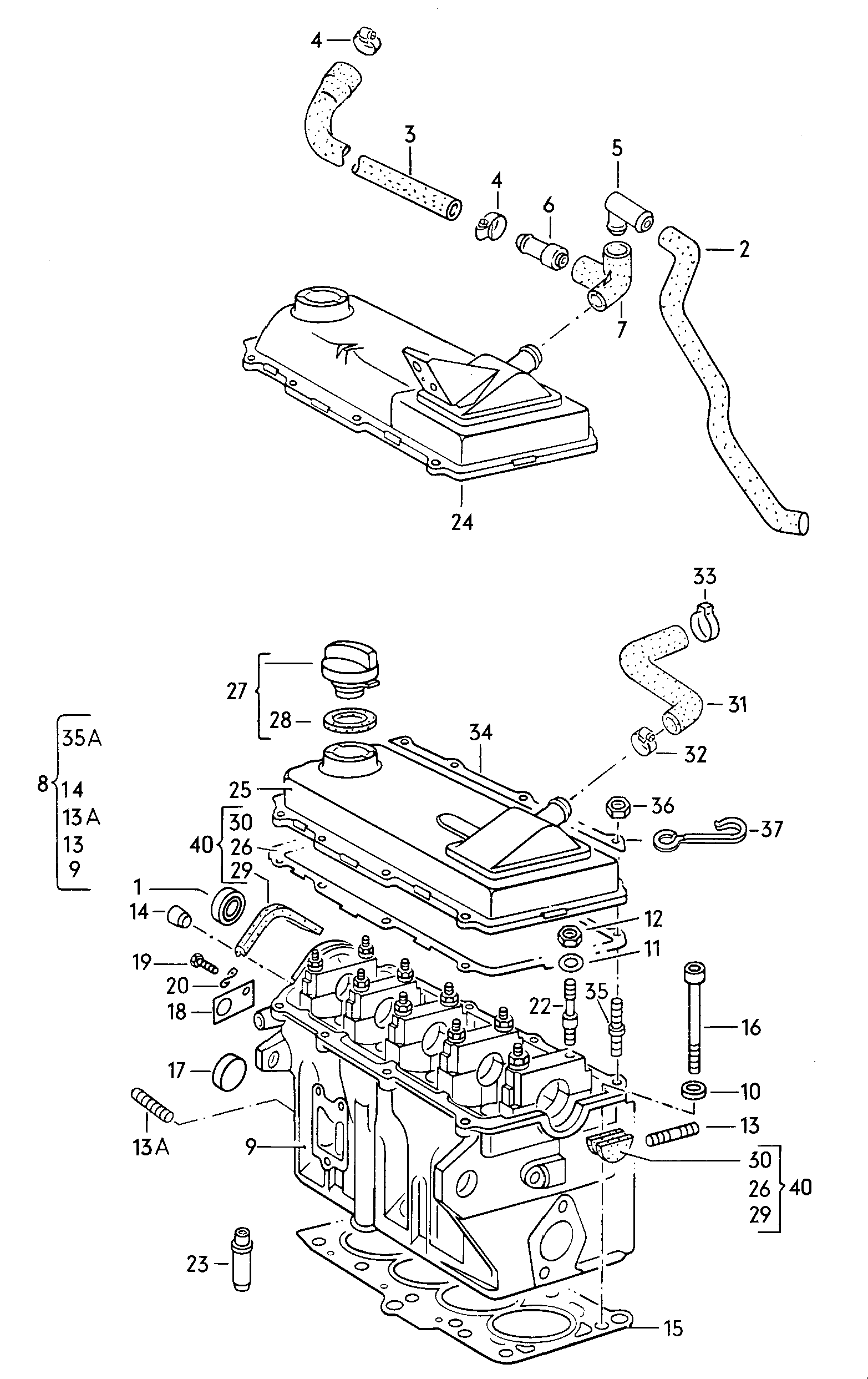

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Cylinder head 1.5-1.7 ltr. EG,EM,EN,FR,GH,JB,DIESEL:CR 1.5-1.7 ltr.	—
-	Clamp EG,EN,GF,GG	172 721 399 A
-	oil deflector	026 103 547
-	Clamp LC 16-27 EG,EN LC 16-27	N 900 719 01
-	Clamp 16-28 X 9 X 0,5 EG,EN 16-28 X 9 X 0,5	N 905 618 01
(10)	Washer M >> CR 176 338 11,5 X 20 11,5 X 20	056 103 377
(14)	Bungsoversize 8 8	056 103 379 A
(15)	Cylinder head gasket M CR 176 339>> 1,4 MM 1,4 MM	068 103 383 FL
(15)	Cylinder head gasket M CR 176 339>> 1,61 MM 1,61 MM	068 103 383 FN
(15)	Cylinder head gasket M CR 176 339>> 1,53 MM 1,53 MM	068 103 383 FM
(15)	Cylinder head gasket M >> CR 176 338 1,4 MM 1,4 MM	068 103 383 AT
(15)	Cylinder head gasket M >> CR 176 338 1,5 MM 1,5 MM	068 103 383 BA
(15)	Cylinder head gasket M >> CR 176 338 1,4 MM 1,4 MM	068 103 383 ES
(15)	Cylinder head gasket M >> CR 176 338 1,5 MM 1,5 MM	068 103 383 ET
(15)	Cylinder head gasket M >> CR 176 338 1,6 MM 1,6 MM	068 103 383 FA
(16)	Socket head bolt withhexagon socket head M >> CR 176 338 M 11 X 1,5 X 98 M 11 X 1,5 X 98	056 103 385 A
(16)	Socket head bolt M CR 176 339>> M 12 X 115 M 12 X 115	068 103 384 A
(23)	Valve guidefor intake valve 36,5 MM/8 MM EG,EM,EN,FR,GH,JB 36,5 MM/8 MM	056 103 419 A
(23)	Valve guide 36,5 MM/8 MM DIESEL:CR 36,5 MM/8 MM	056 103 419 A
(31)	air hose DIESEL:CR	068 103 493 A
(8)	Cylinder head with valvesand camshaft EG	049 103 265 CX
(8)	Cylinder head with valvesand camshaft M CR 176 351>>	068 103 265 CX
(8)	Cylinder head EN	049 103 351 D
(8)	Cylinder head EM,FR,GH,JB	049 103 351
(8)	Cylinder head with valvesand camshaft EM,FR,GH,JB	049 103 265 AX
(8)	Cylinder head EG	049 103 351 C
(8)	Cylinder head with valvesand camshaft M >> CR 176 350	068 103 265 BX
(8)	Cylinder head M CR 176 351>>	068 103 351 G
1	Shaft oil seal	068 103 085 A
1	Shaft oil seal 47 X 10 47 X 10	068 103 085 E
10	Washer 11,5 X 20 EG,EM,FR,JB,GH 11,5 X 20	056 103 377
11	Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6	N 011 558 11
12	Hexagon nut M 8 M 8	N 011 008 8
13	Threaded pin M 8 X 30 M 8 X 30	N 044 411 5
13A	Threaded pin M 10 X 45 DIESEL:CR M 10 X 45	N 900 803 01
14	Bungs 7,4 7,4	056 103 379
15	Cylinder head gasket EG,EM,EN,FR,GH,JB	049 103 383 K
16	Socket head bolt with innermultipoint head M 11 X 1,5 X 98 EG,EM,EN,FR,GH,JB M 11 X 1,5 X 98	049 103 385 A
16	Socket head bolt with innermultipoint head M 11 X 1,5 X 96 EG,EM,EN,FR,GH,JB M 11 X 1,5 X 96	049 103 384 B
17	End cap 24 24	N 011 914 2
18	strap	055 103 390 A
19	Hexagon bolt M 8 X 18 M 8 X 18	N 010 239 11
2	air hose EG,EN	067 103 221 C
20	Spring washer B 8 X 15 B 8 X 15	N 012 241 10
20	Spring washer B 8 X 15 X 0,8 B 8 X 15 X 0,8	N 012 241 11
22	Threaded pin M 8 X 56 M 8 X 56	056 103 397
23	Valve guidefor exhaust valve 42,5 MM EG,EM,EN,FR,GH,JB 42,5 MM	049 103 419
24	cylinder head cover also use: 010 321 302 EG,EN 010 321 302	049 103 469 T
25	cylinder head cover also use: 026 103 547 EM,FR,GH,JB,DIESEL:CR 026 103 547	026 103 469 E
27	End cap	026 103 485 A
27	End cap	06A 103 485 F
28	Seal	059 103 487
28	Seal	06A 103 483 D
3	air hose EG	049 103 223 B
31	air hose EM,FR,GH,JB	056 103 493
32	Hose clamp LC 23-35 LC 23-35	N 024 511 3
32	Clamp 23-35 X 9 X 0,5 23-35 X 9 X 0,5	N 102 581 01
33	Clamp 26,3 26,3	058 131 193 A
34	strip	056 103 591
35	stud with shoulder M 6 X 25/M 6 X 14 M 6 X 25/M 6 X 14	026 103 400 A
36	Hexagon nut M 6 M 6	N 011 006 8
36	Hexagon nut M 6 M 6	N 011 006 24
37	Bracket EM	056 129 477
4	Hose clamp AL 12-22 EG AL 12-22	N 024 509 4
4	Clamp 12-22 X 9 X 0,4 EG 12-22 X 9 X 0,4	N 102 582 01
40	Gasket set for cylinderhead coverfor stud with shoulder	026 198 025 A
5	connection piece EG	035 103 229
6	Breather valve EG	035 103 245 A
7	valve housing EG	035 103 247 A
8	Cylinder head M >> CR 176 350	068 103 351 C

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1981
Generation region: RDW
Generation code: 026
Variant tags: petrol_8v_base
Factory group: 01 Engine
Factory subgroup: 5000
