Cylinder head — Mk1 Golf Engine (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Cylinder block with pistons. oil sump

Generation: Mk1 1979 - 1980 (RDW) Group: Engine Rebuild step 1 Parts: 83 Primary OEM: 056 198 025, 172 721 399 A, 010 321 302

Cylinder head for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 3010 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 78 OEM part numbers across 83 catalogued positions including 056 198 025, 172 721 399 A and 010 321 302. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 78 OEM part numbers across 83 numbered positions.

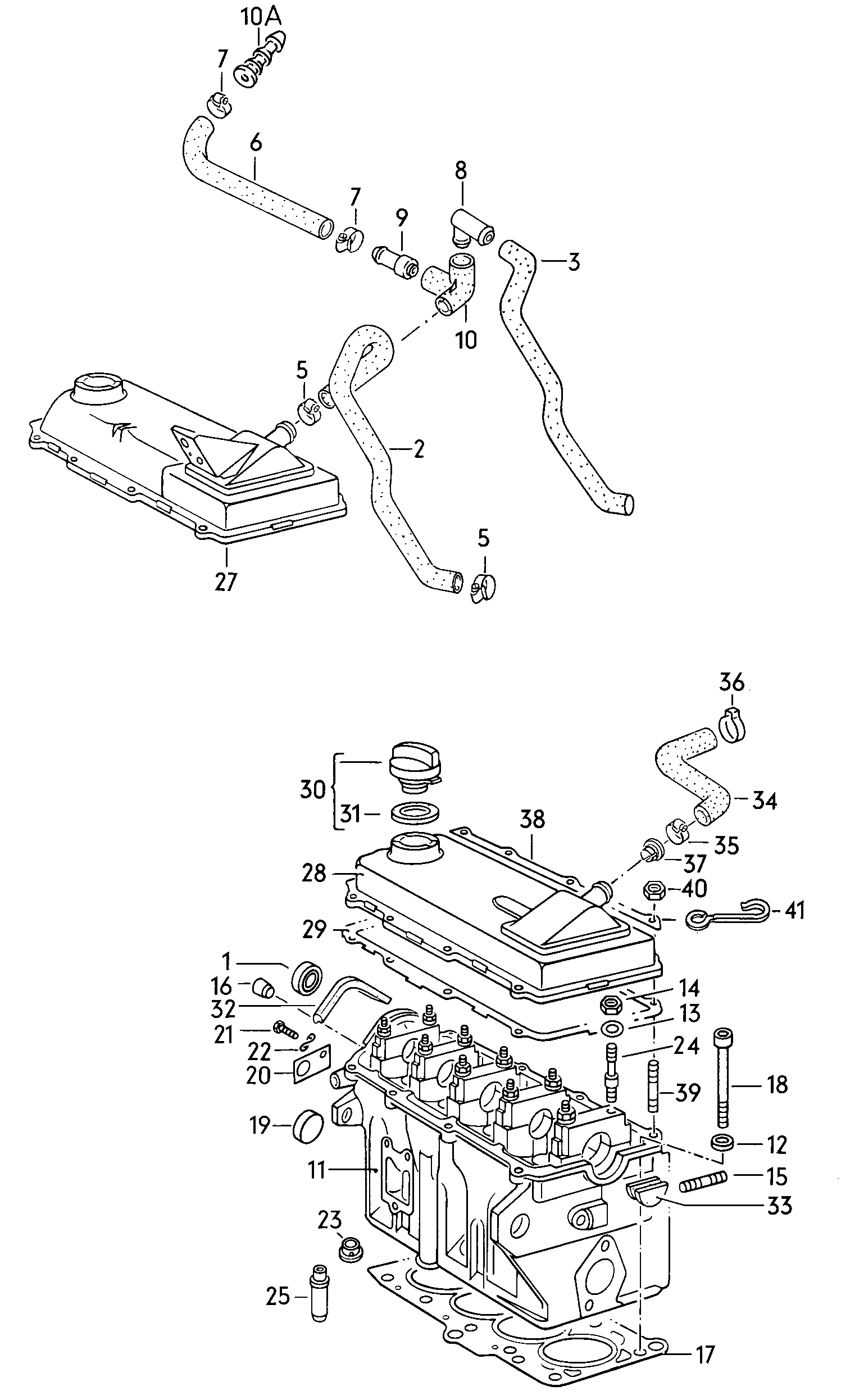

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Cylinder head 1.5/1.6 ltr. EG,EH,EJ,EM,FN,FV,FR,JB,GH,DIESEL:CK
1.5/1.6 ltr.
 —
-
Gasket set for cylinderhead coverfor stud without shoulder
 056 198 025
-
Clamp F 15 A 0800 001>>F 16 A 0000 001>>F 17 A 0000 001>>F 53 A 0000 001>> K-JETRONIC
 172 721 399 A
-
Clip
 010 321 302
-
Cap closure 8 MM
8 MM
 049 103 389
-
Cylinder head with valvesand camshaft EG
 049 103 265 CX
-
Clamp 32-50 X 9 X 0,5 EG
32-50 X 9 X 0,5
Type 19 makes this → 		N 024 507 7
-
Gasket set for cylinderhead coverfor stud with shoulder
 026 198 025 A
-
oil deflector EM,FN,FR,FV,JB,GH,DIESEL:CK
 026 103 547
(11)
Cylinder head with valvesand camshaft M CK 800 000>> 37 KW DIESEL:CK
37 KW
 068 103 265 JX
(11)
Cylinder head FR,FV,JB,EM,GH
 049 103 351
(11)
Cylinder head with valvesand camshaft FR,FV,JB,EM,GH
 049 103 265 AX
(11)
Cylinder head EG
 049 103 351 C
(11)
Cylinder head M >> CK 799 999 M 11
M 11
 068 103 351
(12)
Washer M >> CK 799 999 11,5 X 20
11,5 X 20
 056 103 377
(16)
Bungsoversize 8
8
 056 103 379 A
(17)
Cylinder head gasket 1,4
1,4
 068 103 383 C
(17)
Cylinder head gasket M CK 800 000>> 1,61 MM DIESEL:CK
1,61 MM
 068 103 383 FG
(17)
Cylinder head gasket M CK 800 000>> 1,57 MM DIESEL:CK
1,57 MM
 068 103 383 FF
(17)
Cylinder head gasket M CK 800 000>> 1,53 MM DIESEL:CK
1,53 MM
 068 103 383 FE
(17)
Cylinder head gasket M >> CK 799 999 1,6 MM
1,6 MM
 068 103 383 FD
(17)
Cylinder head gasket M >> CK 799 999 1,5 MM
1,5 MM
 068 103 383 FC
(17)
Cylinder head gasket M >> CK 799 999 1,4 MM
1,4 MM
 068 103 383 FB
(17)
Cylinder head gasket 1,6
1,6
 068 103 383 H
(17)
Cylinder head gasket 1,5
1,5
 068 103 383 G
(18)
Socket head bolt withhexagon socket head M >> CK 799 999 M 11 X 1,5 X 98
M 11 X 1,5 X 98
 056 103 385 A
(18)
Socket head bolt M CK 800 000>> M 12 X 115
M 12 X 115
 068 103 384 A
(25)
Valve guidefor exhaust valve 42,5 MM EG
42,5 MM
 049 103 419
(34)
air hose FN
 055 103 493
(34)
air hose EM,FR,FV,JB,GH
 056 103 493
(39)
stud with shoulder M 6 X 14/M 6 X 14
M 6 X 14/M 6 X 14
 026 103 400 A
1
Shaft oil seal
 068 103 085 A
1
Shaft oil seal 47 X 10
47 X 10
 068 103 085 E
10
valve housing M EG 119 325>>M EJ 030 001>>* "J.."
 035 103 247 A
11
Cylinder head EH,EJ
 049 103 351 D
11
Cylinder head with valvesand camshaft M >> CK 799 999 DIESEL:CK
 068 103 265 X
12
Washer 11,5 X 20 EG,EH,EJ,EM,FN,FV,FR,JB,GH
11,5 X 20
 056 103 377
13
Washer 8,4 X 15 X 1,6
8,4 X 15 X 1,6
 N 011 558 11
14
Hexagon nut M 8
M 8
 N 011 008 8
15
Threaded pin M 8 X 30
M 8 X 30
 N 044 411 5
16
Bungs 7,4
7,4
 056 103 379
17
Cylinder head gasket EG,EJ,EM,FN,EH,FR,FV,JB,GH
 049 103 383 K
18
Socket head bolt with innermultipoint head M 11 X 1,5 X 100 EG,EH,EJ,EM,FN,FR,FV,JB,GH
M 11 X 1,5 X 100
 049 103 385 A
18
Socket head bolt with innermultipoint head M 11 X 1,5 X 96 EG,EH,EJ,EM,FN,FR,FV,JB,GH
M 11 X 1,5 X 96
 049 103 384 B
19
End cap 24
24
 N 011 914 2
2
air hose EH,EG,EJ
 067 103 221 C
20
strap
 055 103 390 A
21
Hexagon bolt M 8 X 18
M 8 X 18
 N 010 239 11
22
Spring washer B 8 X 15 X 0,8
B 8 X 15 X 0,8
 N 012 241 11
22
Spring washer B 8 X 15
B 8 X 15
 N 012 241 10
23
No longer available
 —
24
Threaded pin M 8 X 56
M 8 X 56
 056 103 397
25
Valve guide 36,5 MM/8 MM
36,5 MM/8 MM
 056 103 419 A
25
Valve guidefor intake valve 36,5 MM/8 MM EG
36,5 MM/8 MM
 056 103 419 A
27
cylinder head cover also use: 049 103 389010 321 302 N 102 582 01 EH,EG,EJ
049 103 389010 321 302 N 102 582 01
 049 103 469 T
28
cylinder head cover also use: 026 103 547 EM,FN,FR,FV,JB,GH,DIESEL:CK
026 103 547
 026 103 469 E
29
Discont. / replace: 026 198 025 A
026 198 025 A
 —
30
End cap
 026 103 485
30
End cap
 06A 103 485 F
30
End cap
 026 103 485 A
31
Seal
 06A 103 483 D
31
Seal
 059 103 487
32
Discont. / replace: 026 198 025 A
026 198 025 A
 —
33
Discont. / replace: 026 198 025 A
026 198 025 A
 —
34
air hose DIESEL:CK
 068 103 493 A
35
Clamp 23-35 X 9 X 0,5
23-35 X 9 X 0,5
 N 102 581 01
35
Hose clamp LC 23-35
LC 23-35
 N 024 511 3
36
Clamp 26,3 EM,FR,FV,JB,GH
26,3
 058 131 193 A
37
Trim FN
 055 103 496 A
37
Trim FN
 055 103 496 A
38
strip
 056 103 591
39
Threaded pin M 6 X 15
M 6 X 15
 N 044 419 2
4
Clamp LC 32-50 EG
LC 32-50
 N 024 507 4
40
Hexagon nut M 6
M 6
 N 011 006 8
40
Hexagon nut M 6
M 6
 N 011 006 24
41
Bracket EM
 056 129 477
5
Clamp LC 16-25
LC 16-25
 N 900 719 01
5
Clamp 16-28 X 9 X 0,5
16-28 X 9 X 0,5
 N 905 618 01
6
air hose M EG 119 325>>M EJ 030 001>>* "J.."
 049 103 223 B
7
Hose clamp LC 12-22
LC 12-22
 N 024 509 4
7
Clamp 12-22 X 9 X 0,4
12-22 X 9 X 0,4
 N 102 582 01
8
connection piece M EG 119 325>>M EJ 030 001>>* "J.."
 035 103 229
9
Breather valve M EG 119 325>>M EJ 030 001>>* "J.."
 035 103 245 A

Reproduction parts by Type 19 for this diagram

Volkswagen no longer supplies one part on this plate. Type 19 manufactures it to the factory number.

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk1
Model years
1979 - 1980
Generation region
RDW
Generation code
027
Variant tags
petrol_8v_base
Factory group
01 Engine
Factory subgroup
3010

Related factory diagrams

Other published engine plates for the Mk1 Golf in this catalogue.

The complete Mk1 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the cylinder head diagram for the Mk1 Golf?
This diagram lists 78 OEM part numbers for the Mk1 Golf. The first three are 056 198 025, 172 721 399 A and 010 321 302.
Which Mk1 Golf years and engines does this diagram cover?
This plate is from the Mk1 Golf 1979 - 1980 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk1 Golf factory parts catalogue?
The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.
