Cylinder head — Mk1 Golf Engine (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - Cylinder block. oil sump

Generation: Mk1 1982 - 1983 (RDW) Group: Engine Rebuild step 1 Parts: 35 Primary OEM: N 013 811 5, N 013 806 4, N 016 024 1

Cylinder head for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 4000 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 34 OEM part numbers across 35 catalogued positions including N 013 811 5, N 013 806 4 and N 016 024 1. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 34 OEM part numbers across 35 numbered positions.

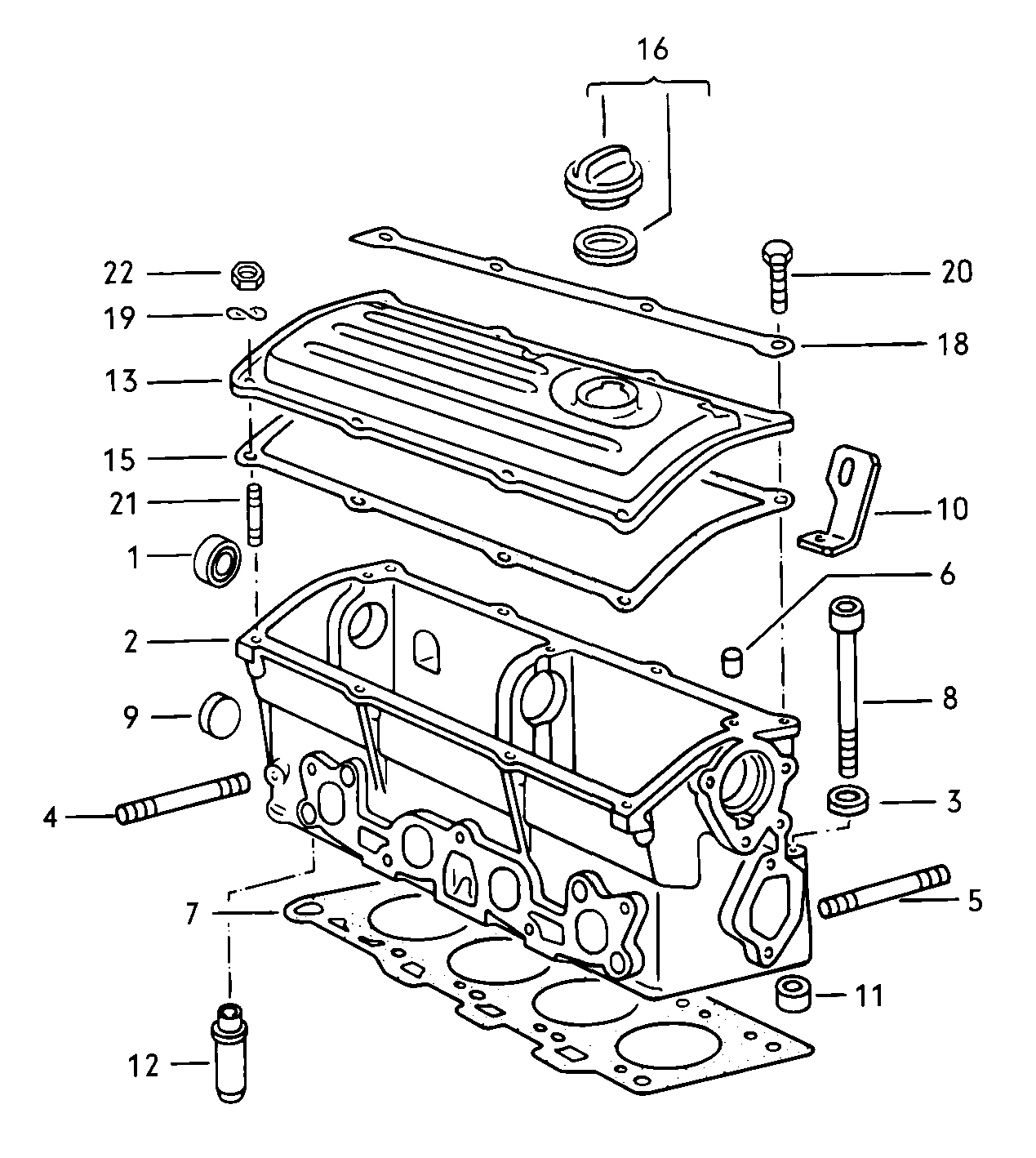

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Cylinder head 1.1/1.3 ltr. GF,GG,GS 1.1/1.3 ltr.	—
-	seal ring 10 X 13,5 10 X 13,5	N 013 811 5
-	seal ring A 10 X 14 A 10 X 14	N 013 806 4
-	sealing plug M 10 X 1 M 10 X 1	N 016 024 1
(2)	Cylinder head with valvesand camshaft GF	052 103 265 EX
(2)	Cylinder head with valvesand camshaft GG	052 103 265 DX
(2)	Cylinder head also use: N 016 024 1 N 013 811 5 GS N 016 024 1 N 013 811 5	052 103 351 H
(2)	Cylinder head with valvesand camshaft GS	052 103 265 BX
(6)	Bungsoversize 8 8	056 103 379 A
(7)	Cylinder head gasket GF,GS	030 103 383 M
1	Shaft oil seal 47 X 10 47 X 10	068 103 085 E
1	Shaft oil seal	068 103 085 A
10	Suspension lug	052 103 391 B
11	Centre sleeve	052 103 395
12	Valve guide 36,5 MM/8 MM 36,5 MM/8 MM	056 103 419 A
13	cylinder head cover	052 103 475 A
15	Seal	052 103 483 E
16	End cap	026 103 485 A
16	End cap	026 103 485
16	End cap	06A 103 485 F
18	strip	052 103 591 A
19	Spring washer A 6 A 6	N 012 227 3
19	Spring washer 6 6	N 012 226 5
2	Cylinder head also use: N 016 024 1 N 013 811 5 GF,GG N 016 024 1 N 013 811 5	052 103 351 E
20	Hexagon bolt M 6 X 18 M 6 X 18	N 010 216 12
21	Threaded pin M 6 X 15 M 6 X 15	N 044 419 2
22	Hexagon nut M 6 M 6	N 011 006 24
22	Hexagon nut M 6 M 6	N 011 006 8
3	Washer 11,5 X 20 11,5 X 20	056 103 377
4	Threaded pin M 8 X 28 M 8 X 28	N 044 410 4
5	Threaded pin M 8 X 25 M 8 X 25	N 044 408 2
6	Bungs 7,4 7,4	056 103 379
7	Cylinder head gasket GG	052 103 383 AB
8	Socket head bolt with innermultipoint head M 11 X 1,5 X 98 M 11 X 1,5 X 98	049 103 385
9	End cap 24 24	N 011 914 2

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1982 - 1983
Generation region: RDW
Generation code: 007
Variant tags: petrol_8v_base
Factory group: 01 Engine
Factory subgroup: 4000
