Oil pump — Mk1 Golf Engine (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - Oil pump. oil filter. Oil dipstick

Generation: Mk1 1982 - 1983 (RDW) Group: Engine Rebuild step 1 Parts: 34 Primary OEM: N 012 226 5, N 012 228 3, N 012 229 3

Oil pump for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 13010 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 32 OEM part numbers across 34 catalogued positions including N 012 226 5, N 012 228 3 and N 012 229 3. Parts on this plate carry the engine code JK. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 32 OEM part numbers across 34 numbered positions.

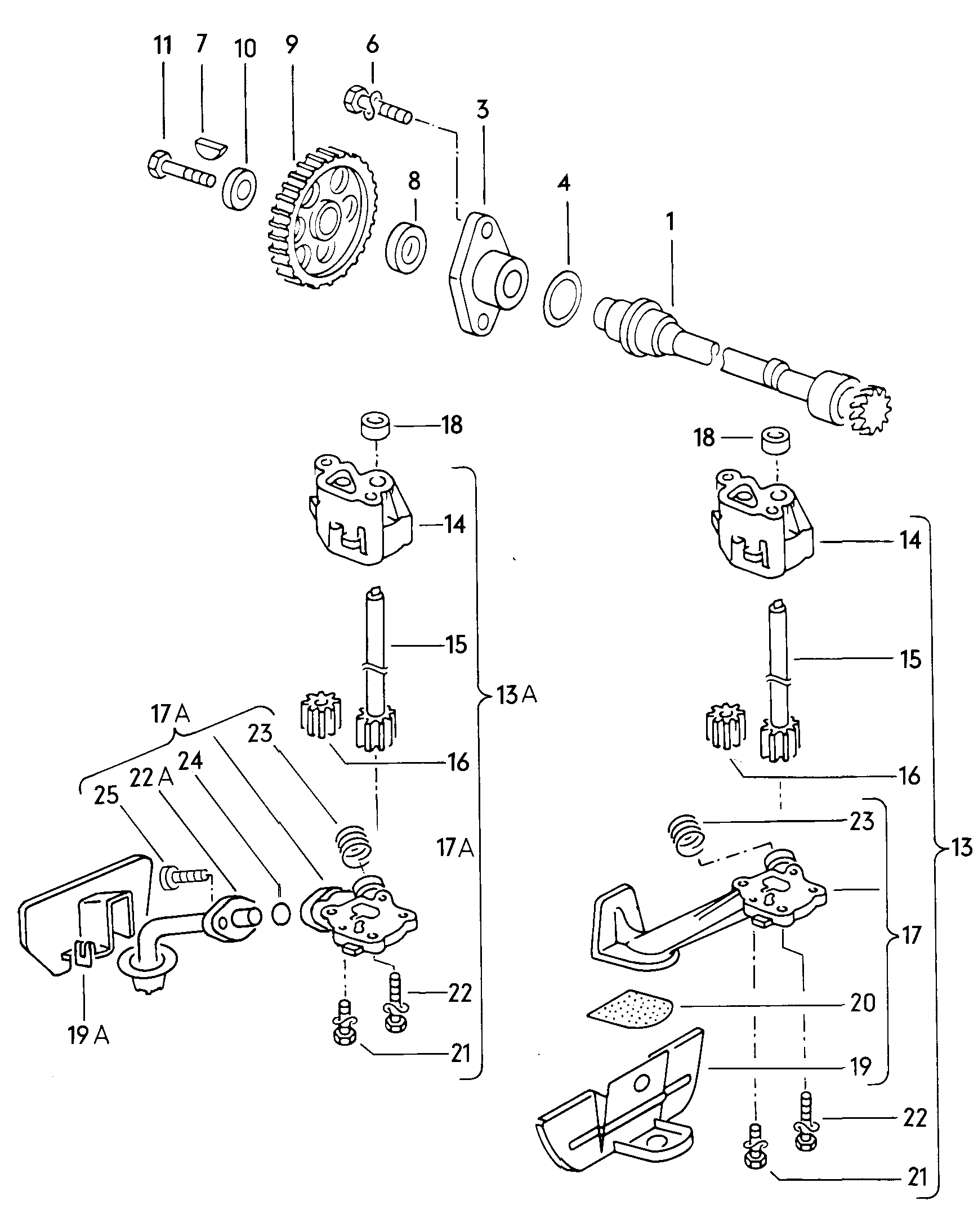

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
oil pump 1.5-1.8 ltr. EG,EM,EN,FR,GH,JB,DX,JJ,EW,HN,DIESEL:CR,JKT-DIESEL:CY
1.5-1.8 ltr.
 —
-
Spring washer 6
6
 N 012 226 5
-
Spring washer F 15-D-000 001>>F 16-D-000 001>>F 17-D-000 001>>F 53-D-000 001>> 8
8
 N 012 228 3
-
Spring washer 8 X 15 X 0,5
8 X 15 X 0,5
 N 012 229 3
(1)
Intermediate shaft DIESEL:CR,JKT-DIESEL:CY
 068 115 017 C
(16)
gear - oil pump only for: 027 115 105
027 115 105
 068 115 123 A
(21)
Hexagon bolt also use: M 6 X 22 N 012 226 5
M 6 X 22 N 012 226 5
 N 010 222 8
(22)
Hexagon bolt F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999 F >> 53-C-100 000 M 8 X 75
M 8 X 75
 N 010 375 3
(22)
Hexagon bolt F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999 F >> 53-C-100 000 M 8 X 75
M 8 X 75
 N 010 375 10
(22)
Hexagon bolt F 15-D-000 001>>F 16-D-000 001>>F 17-D-000 001>>F 53-D-000 001>> M 8 X 90
M 8 X 90
 N 010 388 3
(23)
Pressure spring EG,EN,DX,JJ,EW,HN,DIESEL:JK,T-DIESEL:CY
JK
049 115 421
(9)
Poly V-belt pulley DIESEL:CR,JKT-DIESEL:CY
 068 115 021 D
1
Intermediate shaft Z=17 EG,EM,EN,FR,GH,JB,EW,HN,DX,JJ
Z=17
 049 115 017 B
10
Washer 12,5 X 28 X 6
12,5 X 28 X 6
 056 109 143
11
Hexagon bolt M 12 X 1,50 X 35
M 12 X 1,50 X 35
 N 010 137 1
13
oil pump also use: N 010 388 3 N 012 228 3 T-DIESEL:CYDIESEL:JK,CR
N 010 388 3 N 012 228 3
JK
068 115 105 AN
13A
oil pump also use: 055 115 221 BN 010 388 3 N 012 228 3 EG,EM,FR,GH,DX,JJ,EW,HN,JB
055 115 221 BN 010 388 3 N 012 228 3
 027 115 105 E
15
No longer available
 —
16
gear - oil pump only for: 055 115 105 D 068 115 105 D 068 115 105 AN 027 115 105 E 027 115 105
055 115 105 D 068 115 105 D 068 115 105 AN 027 115 105 E 027 115 105
 056 115 123 A
17A
Oil pump cover
 055 115 151 E
18
dowel sleeve
 056 115 167
19
extractor basket F >> 15-C-018 000*F >> 15-C-050 000 F >> 16-C-630 000*F >> 16-C-999 999 F >> 17-C-630 000*F >> 17-C-999 999 F >> 53-C-041 000*F >> 53-C-100 000 EG,ENEM,GH,JBEG,ENEM,FR,JB,GH;DIESEL:CREG,ENEM,JB,GH,DIESEL:CRT-DIESEL:CYEG,ENFR,JB
 049 115 173 A
19A
Surge lock F 15-C-018 001>>*F 15-D-000 001>>F 16-C-630 001>>*F 16-D-000 001>>F 17-C-630 001>>*F 17-D-000 001>>F 53-C-041 001>>*F 53-D-000 001>> EG,ENEM,JB,DX,JJEG,ENEM,FR,JB,DX,JJ,HN,DIESEL:JK,T-DIESEL:CYEG,ENEM,JB,DX,JJ,HN,DIESEL:JKT-DIESEL:CYEG,ENEM,FR,JB,DX,JJ,EW
JK
055 115 221 B
20
oil strainer F >> 15-C-018 000*F >> 15-C-050 000 F >> 16-C-630 000*F >> 16-C-999 999 F >> 17-C-630 000*F >> 17-C-999 999 F >> 53-C-041 000*F >> 53-C-100 000 EG,ENEM,JB,GHEG,ENEM,FR,JB,GH;DIESEL:CREG,ENEM,JB,GH;DIESEL:CR,T-DIESEL:CYEG,ENFR,JB
 055 115 175 A
23
Pressure spring EM,FR,GH,JB;DIESEL:CR
 068 115 421
24
seal ring F 15-C-018 001>>*F 15-D-000 001>>F 16-C-630 001>>*F 16-D-000 001>>F 17-C-630 001>>*F 17-D-000 001>>F 53-C-041 001>>*F 53-D-000 001>> 20 X 3,15 EG,ENEM,JB,DX,JJEG,ENEM,FR,JB,DX,JJ,HN,DIESEL:JK,T-DIESEL:CYEG,ENEM,JB,DX,JJ,HN,DIESEL:JKT-DIESEL:CYEG,ENEM,FR,JB,DX,JJ,EW
20 X 3,15
JK
N 028 222 2
25
Socket head bolt F 15-C-018 001>>*F 15-D-000 001>>F 16-C-630 001>>*F 16-D-000 001>>F 17-C-630 001>>*F 17-D-000 001>>F 53-C-041 001>>*F 53-D-000 001>> EG,ENEM,JB,DX,JJEG,ENEM,FR,JB,DX,JJ,HN,DIESEL:JX,T-DIESEL:CYEG,ENEM,JB,DX,JJ,HN,DIESEL:JKT-DIESEL:CYEG,ENEM,FR,JB,DX,JJ,EW
 026 103 637 A
3
guide ringmarked white
 027 115 033
4
O-ring 56 X 2
56 X 2
 N 903 535 01
6
Hexagon bolt also use: M 8 X 25 N 012 229 3
M 8 X 25 N 012 229 3
 N 010 242 22
7
woodruff key 4 X 5
4 X 5
 N 012 708 2
8
Shaft oil seal
 068 103 085 A
8
Shaft oil seal 47 X 10
47 X 10
 068 103 085 E
9
toothed belt pulley EG,EM,EN,FR,GH,JB,DX,JJ,EW,HN
 049 109 111 C
