Which VW part numbers are on the oil pumpoil filter oil dipstick diagram for the Mk1 Golf?

This diagram lists 70 OEM part numbers for the Mk1 Golf. The first three are N 012 229 3, N 012 226 5 and N 012 241 10.

Which Mk1 Golf years and engines does this diagram cover?

This plate is from the Mk1 Golf 1981 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk1 Golf factory parts catalogue?

The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.

Oil pumpoil filter oil dipstick — Mk1 Golf Engine (1981)

Factory title: Volkswagen Golf (1981) - Oil pump. oil filter. Oil dipstick

Generation: Mk1 1981 (RDW) Group: Engine Rebuild step 1 Parts: 72 Primary OEM: N 012 229 3, N 012 226 5, N 012 241 10

Oil pumpoil filter oil dipstick for the Volkswagen Golf Mk1 (1981): factory exploded diagram 13000 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 70 OEM part numbers across 72 catalogued positions including N 012 229 3, N 012 226 5 and N 012 241 10. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 70 OEM part numbers across 72 numbered positions.

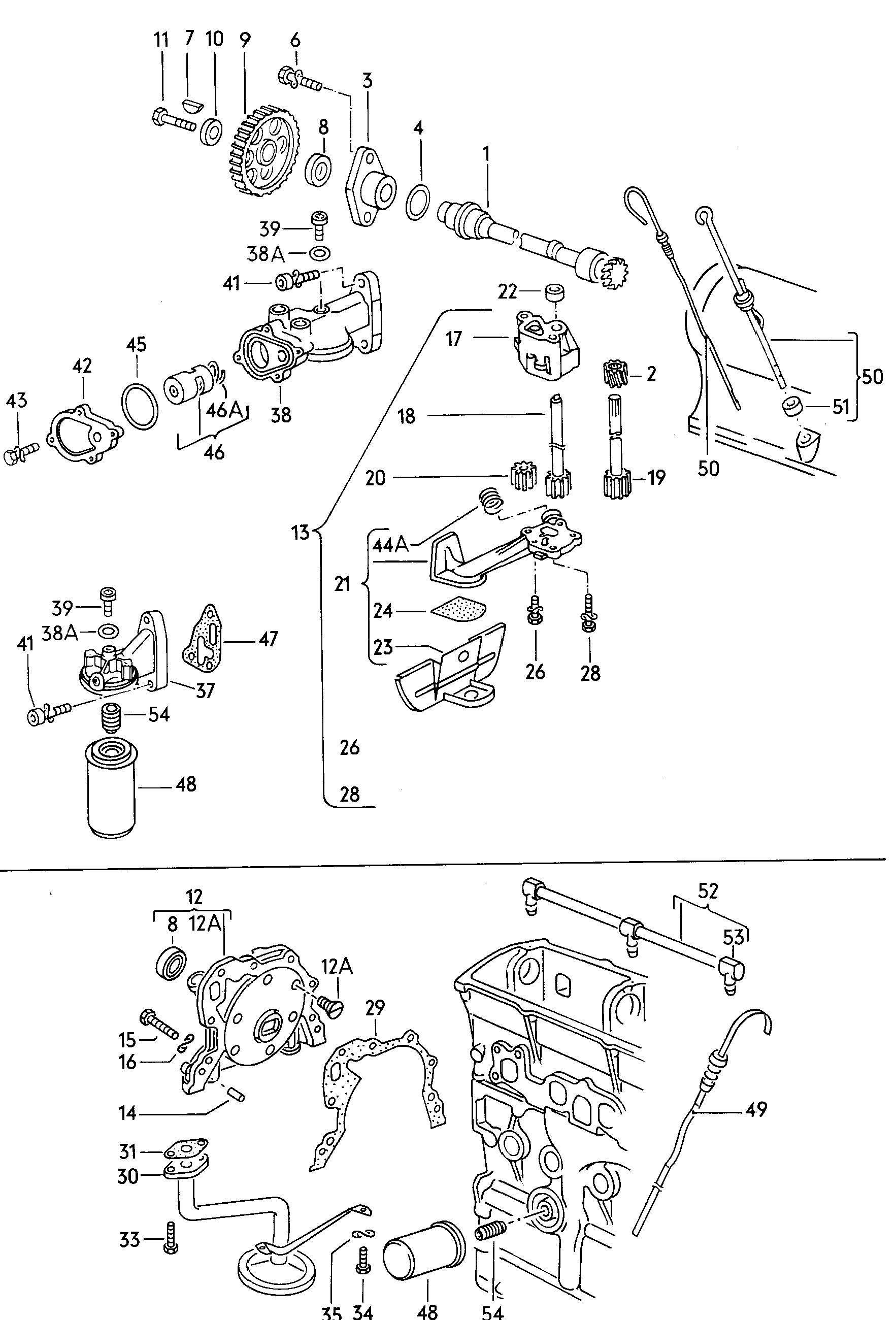

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Spring washer 8 X 15 X 0,5 8 X 15 X 0,5	N 012 229 3
-	Spring washer 8 X 15 X 0,5 8 X 15 X 0,5	N 012 229 3
-	Spring washer 6 6	N 012 226 5
-	Spring washer B 8 X 15 B 8 X 15	N 012 241 10
-	Spring washer 6 6	N 012 226 5
-	Spring washer B 8 X 15 X 0,8 B 8 X 15 X 0,8	N 012 241 11
(1)	Intermediate shaft CR	068 115 017 C
(13)	oil pump also use: 055 115 221 B EG,EM,EN,FR,GH,JB 055 115 221 B	027 115 105 E
(13)	oil pumpfor models with brakeservo also use: N 010 388 3 N 012 241 10 CR N 010 388 3 N 012 241 10	068 115 105 AN
(13)	oil pumpfor models with nobrake servo CR	027 115 105 C
(20)	gear - oil pump EM,EN,CR	056 115 123 A
(23)	Surge lock EG,EM,EN,FR,GH,JB	055 115 221 B
(3)	guide ring EG,EM,EN,FR,GH,JB,CR	027 115 033
(37)	Oil filter bracket also use: 059 115 721 N 013 807 6 N 016 158 1 CR 059 115 721 N 013 807 6 N 016 158 1	068 115 417 AA
(48)	oil filter CR	068 115 561 B
(9)	Poly V-belt pulley CR	068 115 021 D
1	Intermediate shaft Z=17 EG,EM,EN,FR,GH,JB Z=17	049 115 017 B
10	Washer 12,5 X 28 X 6 EG,EM,EN,FR,GH,JB,CR 12,5 X 28 X 6	056 109 143
11	Hexagon bolt M 12 X 1,50 X 35 M 12 X 1,50 X 35	N 010 137 1
12	oil pump also use: 052 115 189 B GF,GG 052 115 189 B	052 115 105 B
12A	countersunk bolt M 6 X 15 GF,GG M 6 X 15	N 014 226 5
14	Cylinder pin 8 X 16 GF,GG 8 X 16	N 013 212 2
15	Hexagon bolt M 6 X 20 GF,GG M 6 X 20	N 010 217 9
15	Hexagon bolt M 6 X 20 GF,GG M 6 X 20	N 010 217 10
16	Spring washer 6 GF,GG 6	N 012 226 5
16	Spring washer A 6 GF,GG A 6	N 012 227 3
17	housing	056 115 107
18	No longer available	—
19	No longer available	—
19	shaft with gear CR	068 115 115 A
2	gear for drive shaft CR	068 115 027 B
20	gear - oil pump EG,FR,GH,JB	111 115 123 B
21	Oil pump cover	055 115 151 E
22	dowel sleeve EG,EM,EN,FR,GH,JB,CR	056 115 167
23	extractor basket FR,JB,GH,EG,EM,EN,CR	049 115 173 A
24	oil strainer EG,EM,EN,FR,JB,GH,CR	055 115 175 A
26	Hexagon bolt M 6 X 22 M 6 X 22	N 010 222 8
28	Hexagon bolt M 8 X 75 M 8 X 75	N 010 375 10
28	Hexagon bolt M 8 X 75 M 8 X 75	N 010 375 3
29	Seal GF,GG	052 115 189 B
30	suction line GF,GG	036 115 251
31	Seal GF,GG	052 115 257 A
33	Hexagon bolt M 6 X 18 GF,GG M 6 X 18	N 010 216 12
34	Hexagon bolt M 6 X 12 GF,GG M 6 X 12	N 010 212 26
34	Hexagon bolt M 6 X 12 GF,GG M 6 X 12	N 010 212 14
35	Spring washer 6 GF,GG 6	N 012 226 5
37	Oil filter bracket also use: N 013 811 5 N 016 024 1 EM,FR,GH,JB,EN N 013 811 5 N 016 024 1	053 115 417
38	Oil filter bracket EG	067 115 417 B
38A	seal ring 10 X 13,5 10 X 13,5	N 013 811 5
38A	seal ring A 10 X 14 A 10 X 14	N 013 806 4
39	sealing plug M 10 X 1 M 10 X 1	N 016 024 1
4	O-ring 56 X 2 EG,EM,EN,FR,GH,JB,CR 56 X 2	N 903 535 01
41	Socket head bolt with hexagonsocket head (combination) M 8 X 25 EG,EM,EN,FR,JB,GH,CR M 8 X 25	N 090 315 1
42	End cap EG	067 115 423
43	Hexagon bolt M 6 X 20 EG M 6 X 20	N 010 217 10
44A	Pressure spring EG,EM,FR,GH,JB,EN,CR	068 115 421
45	seal ring EG	067 115 427 A
46	Oil temperature controller EG	049 115 429
46A	Spring EG	049 115 437
47	Seal EG,EM,EN,FR,GH,JB,CR	026 115 441 A
48	oil filter EG,EM,EN,FR,GF,GG,GH,JB	056 115 561 G
49	Oil dipstick also use: N 900 322 03 N 011 524 23 N 015 946 1 GF,GG N 900 322 03 N 011 524 23 N 015 946 1	071 115 611 A
50	Oil dipstick EG,EM,EN,FR,GH,JB,CR	055 115 611 F
51	seal ring EG,EM,EN,FR,GH,JB,CR	059 115 625
52	oil pipe GF,GG	052 115 701
53	Connector union GF,GG	052 115 707
54	threaded union	059 115 721
6	Hexagon bolt M 8 X 25 M 8 X 25	N 010 242 22
7	woodruff key 4 X 5 4 X 5	N 012 708 2
8	Shaft oil seal 47 X 10 47 X 10	068 103 085 E
8	Shaft oil seal	068 103 085 A
9	toothed belt pulley EG,EM,EN,FR,GH,JB	049 109 111 C

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1981
Generation region: RDW
Generation code: 026
Factory group: 01 Engine
Factory subgroup: 13000
