Pistonpiston ring — Mk1 Golf Engine (1977 - 1978)

Factory title: Volkswagen Golf (1977 - 1978) - Piston ring. piston

Generation: Mk1 1977 - 1978 (RDW) Group: Engine Rebuild step 1 Parts: 47 Primary OEM: 068 107 065 0 02, 068 107 065 A 0 03, 068 107 065 A 0 01

Pistonpiston ring for the Volkswagen Golf Mk1 (1977 - 1978): factory exploded diagram 5000 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 47 OEM part numbers including 068 107 065 0 02, 068 107 065 A 0 03 and 068 107 065 A 0 01. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 47 OEM part numbers across 47 numbered positions.

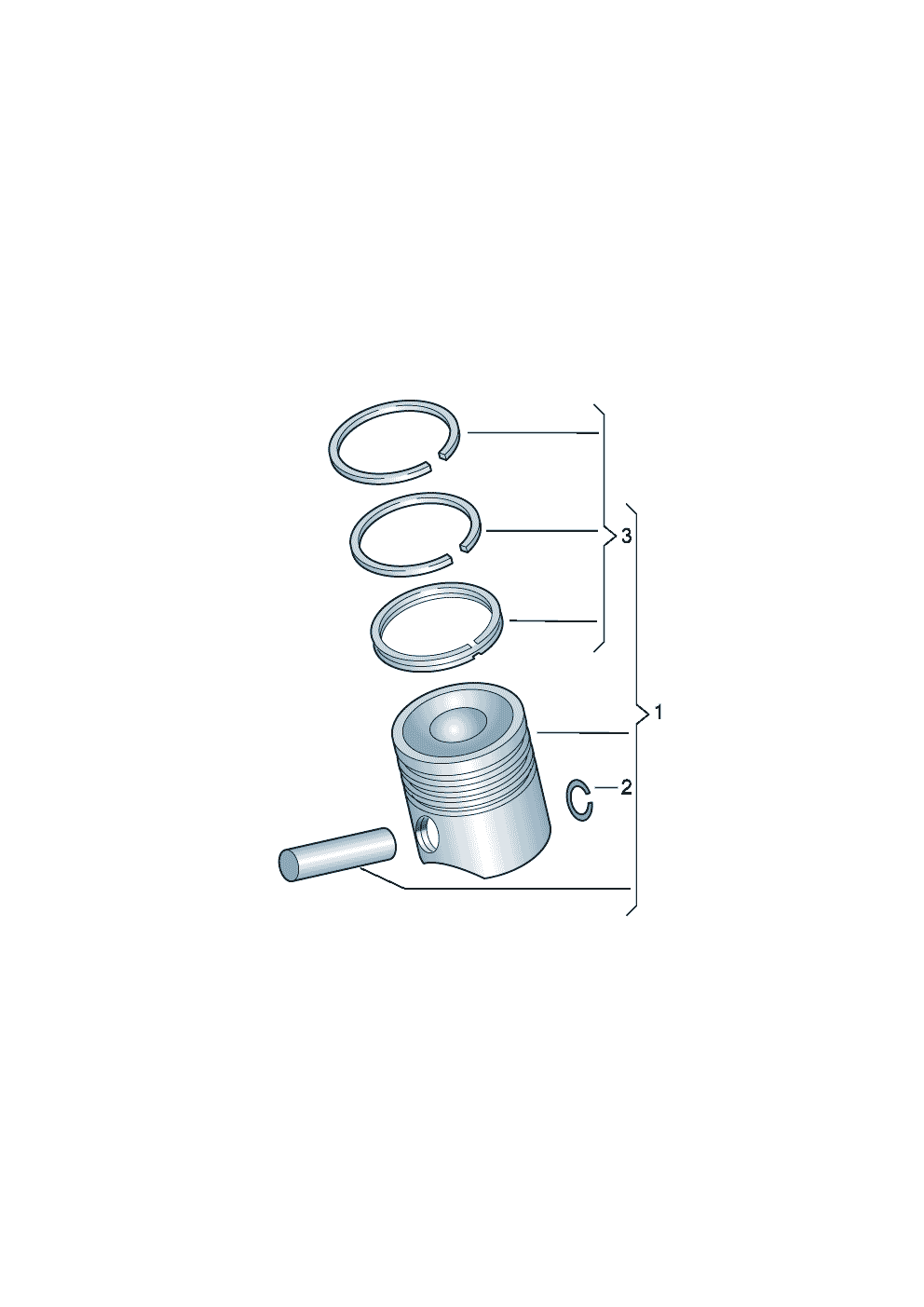

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	green 76,49 76,49	068 107 065 0 02
	pink 76,5 76,5	068 107 065 A 0 03
	blue 76,48 76,48	068 107 065 A 0 01
(1)	piston complete 79,5 EH,JB 79,5	049 107 065 K
(1)	piston complete 69,5 FA,FJ 69,5	052 107 065 AD
(1)	piston complete M CK 024 944>> DIESEL:CK	068 107 065 A
(1)	piston complete(oversize) 77,5 DIESEL 77,5	068 107 091 A
(1)	piston complete 79,5 EG 79,5	049 107 065 T
(1)	piston completerecessed crown piston 79,5 FV 79,5	049 107 065 N
(1)	piston complete(oversize) 77,50 DIESEL:CK 77,50	068 107 091 F
(1)	piston complete(oversize) 79,75 EG 79,75	049 107 071 T
(1)	piston complete(oversize) 79,75 EH,JB 79,75	049 107 071 K
(1)	piston complete(oversize) 79,75 79,75	049 107 071 N
(1)	piston complete(oversize) 69,75 FA,FJ 69,75	052 107 071 AD
(1)	piston complete(oversize) 76,75 DIESEL:CK 76,75	068 107 071 A
(1)	piston complete(oversize) 80 80	049 107 081 T
(1)	piston complete(oversize) 70 FA,FJ 70	052 107 081 AD
(1)	piston complete(oversize)M >> EE 177 000 M >> EF 003 500 M FN 140 935>>M >> FP 290 500 M >> FR 024 945 M >> FT 009 500 80 80	049 107 081 AF
(1)	piston complete(oversize) 80 EH,JB 80	049 107 081 K
(1)	piston complete(oversize) 80 FV 80	049 107 081 N
(1)	piston complete(oversize) 77 DIESEL:CK 77	068 107 081 A
(1)	piston complete(oversize) 77,00 DIESEL:CK 77,00	068 107 081 F
(1)	piston complete(oversize) 80,5 EG 80,5	049 107 091 T
(1)	piston complete(oversize) 80,5 EE,EF,FN,FP 80,5	049 107 091 AF
(1)	piston complete(oversize) 80,5 EH,JB 80,5	049 107 091 K
(1)	piston complete(oversize) 70,5 FA,FJ 70,5	052 107 091 AD
(2)	Securing ring 20 X 1,5 FA,FJ 20 X 1,5	N 012 273 1
(3)	1 set: piston rings(oversize) 77,5 DIESEL:CK 77,5	068 198 157 C
(3)	1 set: piston rings(oversize)M EH 000 001>>M FN 158 217>>M FR 024 946>>M FV 007 898>>M JB 000 001>>M EG 044 995>> 80 80	049 198 155 F
(3)	1 set: piston rings(oversize) 77 DIESEL:CK 77	068 198 155 C
(3)	1 set: piston rings(oversize)M EE 177 000>>M EF 003 500>>M EG 044 964>>M FN 158 216>>M FP 290 500>>M FR 024 945>>M FT 009 500>>M FV 007 897>> 80,5 80,5	049 198 157 A
(3)	1 set: piston rings(oversize)M EH 000 001>>M FN 158 217>>M FR 024 946>>M FV 007 898>>M JB 000 001>> 80,5 80,5	049 198 157 B
(3)	1 set: piston rings(oversize)M EH 000 001>>M FN 158 217>>M FR 024 946>>M FV 007 898>>M JB 000 001>>M EG 044 995>> 80,5 80,5	049 198 157 F
(3)	1 set: piston rings(oversize) 70,50 FA,FJ 70,50	052 198 157 B
(3)	1 set: piston rings 69,5 FA,FJ 69,5	052 198 151 B
(3)	1 set: piston rings 76,5 DIESEL:CK 76,5	068 198 151 C
(3)	1 set: piston rings(oversize)M EG 044 965>>M FN 158 217>>M FR 024 946>>M FV 007 898>> 79,75 EH,JB 79,75	049 198 153 F
(3)	1 set: piston rings(oversize) 69,75 FA,FJ 69,75	052 198 153 B
(3)	1 set: piston rings(oversize) 76,75 DIESEL:CK 76,75	068 198 153 C
(3)	1 set: piston rings(oversize)M >> EE 177 000 M >> EF 003 500 M >> EG 044 964 M >> FN 158 216 M >> FP 290 500 M >> FR 024 945 M >> FT 009 500 M >> FV 007 897 80,00 80,00	049 198 155 A
(3)	1 set: piston rings(oversize)M EH 000 001>>M FN 158 217>>M FR 024 946>>M FV 007 898>>M JB 000 001>> 80,00 80,00	049 198 155 B
1	piston complete M >> CK 024 943 DIESEL:CK	068 107 065
1	piston complete 79,5 EE,EF,EN,FTFP,FR 79,5	049 107 065 AF
2	snap ring 22 X 1,5 EE,EF,EG,EH,FN,FP,FR,FT,FV,JB,DIESEL:CK 22 X 1,5	N 012 278 1
3	1 set: piston rings M >> EE 177 000 M >> EF 003 500 M >> EG 044 964 M >> FN 158 216 M >> FP 290 500 M >> FR 024 945 M >> FT 009 500 M >> FV 007 897 79,50 79,50	049 198 151 A
3	1 set: piston rings M EG 044 965>>M FN 158 217>>M FR 024 946>>M FV 007 898>> 79,5 EH,JB 79,5	049 198 151 F
3	1 set: piston rings(oversize)M >> EE 177 000 M >> EF 003 500 M >> EG 044 964 M >> FN 158 216 M >> FP 290 500 M >> FR 024 945 M >> FT 009 500 M >> FV 007 897 79,75 79,75	049 198 153 A
