Securing parts engine — Mk1 Golf Engine (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Securing parts for engine

Generation: Mk1 1979 - 1980 (RDW) Group: Engine Rebuild step 1 Parts: 42 Primary OEM: 111 129 720, 068 130 173 A, N 010 441 4

Securing parts engine for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 40000 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 41 OEM part numbers across 42 catalogued positions including 111 129 720, 068 130 173 A and N 010 441 4. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 41 OEM part numbers across 42 numbered positions.

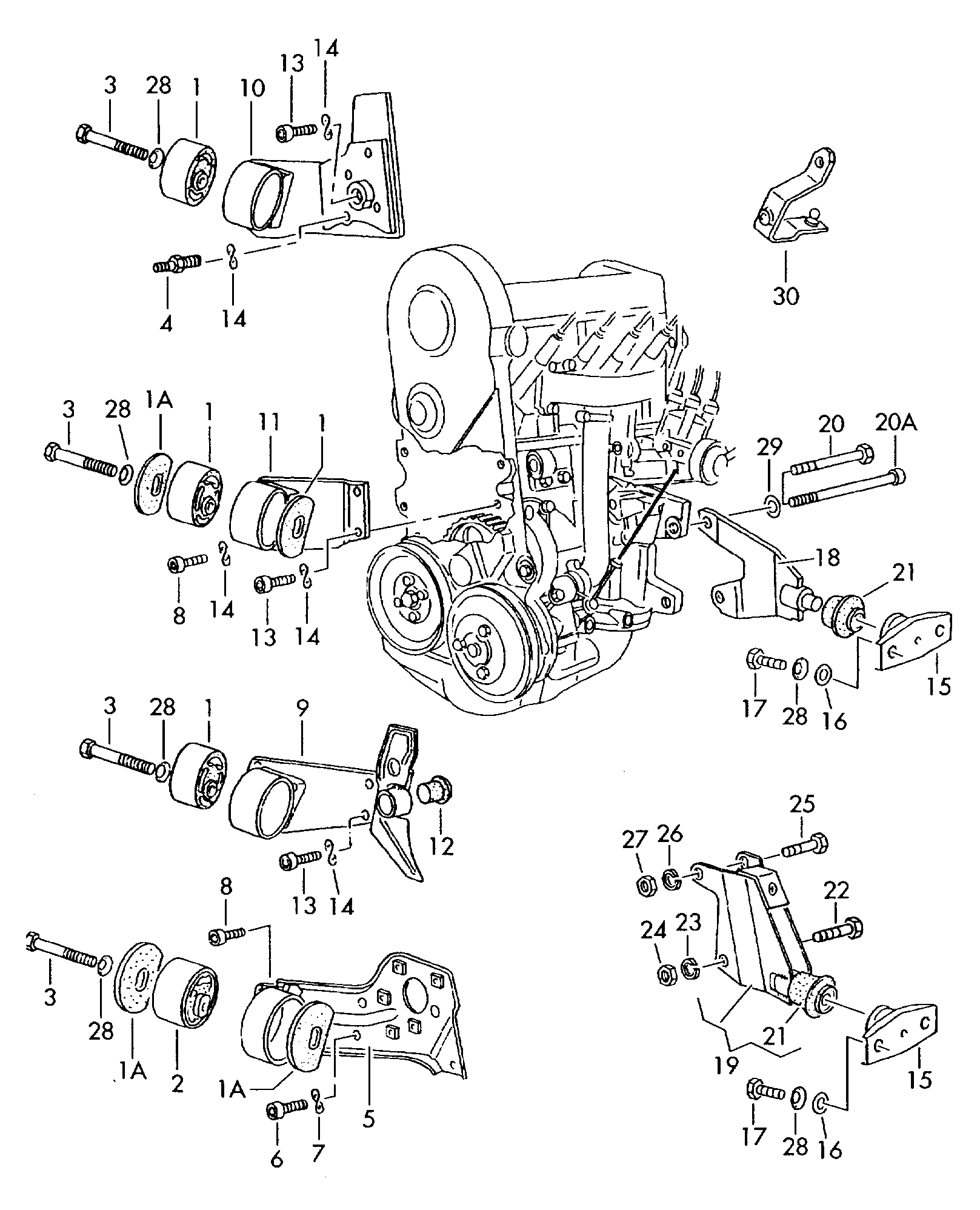

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	securing parts for engine 1.5/1.6 ltr. EG,EH,FN,FV,JB,DIESEL:CK 1.5/1.6 ltr.	—
-	Washer 8,4 8,4	111 129 720
-	arm	068 130 173 A
-	Hexagon bolt M 10 X 42 M 10 X 42	N 010 441 4
-	hexagon nut, self-locking M 8 M 8	N 022 146 4
(1)	Bonded rubber bush F >> 159 2810 000 F >> 179 3750 000 F >> 539 2200 000 64,4 MM EG,EH,FN,FV,JB 64,4 MM	171 199 214 D
(1A)	stop washer 50 X 6 50 X 6	171 199 125
(5)	Engine brackets also use: 068 130 173 AN 010 441 4111 129 720 N 022 146 4 Air cond.+DIESEL:CK 068 130 173 AN 010 441 4111 129 720 N 022 146 4	068 260 831 A
1	Bonded rubber bush F >> 179 3750 000 F >> 539 2200 000 also use: 64,4171 199 125 64,4171 199 125	171 199 214 H
12	Damping sleeve F >> 179 3750 000 F >> 179 3120 000F >> 539 2200 000 F >> 539 2028 000 EG,FN	056 903 147 A
13	Socket head bolt withhexagon socket head M 8 X 22 M 8 X 22	N 014 709 1
14	Spring washer B 8 X 15 B 8 X 15	N 012 241 10
14	Spring washer B 8 X 15 X 0,8 B 8 X 15 X 0,8	N 012 241 11
15	flange	171 199 319 A
16	Shim 11,5 X 29 X 2 11,5 X 29 X 2	111 857 707 A
17	Hexagon bolt M 10 X 25 M 10 X 25	N 010 254 14
18	Support	171 199 329 F
19	Support automatic	171 199 329 E
1A	stop washer 85 X 6 85 X 6	171 199 125 A
2	Bonded rubber bush F 15 A 0800 001>>F 16 A 0000 001>>F 179 3000 001>>F 17 A 0000 001>>F 539 2000 001>>F 53 A 0000 001>> 74,6 EG,EJ,EM,JB,FR,GH,DIESEL:CK 74,6	171 199 214 G
20	Socket head bolt withhexagon socket head M 10 X 135 M 10 X 135	N 044 760 1
20A	Socket head bolt withhexagon socket head M 10 X 150 M 10 X 150	N 044 742 1
21	Stop buffer	171 199 339
22	Hexagon bolt M 12 X 88 M 12 X 88	N 040 333 1
23	spring ring 12 12	N 012 042 4
24	Hexagon nut M 12 M 12	N 011 030 4
25	Hexagon bolt M 10 X 85 M 10 X 85	N 010 472 11
26	spring ring 10 10	N 012 011 3
27	Hexagon nut M 10 M 10	N 011 010 11
27	Hexagon nut M 10 M 10	N 101 552 07
28	Belleville spring	411 399 169
29	Washer 10,5 X 18 X 1,6 10,5 X 18 X 1,6	N 011 560 8
3	Hexagon bolt M 10 X 85 M 10 X 85	N 010 472 11
3	Hexagon bolt M 10 X 85 M 10 X 85	N 010 472 4
30	gearshift lever diesel-industrialengine	171 711 051 C
4	Threaded pin M 8 X 18/M 6 X 21 air condit. M 8 X 18/M 6 X 21	055 199 283
5	Engine brackets 74,6 DIESEL:CK 74,6	068 199 291 A
6	Socket head bolt withhexagon socket head M 8 X 22 M 8 X 22	N 014 709 1
7	Spring washer B 8 X 15 B 8 X 15	N 012 241 10
7	Spring washer B 8 X 15 X 0,8 B 8 X 15 X 0,8	N 012 241 11
8	Socket head bolt withhexagon socket head M 8 X 18 M 8 X 18	N 014 712 3
9	Engine brackets F >> 179 3750 000 F >> 179 3120 000F >> 539 2200 000 F >> 539 2028 000 64,4 EG,FN 64,4	055 199 293 C
