Which VW part numbers are on the toothed belt toothed belt guard diagram for the Mk1 Golf?

This diagram lists 42 OEM part numbers for the Mk1 Golf. The first three are 049 109 188 B, 051 198 119 and N 902 964 01.

Which Mk1 Golf years and engines does this diagram cover?

This plate is from the Mk1 Golf 1979 - 1980 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk1 Golf factory parts catalogue?

The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.

Toothed belt toothed belt guard — Mk1 Golf Engine (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Toothed belt. Toothed belt guard

Generation: Mk1 1979 - 1980 (RDW) Group: Engine Rebuild step 1 Parts: 52 Primary OEM: 049 109 188 B, 051 198 119, N 902 964 01

Toothed belt toothed belt guard for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 6020 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 42 OEM part numbers across 52 catalogued positions including 049 109 188 B, 051 198 119 and N 902 964 01. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 42 OEM part numbers across 52 numbered positions.

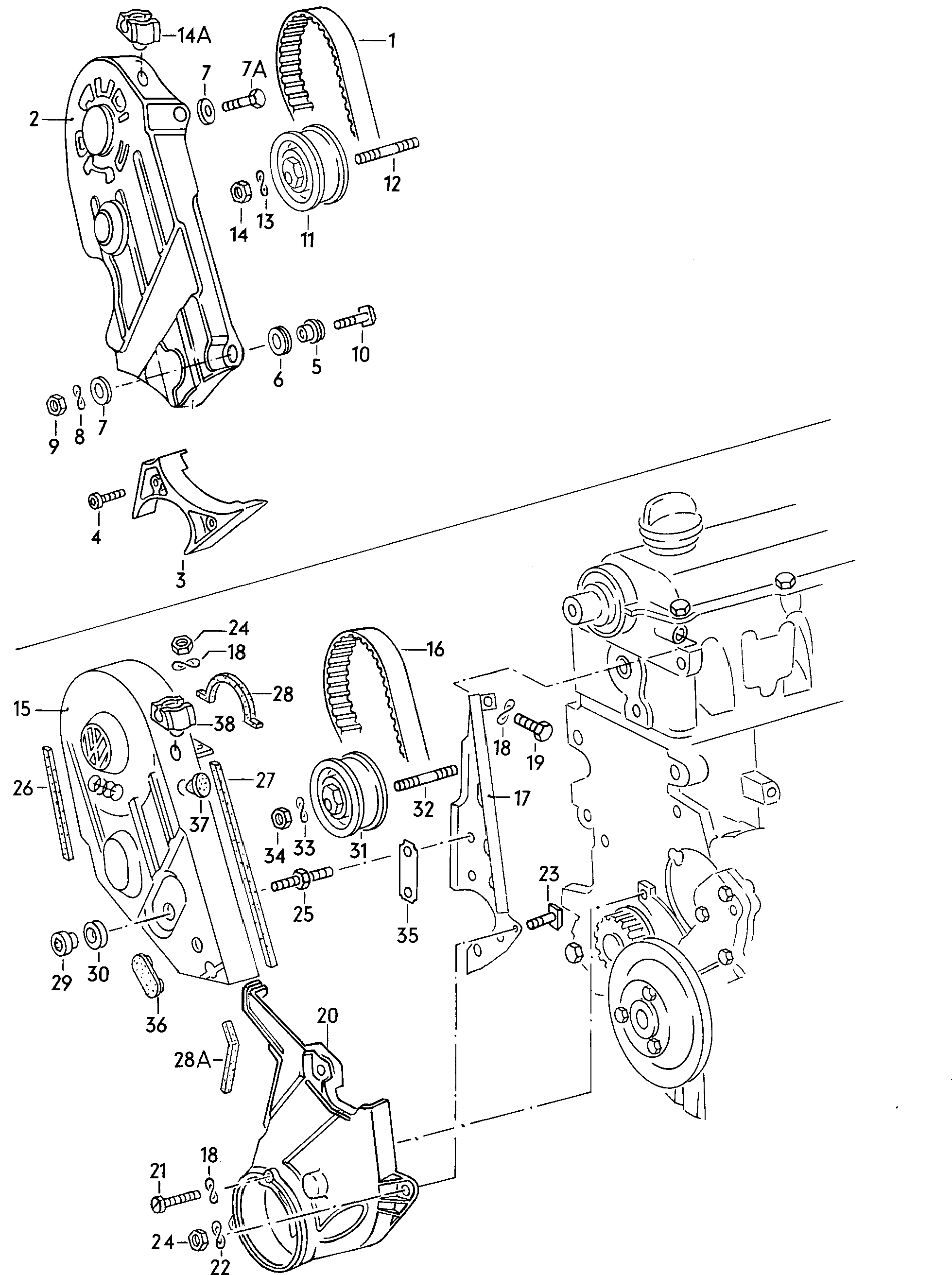

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	toothed belt Toothed belt guard 1.5/1.6 ltr. FN,FR,FV,JB,EG,EH,EJ,EM,FN,FR,FV,JB,GH 1.5/1.6 ltr.	—
	toothed belt Toothed belt guard F >> 179 3196 000 F >> 539 2027 000 1.5/1.6 ltr. EG,EH,FN,FR,FV,JB 1.5/1.6 ltr.	—
-	Sealing strip	049 109 188 B
-	repair kit for toothed beltwith tensioning roller use if required: N 902 964 01 N 902 964 01	051 198 119
(12)	Threaded pin M 10 X 40 M 10 X 40	N 902 964 01
(17)	Cover plate also use: >>539 2034532 >>179 3271338049 109 271 EG,EJ,EM,FNFR >>539 2034532 >>179 3271338049 109 271	055 109 127 A
(2)	No longer available	—
(21)	Hexagon bolt M 6 X 22 M 6 X 22	N 010 222 8
(32)	Threaded pin M 10 X 40 M 10 X 40	N 902 964 01
1	toothed belt Z=121 Z=121	056 109 119 A
10	No longer available M 6 M 6	—
11	Tensioning roller also use: N 902 964 01 N 902 964 01	026 109 243 L
11	Tensioning roller also use: N 902 964 01 N 902 964 01	026 109 243 E
12	Threaded pin M 10 X 53 M 10 X 53	056 103 399
13	Spring washer 10 10	N 012 231 4
14	Hexagon nut M 10 M 10	N 011 133 1
14A	Hose bracket FN,FR,FV,JB	055 127 585
15	Toothed belt guard	055 109 107 B
16	toothed belt Z=121 Z=121	056 109 119 A
17	No longer available EH,FV,JB,GH	—
17	Cover plate	055 109 127
18	Spring washer 6 6	N 012 226 5
19	Hexagon bolt M 6 X 12 M 6 X 12	N 010 212 26
20	Toothed belt guard	049 109 175
21	Socket head bolt withhexagon socket head M 6 X 25 M 6 X 25	N 014 705 3
22	Spring washer 6 6	N 012 226 5
23	t-head screw M 6 X 35 M 6 X 35	N 900 534 01
24	Hexagon nut M 6 M 6	N 011 006 24
25	Threaded pin	049 109 166
26	shorten to: 130 MM 130 MM	—
27	shorten to: 145 MM 145 MM	—
28	shorten to: 215 MM 215 MM	—
28A	shorten to: 105 MM 105 MM	—
29	Collar nut with hexagon socket M 6 M 6	049 109 207
3	No longer available	—
3	Guide	049 109 129
30	Grommet	056 129 669 B
31	Tensioning roller also use: N 902 964 01 N 902 964 01	026 109 243 L
32	Threaded pin M 10 X 53 M 10 X 53	056 103 399
33	Spring washer 10 10	N 012 231 4
34	Hexagon nut M 10 M 10	N 011 133 7
35	Underlay F 159 2800 001>>F 16 A 0000 001>>F 179 3271 339>>F 539 2034 533>> J 20 X 53 EG,EM,EJFN,EG,EM,EJFN,FR,EG,EJ J 20 X 53	049 109 271
36	Bungs	049 109 291 A
37	Bungs 5 X 1 X 11 5 X 1 X 11	N 020 027 1
38	Hose bracket EM,FR	055 127 585
4	Socket head bolt withhexagon socket head M 6 X 35 M 6 X 35	N 014 759 1
5	Bearing bush	056 109 135
6	Grommet	056 129 669 B
7	Washer 7,4 X 22 X 2 7,4 X 22 X 2	N 011 667 2
7A	Hexagon bolt M 6 X 25 M 6 X 25	N 010 218 6
8	Spring washer 6 6	N 012 226 5
9	Hexagon nut M 6 M 6	N 011 006 24

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1979 - 1980
Generation region: RDW
Generation code: 027
Variant tags: petrol_8v_base
Factory group: 01 Engine
Factory subgroup: 6020
