Corrugated pipe front silencer rear silencer diesel — Mk1 Golf Exhaust System (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Exhaust manifolds

Generation: Mk1 1979 - 1980 (RDW) Group: Exhaust system Parts: 29 Primary OEM: 191 253 139 H, N 900 850 01, 059 129 601

Corrugated pipe front silencer rear silencer diesel for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 47020 from the Volkswagen ETKA parts catalogue, group 17 Exhaust system, listing 26 OEM part numbers across 29 catalogued positions including 191 253 139 H, N 900 850 01 and 059 129 601. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 26 OEM part numbers across 29 numbered positions.

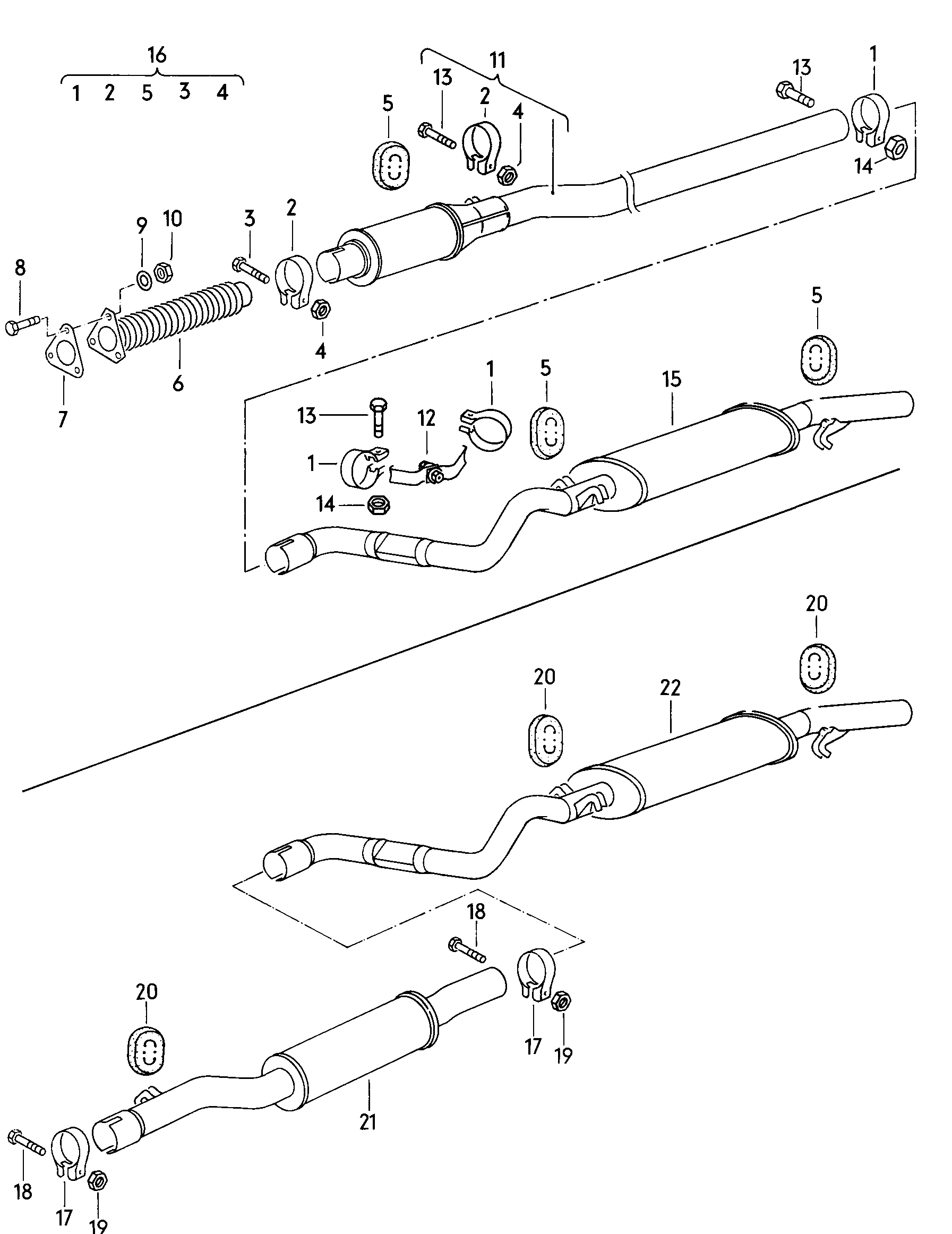

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Front silencer Rear silencer F 17 A 0000 001>> DIESEL:CK	—
	corrugated pipe Front silencer Rear silencer DIESEL:CK	—
	corrugated pipe Front silencer Rear silencer F >> 179 3750 000 DIESEL:CK	—
1	Clamp 45,5 45,5	191 253 139 H
10	hexagon nut, self-locking M 8 M 8	N 900 850 01
10	hexagon nut, self-locking M 8 M 8	059 129 601
11	Front silencer	068 253 209 A
12	Insulation strip for rearsilencer	171 253 491
13	Hexagon bolt M 8 X 50 M 8 X 50	N 040 262 2
14	Hexagon nut M 8 M 8	N 011 008 8
15	Rear silencer also use: 171 253 491 171 253 491	171 253 609 C
16	1 set fixing parts forfront silencer and rearsilencer	171 298 001 B
17	Clamp 45,5 45,5	191 253 139 H
18	Hexagon bolt M 8 X 50 M 8 X 50	N 040 262 2
19	Hexagon nut M 8 M 8	N 011 008 8
2	Clamp 45,5 45,5	191 253 139 H
20	Retaining ring	191 253 147 B
21	Front silencer	161 253 209
22	Rear silencer	171 253 609 C
3	Hexagon bolt M 8 X 50 M 8 X 50	N 040 262 2
4	Hexagon nut M 8 M 8	N 011 008 8
5	Retaining ring	191 253 147 B
5	Retaining ring	823 253 147 A
6	corrugated pipe	055 253 157 A
7	Seal	443 253 115 B
8	Hexagon bolt M 8 X 30 M 8 X 30	N 010 244 21
8	Hexagon bolt M 8 X 30 M 8 X 30	N 010 244 16
9	Washer A 8,4 A 8,4	N 011 525 13
9	Washer A 8,4 X 16 X 1,6 A 8,4 X 16 X 1,6	N 011 525 20

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these exhaust system diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1979 - 1980
Generation region: RDW
Generation code: 027
Variant tags: diesel
Factory group: 17 Exhaust system
Factory subgroup: 47020
