Which VW part numbers are on the emission control versions diagram for the Mk1 Golf?

This diagram lists 18 OEM part numbers for the Mk1 Golf. The first three are 161 253 091 C F FF, 161 253 206 X and 161 253 206.

Which Mk1 Golf years and engines does this diagram cover?

This plate is from the Mk1 Golf 1982 - 1983 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk1 Golf factory parts catalogue?

The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.

Emission control versions — Mk1 Golf Exhaust System (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - Exhaust manifolds

Generation: Mk1 1982 - 1983 (RDW) Group: Exhaust system Parts: 20 Primary OEM: 161 253 091 C F FF, 161 253 206 X, 161 253 206

Emission control versions for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 70030 from the Volkswagen ETKA parts catalogue, group 17 Exhaust system, listing 18 OEM part numbers across 20 catalogued positions including 161 253 091 C F FF, 161 253 206 X and 161 253 206. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 18 OEM part numbers across 20 numbered positions.

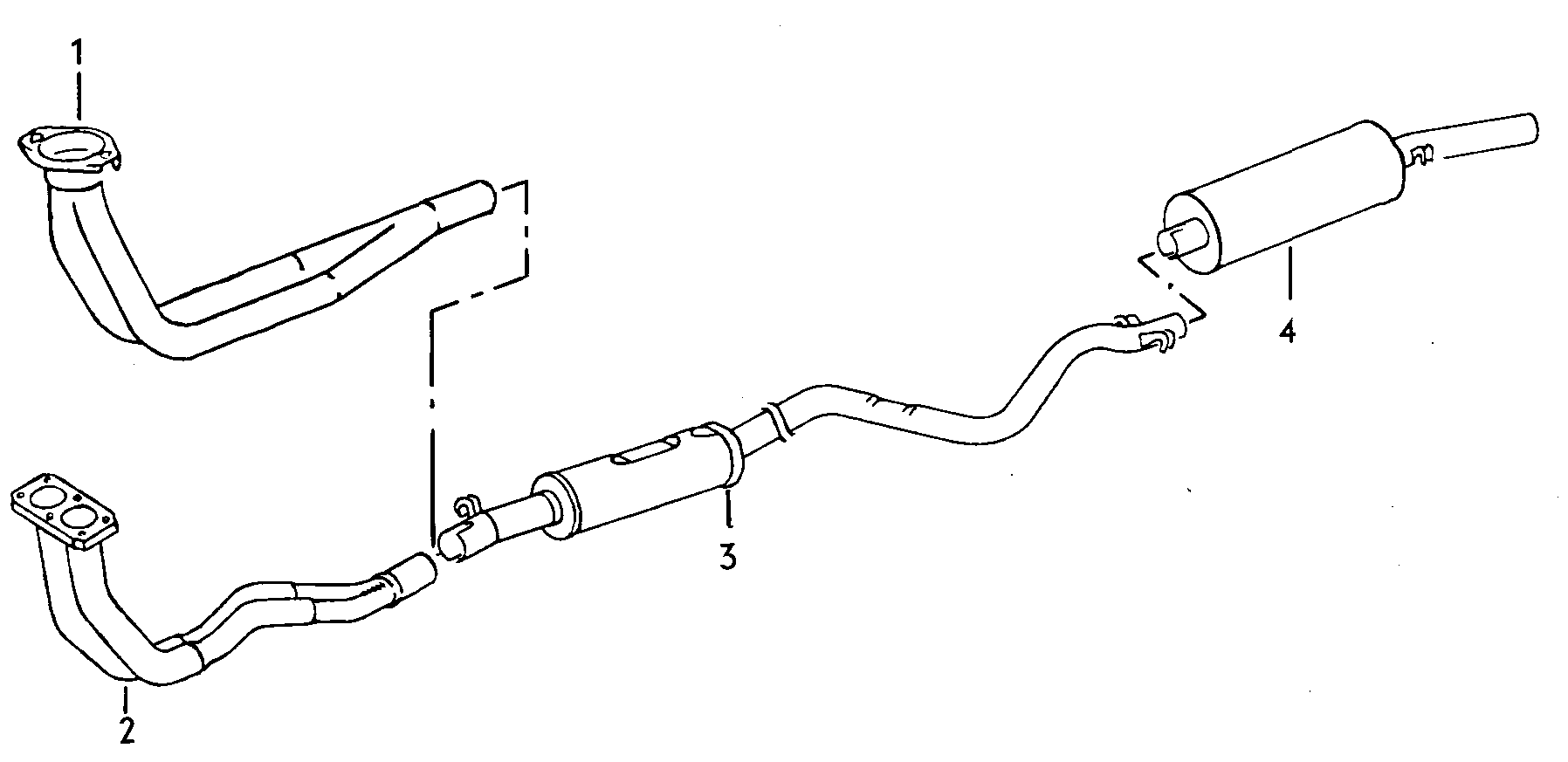

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Exhaust pipe	161 253 091 C F FF
	emission control versions FR,EG,DX,JJ	—
(1)	Exhaust pipe with catalyst(long-life version)For vehicles with retrofittedexhaust gas treatment system JETTA,SCIR.:FR	161 253 206 X
(1)	Exhaust pipe with catalyst(long-life version)For vehicles with retrofittedexhaust gas treatment system JETTA,SCIR.:FR	161 253 206
(3)	Front silencer SCIR.:FR	533 253 209 A
(3)	Front silencer(long-life version)For vehicles with retrofittedexhaust gas treatment system JETTA:"D..":FR	171 253 209 J
(3)	Front silencer(long-life version)For vehicles with retrofittedexhaust gas treatment system SCIR.:FR	533 253 209 Q
(4)	Rear silencer GOLF:DX,JJ	171 253 609 P
(4)	Rear silencer SCIR.:DX	533 253 609 L
(4)	Rear silencer "S.."/SCIR.:JJ	533 253 609 M
(4)	Rear silencer SCIR.:EG	533 253 609 B
(4)	Rear silencer SCIR.:FR	533 253 609 D
(4)	Rear silencer JETTA	161 253 609 G
(4)	Rear silencer "S.."/SCIR.:EG	533 253 609 E
1	Exhaust pipe F 16-E-010 001>>F 17-D-641 910>>F 17-E-010 001>> DX,JJ"D..":DXexportmarkets:DX,JJ	171 253 091 A
2	No longer available	—
2	Exhaust pipe F >> 15-D-050 000 F >> 16-E-010 000 F >> 17-D-641 909 F >> 17-E-010 000 F >> 53-D-100 000 EG,DXEG,DX,JJ,FR"D..":DX,JJexportmarkets:EG,DX,JJEG,DX,JJ,FR	161 253 091 C
2	Exhaust pipe EG,DX,JJ,FR"D..":DX,JJexportmarkets:EG,DX,JJ,FR	161 253 091 C
3	Front silencer EG,DX,JJ,JETTA:FR	171 253 209
4	Rear silencer GOLF:EG	171 253 609 A

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these exhaust system diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1982 - 1983
Generation region: RDW
Generation code: 007
Factory group: 17 Exhaust system
Factory subgroup: 70030
