Which VW part numbers are on the exhaust manifolds diagram for the Mk1 Golf?

This diagram lists 61 OEM part numbers for the Mk1 Golf. The first three are N 016 153 1, N 013 812 8 and 034 133 335 D.

Which Mk1 Golf years and engines does this diagram cover?

This plate is from the Mk1 Golf 1982 - 1983 generation (RDW). The parts on it carry the engine code JK.

Where is the complete Mk1 Golf factory parts catalogue?

The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.

Exhaust manifolds — Mk1 Golf Exhaust System (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - Exhaust manifolds

Generation: Mk1 1982 - 1983 (RDW) Group: Exhaust system Parts: 62 Primary OEM: N 016 153 1, N 013 812 8, 034 133 335 D

Exhaust manifolds for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 70000 from the Volkswagen ETKA parts catalogue, group 17 Exhaust system, listing 61 OEM part numbers across 62 catalogued positions including N 016 153 1, N 013 812 8 and 034 133 335 D. Parts on this plate carry the engine code JK. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 61 OEM part numbers across 62 numbered positions.

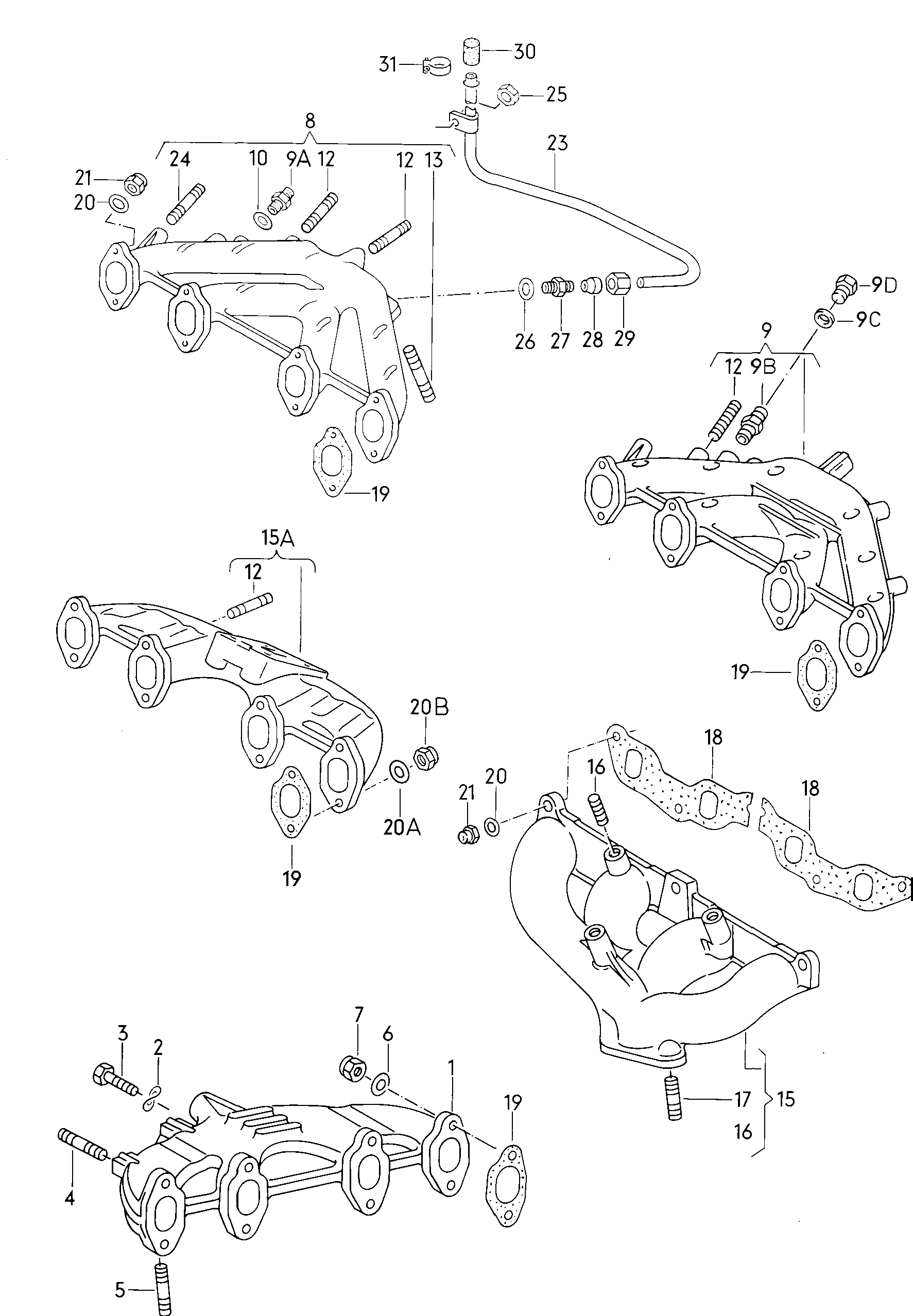

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	sealing plug M 12 X 1,5 M 12 X 1,5	N 016 153 1
-	seal ring 12 X 15,5 X 1,5 12 X 15,5 X 1,5	N 013 812 8
-	Cap closure 7 7	034 133 335 D
-	Cap closure 7 MM 7 MM	030 133 335
(13)	Threaded pin M 8 X 20 "J..":EN M 8 X 20	N 900 082 03
(15)	Exhaust manifolds also use: N 013 812 8 N 016 153 1 GS N 013 812 8 N 016 153 1	030 129 587 J
(23)	Pipe for CO sampling F ..-D-000 001>> also use: 034 133 335 D "J..":EN 034 133 335 D	067 129 701 J
(8)	Exhaust manifolds F >> 15-D-050 000 F >> 16-E-010 000 F >> 17-D-641 909 F >> 17-E-010 000 F >> 53-D-100 000 also use: N 016 027 5 N 013 814 9 EG,DXEG,DX,JJ"D..":EG,DXexportmarkets:EG,DX,JJEG,DX,JJ N 016 027 5 N 013 814 9	067 253 031 AC
(8)	Exhaust manifolds F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999 "J..":EN	067 253 031 K
(8)	Exhaust manifolds FR	055 253 031 E
(8)	Exhaust manifolds F 16-E-010 001>>F 17-D-641 910>>F 17-E-010 001>> also use: N 013 812 8 N 016 153 1 DX,JJ"D..":DXexportmarkets:DX,JJ N 013 812 8 N 016 153 1	027 253 031 BS
(9)	Exhaust manifolds F 15-D-000 001>>F 16-D-000 001>>F 17-D-000 001>>F 53-C-000 001>> "J..":EN	067 253 031 AG
(9A)	connection piece 10 automatic/"J..":EN 10	N 020 802 1
(9A)	threaded union "S..","CH.":JJ	056 129 637
(9B)	threaded union L 10 HN L 10	N 902 370 01
(9B)	connection piece F 15-D-000 001>>F 16-D-000 001>>F 17-D-000 001>>F 53-C-000 001>> 8 "J..":EN 8	N 020 801 2
1	Exhaust manifolds diesel-industrialengine	033 129 591
1	Exhaust manifolds diesel-industrialengine	033 129 587
10	seal ring 14 X 18 X 2,5 14 X 18 X 2,5	N 013 814 4
12	Threaded pin M 8 X 18 T-DIESEL:CY M 8 X 18	N 044 511 3
12	Threaded pin M 8 X 18 M 8 X 18	N 044 511 2
12	Threaded pin M 8 X 18 M 8 X 18	N 044 511 3
12	Threaded pin M 8 X 18 T-DIESEL:CY M 8 X 18	N 044 511 2
13	No longer available M 10 X 22 EG,FR,DX M 10 X 22	—
13	Threaded pin M 10 X 22 EG,FR,DX M 10 X 22	N 900 146 01
15	Exhaust manifolds GF,GG	052 129 587 E
15A	Exhaust manifolds T-DIESEL:CY	068 253 031 D
16	Threaded pin M 6 X 21 GF,GG,GS M 6 X 21	N 014 542 1
17	Threaded pin M 8 X 25 GF,GG,GS M 8 X 25	N 044 514 5
18	Seal GF,GG	030 253 039 A
19	Seal	028 129 589 B
2	Spring washer 8 X 15 X 0,5 8 X 15 X 0,5	N 012 229 3
20	Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6	N 011 558 11
20A	Washer 8,4 X 15 X 4 T-DIESEL:CY 8,4 X 15 X 4	N 900 955 01
20B	Hexagon collar nutself-locking M 8 T-DIESEL:CY M 8	N 902 002 01
21	hexagon nut, self-locking M 8 M 8	059 129 601
21	hexagon nut, self-locking M 8 M 8	N 900 850 01
23	Pipe for CO sampling F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999 F >> 53-C-100 000 "J..":EN	067 129 701 E
24	Threaded pin M 8 X 18 M 8 X 18	N 044 511 3
24	Threaded pin M 8 X 18 M 8 X 18	N 044 511 2
25	hexagon nut, self-locking M 8 "J..":EN M 8	N 900 850 01
25	hexagon nut, self-locking M 8 "J..":EN M 8	059 129 601
26	seal ring 12 X 15,5 X 1,5 "J..":EN 12 X 15,5 X 1,5	N 013 812 8
27	connection piece 8 "J..":EN 8	N 020 801 2
28	die ring L 8 "J..":EN L 8	N 020 821 1
28	die ring 8 "J..":EN 8	N 020 829 2
29	Union nut 8 "J..":EN 8	N 021 022 2
3	Hexagon bolt M 8 X 12 M 8 X 12	N 010 237 6
30	Cap closure 10 "J..":EN 10	067 133 335 A
31	Clamp 12-22 X 9 X 0,4 12-22 X 9 X 0,4	N 102 582 01
31	Hose clamp AL 12-22 AL 12-22	N 024 509 4
4	Threaded pin M 8 X 18 M 8 X 18	N 044 511 2
4	Threaded pin M 8 X 18 M 8 X 18	N 044 511 3
5	Threaded pin M 8 X 25 M 8 X 25	N 044 514 5
6	Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6	N 011 558 11
7	hexagon nut, self-locking M 8 M 8	N 900 850 01
7	hexagon nut, self-locking M 8 M 8	059 129 601
9	Exhaust manifolds also use: N 013 814 9 N 902 889 01 JB,GH,EM,EWHN,DIESEL:CR,JK N 013 814 9 N 902 889 01 JK	055 253 031 T
9A	threaded unionfor manual gearbox F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999 "J..":EN	049 129 637
9B	threaded union Automatic+EM	056 129 637
9C	seal ring 14 X 18 X 1,5 JB,GH,EM,EW,DIESEL:CR,JK 14 X 18 X 1,5 JK	N 013 814 9
9D	oil drain plug M 14 X 1,5 X 16 JB,GH,EM,EW,DIESEL:CR,JK M 14 X 1,5 X 16 JK	N 902 889 01

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these exhaust system diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1982 - 1983
Generation region: RDW
Generation code: 007
Engine codes on this plate: JK
Variant tags: diesel_turbo
Factory group: 17 Exhaust system
Factory subgroup: 70000
