Exhaust pipe front — Mk1 Golf Exhaust System (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - Exhaust manifolds

Generation: Mk1 1982 - 1983 (RDW) Group: Exhaust system Parts: 76 Primary OEM: 161 253 091 C F FF, 052 103 377, N 012 230 7

Exhaust pipe front for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 72000 from the Volkswagen ETKA parts catalogue, group 17 Exhaust system, listing 75 OEM part numbers across 76 catalogued positions including 161 253 091 C F FF, 052 103 377 and N 012 230 7. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 75 OEM part numbers across 76 numbered positions.

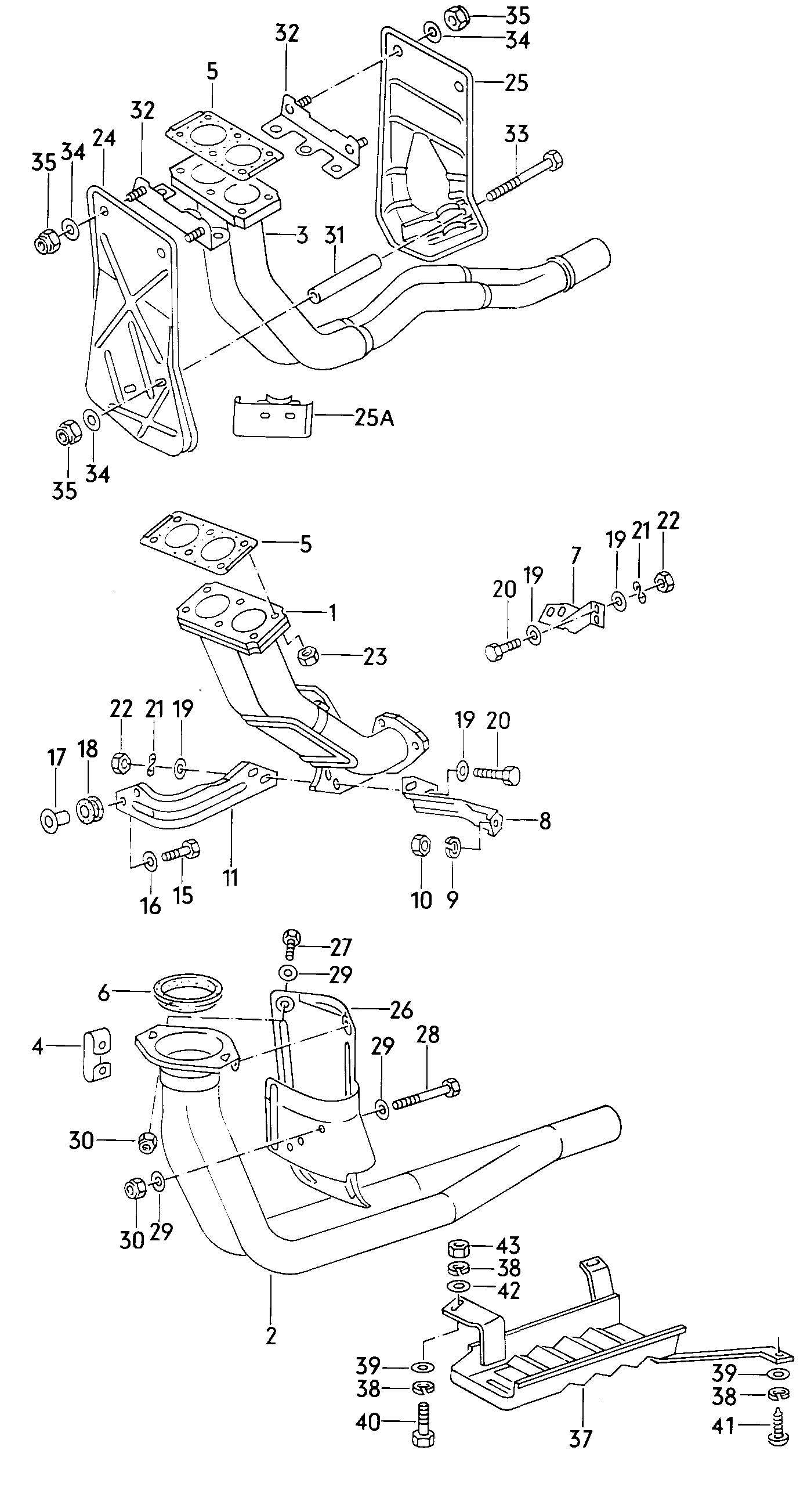

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Exhaust pipe	161 253 091 C F FF
	Exhaust pipe front EG,DX,JJ,EM,EN,FR,JB,GH,EW,HN front	—
-	Washer F >> 15-C-050 000 F >> 16-C-999 999 10,5 "J..":EN 10,5	052 103 377
-	Spring washer F >> 15-C-050 000 F >> 16-C-999 999 10 "J..":EN 10	N 012 230 7
(1)	Exhaust pipe F >> 16-C-999 999 "J..":EN	055 253 091 N
(11)	Bracket F >> 15-C-050 000 F >> 16-C-999 999 "J..":EN	055 253 197 C
(2)	Exhaust pipe F 15-D-000 001>>F 16-D-000 001>>F 17-D-000 001>>F 53-C-000 001>> "J..":EN	533 253 091
(2)	Exhaust pipe with catalyst(long-life version)For vehicles with retrofittedexhaust gas treatment system(conversion : >> 12/89 ) JB	171 253 206
(2)	Exhaust pipe F 15-D-000 001>>F 16-D-000 001>>F 17-D-000 001>>F 53-C-000 001>> "J..":EN	533 253 091 E
(2)	Exhaust pipe for cat. conv.:For vehicles with retrofittedexhaust gas treatment system 175 131 701 JB,SCIR.:EW 175 131 701	533 253 091 E
(2)	Exhaust pipe F 16-E-010 001>>F 17-D-641 910>>F 17-E-010 001>> DX,JJ"D..":DXexportmarkets:DX,JJ	171 253 091 A
(2)	Exhaust pipe with catalyst(long-life version)For vehicles with retrofittedexhaust gas treatment system(conversion : >> 12/89 ) JB	171 253 206 X
(23)	hexagon nut, self-locking M 10 EG,DX,JJ,FR M 10	N 900 876 02
(23)	hexagon nut, self-locking M 10 EG,DX,JJ,FR M 10	N 102 090 05
(26)	Heat shield F 15-D-000 001>>F 16-D-000 001>>F 17-D-000 001>>F 53-C-000 001>> "J..":EN	161 253 701 A
(26)	Heat shield for cat. conv.:For vehicles with retrofittedexhaust gas treatment system 175 131 701 JB,SCIR.:EW 175 131 701	161 253 701 A
(3)	Exhaust pipe with catalyst(long-life version)For vehicles with retrofittedexhaust gas treatment system JETTA,SCIR.:FR	161 253 206
(3)	Exhaust pipe with catalyst(long-life version)For vehicles with retrofittedexhaust gas treatment system JETTA,SCIR.:FR	161 253 206 X
(32)	Retaining bracket F >> 16-C-999 999 F >> 17-C-999 999 "J..":EN	055 253 711
(33)	Hexagon bolt F >> 16-C-999 999 F >> 17-C-999 999 M 6 X 75 "J..":EN M 6 X 75	N 010 311 4
(5)	Seal For vehicles with retrofittedexhaust gas treatment system JETTA,SCIR.:FR	055 253 115 A
(5)	Seal F >> 15-D-050 000 F >> 16-E-010 000 F >> 17-D-641 909 F >> 17-E-010 000 EG,DX,JJEG,DX,JJ,FR"D..":DX,JJexportmarkets:EG,DX,JJ	055 253 115 A
1	Exhaust pipe F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999 "J..":EN	055 253 091 M
10	Hexagon nut M 10 M 10	N 011 010 11
10	Hexagon nut M 10 M 10	N 101 552 07
11	Bracket F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999 "J..":EN	055 253 193
15	Hexagon bolt M 10 X 25 M 10 X 25	N 010 254 14
16	Washer	211 415 939
17	spacer bush F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999 "J..":EN	055 253 205
18	Grommet F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999 15,5 X 19,5 X 5 "J..":EN 15,5 X 19,5 X 5	N 900 460 01
19	Washer A 8,4 A 8,4	N 011 525 13
19	Washer A 8,4 X 16 X 1,6 A 8,4 X 16 X 1,6	N 011 525 20
2	Exhaust pipe JB,GH,EM,EW,HN	171 253 091 E
20	Hexagon bolt M 8 X 25 M 8 X 25	N 010 242 22
21	Spring washer B 8 X 15 B 8 X 15	N 012 241 10
21	Spring washer B 8 X 15 X 0,8 B 8 X 15 X 0,8	N 012 241 11
22	hexagon nut, self-locking M 8 M 8	N 022 146 4
22	hexagon nut, self-locking M 8 M 8	803 253 111
23	hexagon nut, self-locking F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999 M 8 "J..":EN M 8	N 022 146 4
24	Heat shield EG,DX,JJ,FR	055 253 701 A
25	Heat shield EG,DX,JJ,FR	055 253 701 B
25A	Heat shield F >> 16-C-999 999 F >> 17-C-999 999 "J..":EN	055 253 701 C
26	Heat shield JB,GH,EM,EW,HN	161 253 701
27	Hexagon bolt M 6 X 15 M 6 X 15	N 010 215 27
27	Hexagon bolt M 6 X 15 M 6 X 15	N 010 215 13
28	Hexagon bolt M 6 X 75 M 6 X 75	N 010 311 4
29	Washer B 6,1 X 18 X 2 B 6,1 X 18 X 2	N 011 666 10
29	Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6	N 011 666 15
3	Exhaust pipe F >> 15-D-050 000 F >> 16-E-010 000 F >> 17-D-641 909 F >> 17-E-010 000 F >> 53-D-100 000 EG,DX,JJEG,DX,JJ,FR"D..":DX,JJexportmarkets:EG,DX,JJEG,DX,JJ,FR	161 253 091 C
30	hexagon nut, self-locking M 6 M 6	N 022 148 1
30	hexagon nut, self-locking M 6 M 6	N 022 148 11
31	Spacer pipe 10 X 1,5 X 61,5 EG,DX,JJ,FR 10 X 1,5 X 61,5	171 253 709
32	Retaining bracket EG,DX,JJ,FR	055 253 711 A
33	Hexagon bolt M 6 X 80 EG,DX,JJ,FR M 6 X 80	N 040 302 1
34	Washer 6,4 X 12,5 X 1,6 6,4 X 12,5 X 1,6	N 011 524 23
34	Washer 7 X 12 X 1,6 7 X 12 X 1,6	N 012 207 1
35	hexagon nut, self-locking M 6 M 6	N 022 148 1
35	hexagon nut, self-locking M 6 M 6	N 022 148 11
38	spring ring 6 JB 6	N 012 006 4
39	Washer 6,4 X 11 X 1,6 6,4 X 11 X 1,6	N 011 557 2
4	Clamp spring	161 253 111
40	Hexagon bolt M 6 X 30 M 6 X 30	N 010 220 12
40	Hexagon bolt M 6 X 30 M 6 X 30	N 010 220 3
41	hexagon head panel screw 6,3 X 13 6,3 X 13	N 013 890 5
42	Washer A 6,4 X 12,5 X 1,6 A 6,4 X 12,5 X 1,6	N 011 524 7
42	Washer 6,4 X 12,5 X 1,6 6,4 X 12,5 X 1,6	N 011 524 23
43	Hexagon nut M 6 M 6	N 011 006 24
43	Hexagon nut M 6 M 6	N 011 006 8
5	Seal F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999 F >> 53-C-100 000 "J..":EN	841 253 115 B
5	Seal Automatic+FR	841 253 115 B
6	1 set of slip ring with clampsprings for front exhaust pipe JB,GH,EM,EW,HN	161 298 115
6	1 set of slip ring with clampsprings for front exhaust pipe F 15-D-000 001>>F 16-D-000 001>>F 17-D-000 001>>F 53-C-000 001>> "J..":EN	161 298 115
6	1 set of slip ring with clampsprings for front exhaust pipe F 16-E-010 001>>F 17-D-641 910>>F 17-E-010 001>> DX,JJ"D..":DXexportmarkets DX,JJ	161 298 115
7	Support F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999 F >> 53-C-100 000 Automatic+EN	055 253 187 A
8	Supportfor manual gearbox F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999 "J..":EN	055 253 187 B
9	spring ring 10 10	N 012 011 3
