Exhaust pipe intermediate pipe front silencer front — Mk1 Golf Exhaust System (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - Exhaust manifolds

Generation: Mk1 1982 - 1983 (RDW) Group: Exhaust system Parts: 56 Primary OEM: 171 298 028, 171 298 028 CC, 171 298 028 CA

Exhaust pipe intermediate pipe front silencer front for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 71000 from the Volkswagen ETKA parts catalogue, group 17 Exhaust system, listing 55 OEM part numbers across 56 catalogued positions including 171 298 028, 171 298 028 CC and 171 298 028 CA. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 55 OEM part numbers across 56 numbered positions.

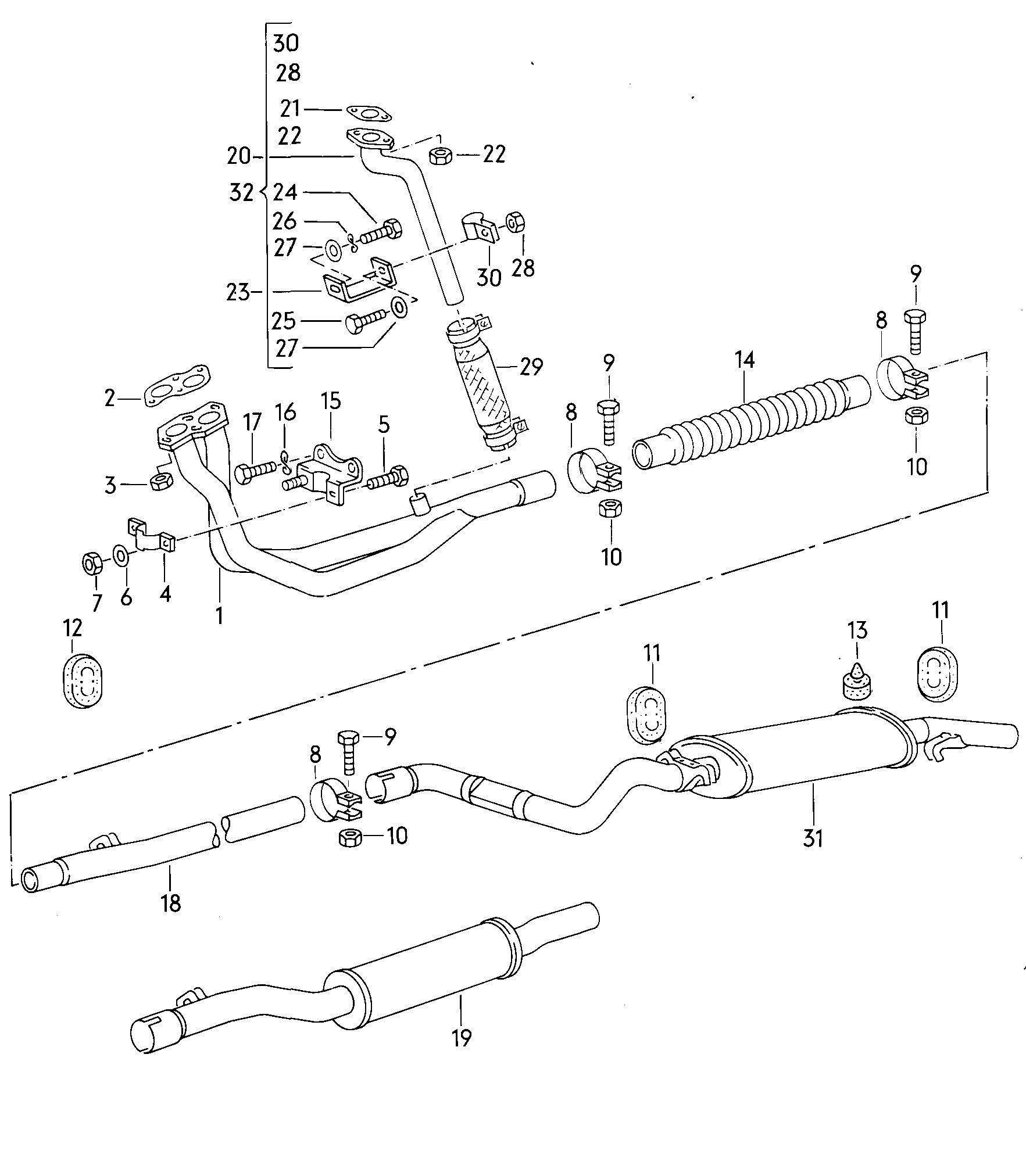

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Exhaust pipe Intermediate pipe Front silencer front GF,GG,GS front	—
-	Cat. converter retrofit kit(conversion : 01/90 >> 12/95 ) GOLF/JETTA:GG	171 298 028
-	Cat. converter retrofit kit(conversion : 01/90 >> 12/95 ) SCIR.:GF	171 298 028 CC
-	Cat. converter retrofit kit(conversion : 01/90 >> 12/95 ) GOLF/JETTA:GF	171 298 028 CA
(1)	Exhaust pipe with catalyst(long-life version)For vehicles with retrofittedexhaust gas treatment system GF	861 253 206 X
(1)	Exhaust pipe with catalyst(long-life version)For vehicles with retrofittedexhaust gas treatment system M >> GG 799 999	861 253 206 X
(1)	Exhaust pipe with catalyst(long-life version)For vehicles with retrofittedexhaust gas treatment system GF,GG	171 253 208
(1)	Exhaust pipe with catalyst(long-life version)For vehicles with retrofittedexhaust gas treatment system GF,GG	171 253 208 X
(12)	Retaining ringfor vehicles with retro-fittedunregulated emission controlsystem(conversion : 01/90 >> 12/95 ) GOLF,JETTAGG,GFSCIR.:GF	171 253 147
(12)	Retaining ringfor rear mufflerfor rear muffler JETTA:GGJETTA:GF,GS	861 253 147
(12)	Retaining ringfor rear mufflerfor rear muffler JETTA:GGJETTA:GF,GS	893 253 147 F
(12)	Retaining ringfor vehicles with retro-fittedunregulated emission controlsystem(conversion : 01/90 >> 12/95 ) GOLF,JETTAGG,GFSCIR.:GF	8A0 253 147 A
(18)	Exhaust pipe(long-life version)For vehicles with retrofittedexhaust gas treatment system M >> GG 799 999	171 253 201 B
(19)	Front silencer(long-life version)For vehicles with retrofittedexhaust gas treatment system GF	171 253 209 H
(31)	Rear silencer SCIR.	533 253 609 A
(31)	Rear silencer JETTA	161 253 609 F
(8)	Clamp 45,5 GOLF,JETTA: 45,5	191 253 139 H
(8)	Clampfor vehicles with retro-fittedunregulated emission controlsystem(conversion : 01/90 >> 12/95 ) 45,5 GOLF,JETTA:GG,GFSCIR.:GF 45,5	191 253 139 H
1	Exhaust pipe	861 253 101 AD
1	Exhaust pipe with catalyst(long-life version)For vehicles with retrofittedexhaust gas treatment system M >> GG 799 999	861 253 206
10	Hexagon nut M 8 M 8	N 011 008 8
11	Retaining ringfor rear muffler GOLF,SCIR.	8A0 253 147 A
11	Retaining ringfor rear muffler GOLF,SCIR.	803 253 147
12	Retaining ringfor intermediate pipefor rear mufflerfor front silencer GOLF,SCIR.:GF,GG;JETTA:GGJETTA:GF,GSJETTA:GF,GS	4A0 253 147 A
12	Retaining ringfor intermediate pipefor rear mufflerfor front silencer GOLF,SCIR.:GF,GG;JETTA:GGJETTA:GF,GSJETTA:GF,GS	823 253 147 A
13	Stop buffer JETTA	803 253 149
14	corrugated pipe(long-life version)	867 253 177
15	Bracket	171 253 193
16	Spring washer B 8 X 15 B 8 X 15	N 012 241 10
16	Spring washer B 8 X 15 X 0,8 B 8 X 15 X 0,8	N 012 241 11
17	Hexagon bolt M 8 X 15 M 8 X 15	N 010 238 20
18	Intermediate pipe GG	171 253 201 C
19	Front silencer GF,GS	171 253 209 A
2	Seal(asbestos free)	036 253 115 A
20	Connecting pipe	861 253 533 A
21	Seal(asbestos free)	861 253 539 A
22	hexagon nut, self-locking M 8 M 8	N 022 146 4
23	Support	861 253 541
24	Hexagon bolt M 8 X 18 M 8 X 18	N 010 239 11
25	Hexagon bolt M 8 X 28 M 8 X 28	N 010 233 6
26	Spring washer B 8 X 15 X 0,8 B 8 X 15 X 0,8	N 012 241 11
26	Spring washer B 8 X 15 B 8 X 15	N 012 241 10
27	Washer A 8,4 X 16 X 1,6 A 8,4 X 16 X 1,6	N 011 525 20
27	Washer A 8,4 A 8,4	N 011 525 13
28	Hexagon nut M 8 M 8	N 011 008 8
29	corrugated pipe	861 253 543 A
3	hexagon nut, self-locking M 8 M 8	N 022 146 4
30	Clamp	861 253 545 A
31	Rear silencer GOLF	171 253 609 C
4	arm	036 253 127
5	Hexagon bolt M 8 X 22 M 8 X 22	N 010 241 18
5	Hexagon bolt M 8 X 22 M 8 X 22	N 010 241 15
6	Washer A 8,4 A 8,4	N 011 525 13
6	Washer A 8,4 X 16 X 1,6 A 8,4 X 16 X 1,6	N 011 525 20
7	hexagon nut, self-locking M 8 M 8	N 022 146 4
9	Hexagon bolt M 8 X 50 M 8 X 50	N 010 350 6
