Which Mk1 Golf years and engines does this diagram cover?

This plate is from the Mk1 Golf 1982 - 1983 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk1 Golf factory parts catalogue?

The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.

Rear silencer intermediate pipe catalytic converter — Mk1 Golf Exhaust System (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - Exhaust manifolds

Generation: Mk1 1982 - 1983 (RDW) Group: Exhaust system Parts: 48 Primary OEM: 025 251 509 A, 191 131 701 AX, 533 253 201

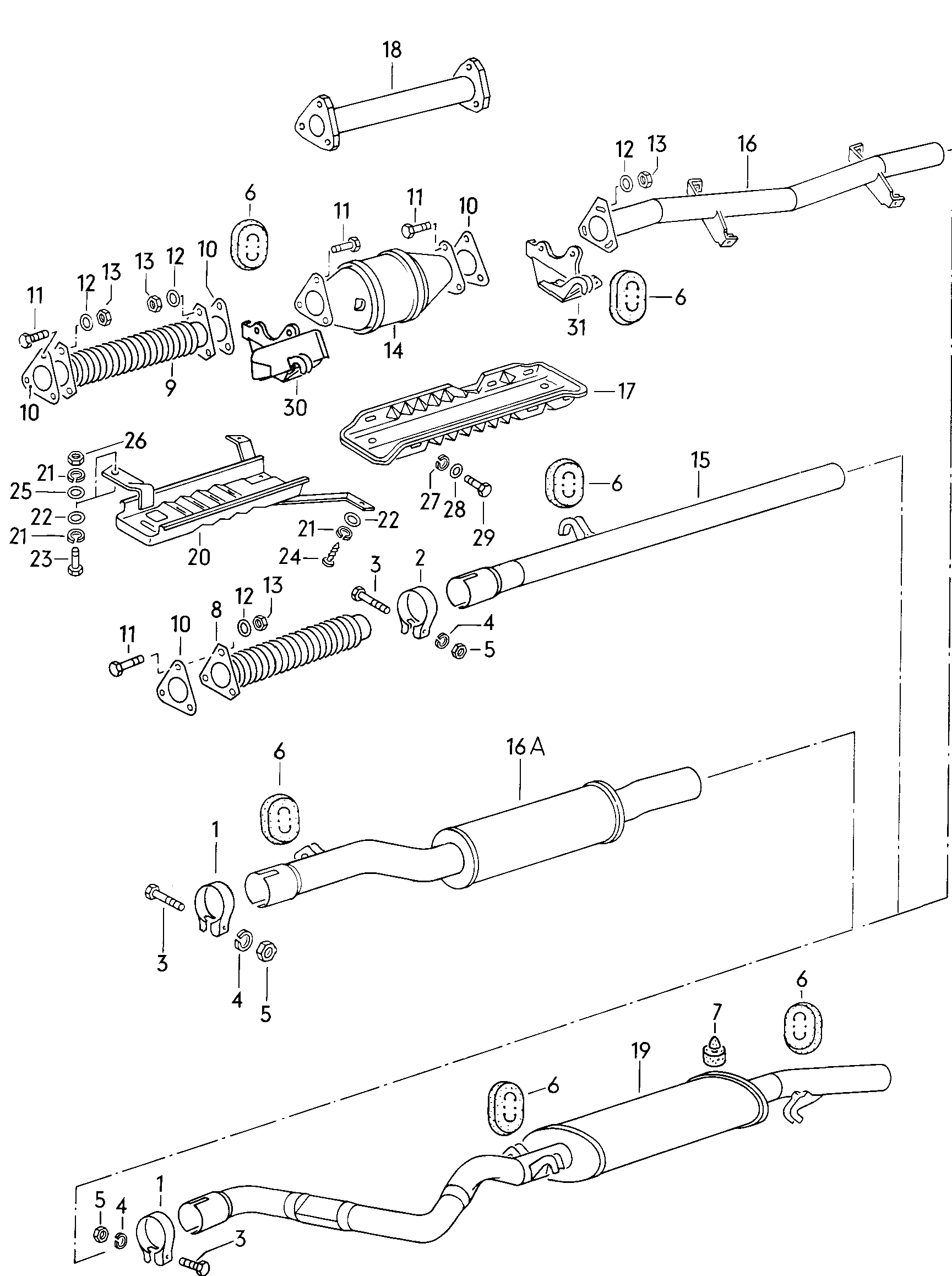

Rear silencer intermediate pipe catalytic converter for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 75000 from the Volkswagen ETKA parts catalogue, group 17 Exhaust system, listing 47 OEM part numbers across 48 catalogued positions including 025 251 509 A, 191 131 701 AX and 533 253 201. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 47 OEM part numbers across 48 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Rear silencer Intermediate pipe Catalytic converter K-JETRONIC"J..":EN	—
(10)	Seal F 15-D-000 001>>F 16-D-000 001>>F 17-D-000 001>>	025 251 509 A
(14)	Catalytic converter	191 131 701 AX
(16)	Intermediate pipe F 15-D-000 001>>F 16-D-000 001>>F 17-D-000 001>>F 53-C-000 001>>	533 253 201
(19)	Rear silencer SCIR.	533 253 609 A
(19)	Rear silencer JETTA	161 253 609 F
(6)	Retaining ring	171 253 147 G
(6)	Retaining ringfor rear muffler JETTA	861 253 147
(6)	Retaining ring	893 253 147 D
(6)	Retaining ringfor rear muffler JETTA	893 253 147 F
1	Clamp 45,5 45,5	191 253 139 H
10	Seal F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999	443 253 115 B
11	Hexagon bolt M 8 X 30 M 8 X 30	N 010 244 16
11	Hexagon bolt M 8 X 30 M 8 X 30	N 010 244 21
12	Washer A 8,4 A 8,4	N 011 525 13
12	Washer A 8,4 X 16 X 1,6 A 8,4 X 16 X 1,6	N 011 525 20
13	hexagon nut, self-locking M 8 M 8	N 022 146 4
13	hexagon nut, self-locking M 8 M 8	803 253 111
14	Catalytic converter	191 131 701 A
16	Intermediate pipe F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999	055 253 201 G
17	Guard plate	810 253 243
18	Intermediate pipefor vehicles only asreplacement for the catalyst	055 253 405 D
19	Rear silencer GOLF	171 253 609 C
20	Guard plate	171 253 731
21	spring ring 6 6	N 012 006 4
22	Washer 6,4 X 12,5 X 1,6 6,4 X 12,5 X 1,6	N 011 524 23
22	Washer A 6,4 X 12,5 X 1,6 A 6,4 X 12,5 X 1,6	N 011 524 7
23	Hexagon bolt M 6 X 30 M 6 X 30	N 010 220 3
23	Hexagon bolt M 6 X 30 M 6 X 30	N 010 220 12
24	hexagon head panel screw 6,3 X 13 6,3 X 13	N 013 890 5
25	Washer 6,4 X 11 X 1,6 6,4 X 11 X 1,6	N 011 557 2
26	Hexagon nut M 6 M 6	N 011 006 8
26	Hexagon nut M 6 M 6	N 011 006 24
27	spring ring 6 6	N 012 006 4
28	Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6	N 011 666 15
28	Washer B 6,1 X 18 X 2 B 6,1 X 18 X 2	N 011 666 10
29	Hexagon bolt M 6 X 12 M 6 X 12	N 010 212 26
29	Hexagon bolt M 6 X 12 M 6 X 12	N 010 212 14
3	Hexagon bolt M 8 X 50 M 8 X 50	N 040 262 2
30	Reinforcement for guard plate	171 253 729
31	Reinforcement	810 253 453
4	spring ring 8 8	N 012 038 8
4	spring ring 8 8	N 012 038 7
5	Hexagon nut M 8 M 8	N 011 008 8
6	Retaining ring	171 253 147
6	Retaining ring	8A0 253 147 A
7	Stop buffer JETTA	803 253 149
9	corrugated pipe F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999	055 253 157 B

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these exhaust system diagrams are drawn from.

Mk2 Golf 16v Kjet Engine - - best they produced? What do you think? The 1980’s hot hatch — the Mk2 Golf 16v engine was the highest volume production Mk2 Golf Volkswagen released.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1982 - 1983
Generation region: RDW
Generation code: 007
Factory group: 17 Exhaust system
Factory subgroup: 75000
