Which VW part numbers are on the bodywork front part diagram for the Mk1 Golf?

This diagram lists 60 OEM part numbers for the Mk1 Golf. The first three are 161 805 633 A, 171 803 273 and 036 199 181.

Which Mk1 Golf years and engines does this diagram cover?

This plate is from the Mk1 Golf 1979 - 1980 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk1 Golf factory parts catalogue?

The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.

Bodywork front part — Mk1 Golf Front Body (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Bodywork front part

Generation: Mk1 1979 - 1980 (RDW) Group: Front body Parts: 65 Primary OEM: 161 805 633 A, 171 803 273, 036 199 181

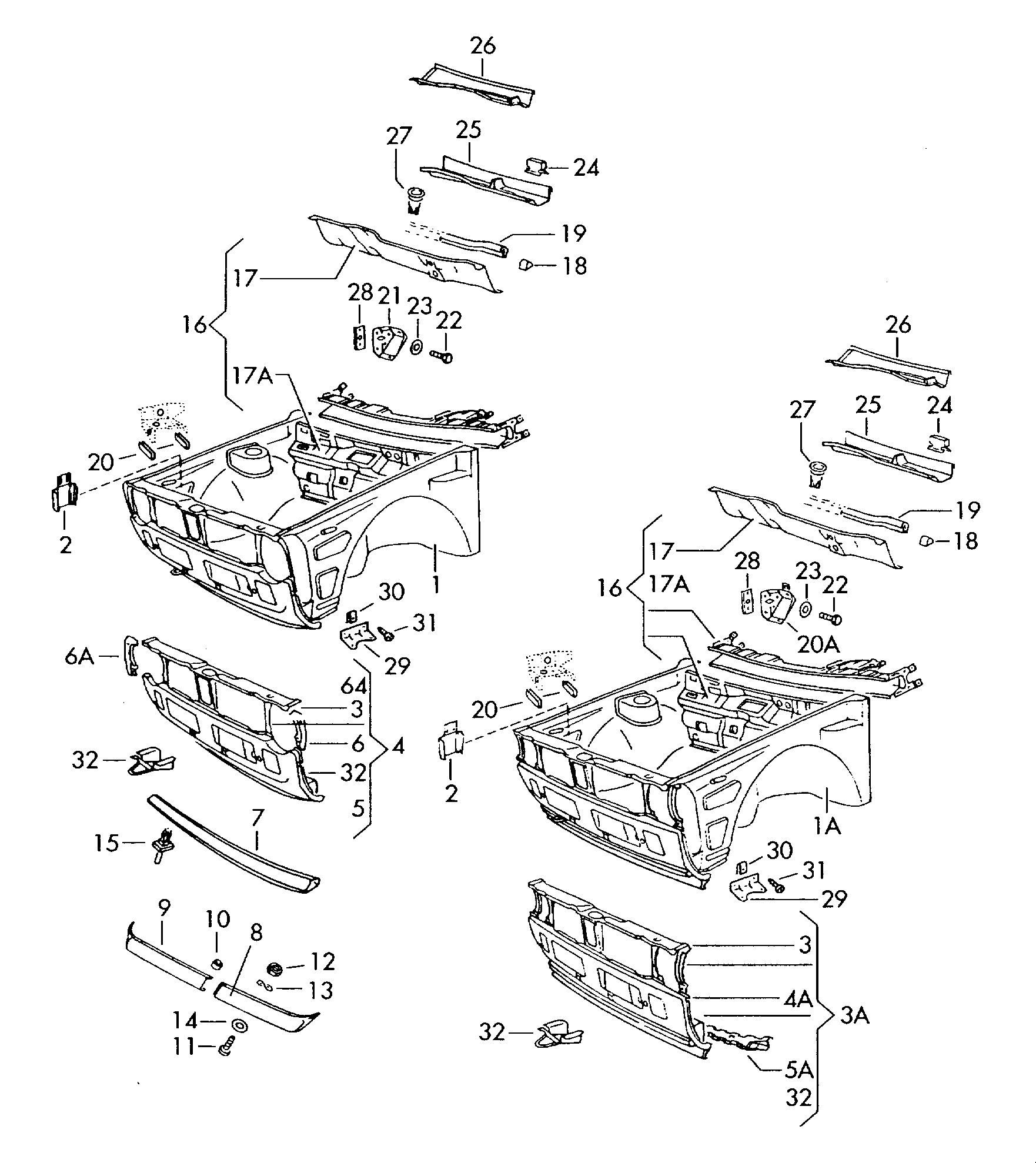

Bodywork front part for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 91000 from the Volkswagen ETKA parts catalogue, group 25 Front body, listing 60 OEM part numbers across 65 catalogued positions including 161 805 633 A, 171 803 273 and 036 199 181. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 60 OEM part numbers across 65 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Mounting for main beam headl. JETTA	161 805 633 A
-	Brace JETTA LI,GLIGOLF D,LD,GLD,GTI	171 803 273
-	Engine brackets	036 199 181
-	Retainer for reservoir	171 805 339
-	Bracket	161 951 183
-	Clip	155 853 119
-	expanding nut	1H0 853 120
-	expanding nut	155 853 120
-	expanding nut	533 853 139
-	oval head panel screw H 5 X 17 H 5 X 17	155 853 149
-	fillister hd. bolt 3,5 X 16 3,5 X 16	N 903 642 01
-	trim for apron	171 853 662
-	Mounting for main beam headl. JETTA	161 805 634
(20A)	Retainer for knee padding	161 805 831
(3)	lock carrier also use: 155 853 1191 H 0 853 120533 853 139155 853 149 N 903 642 01 155 853 1191 H 0 853 120533 853 139155 853 149 N 903 642 01	171 805 563 H
(3)	lock carrier also use: 155 853 119155 853 120533 853 139155 853 149 N 903 642 01 155 853 119155 853 120533 853 139155 853 149 N 903 642 01	171 805 563 H
1	Bodywork front part withoutcross panel also use: See parts bulletin: also use:036 199 181 No longer available 155 853 1191 H 0 853 120533 853 139155 853 149 N 903 642 018/113-81 >>177 3750000 GOLF 155 853 1191 H 0 853 120533 853 139155 853 149 N 903 642 018/113-81 >>177 3750000	171 805 023 K
10	spacer sleeve GTI	531 805 917
11	fillister hd. bolt M 5 X 18 GTI M 5 X 18	N 014 132 4
12	Hexagon nut M 5 GTI M 5	N 011 005 17
12	Hexagon nut M 5 GTI M 5	N 011 005 4
13	Spring washer 5 GTI 5	N 012 225 3
14	Washer 5,3 X 15 X 1,6 GTI 5,3 X 15 X 1,6	N 011 665 3
15	Clip GOLF	171 853 695 A
16	Cross panel	171 803 147 AQ
16	No longer available	—
17	rip plate on front crosspanel	155 803 153 D
17A	Reinforcement for bulkhead	155 803 159
18	Sealing element	171 819 517 A
19	gasket for separator plate	171 819 519 C
1A	Bodywork front part withoutcross panel See parts bulletin: 8/113-81 JETTA 8/113-81	161 805 023 B
1A	Discont. / replace: also use: See parts bulletin: 161 805 591 G 161 951 1838/113-81 JETTA 161 805 591 G 161 951 1838/113-81	—
2	bracket for fluidcontainer	823 805 559
20	beading air condit.	361 885 533 D
20A	Retainer for knee padding	161 805 832 A
21	Discont. / replace: 161 805 831161 805 832 A 161 805 831161 805 832 A	—
22	Hexagon bolt M 6 X 12 M 6 X 12	N 010 212 14
22	Hexagon bolt M 6 X 12 M 6 X 12	N 010 212 26
23	Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6	N 011 666 15
23	Washer B 6,1 X 18 X 2 B 6,1 X 18 X 2	N 011 666 10
24	Clip	191 819 145 A
25	Water deflector	171 819 415 F
26	No longer available	—
26	Water deflector	171 820 415 A
27	Water drain valve	171 819 419
28	Reinforcement for A pillarknee padding	171 809 457
29	Retainer for vacuumcontainer K-JETRONIC	171 809 163
30	Speed nut 4,2 X 24,8 X 11,3 4,2 X 24,8 X 11,3	N 015 430 1
31	oval head panel screw 4,2 X 13 4,2 X 13	N 013 966 26
31	oval head panel screw ST 4,2 X 13-C ST 4,2 X 13-C	N 013 966 12
32	Tow hitch	171 803 611
3A	Front cross panel also use: See parts bulletin: 161 951 183533 853 139155 853 1498/113-81 JETTA 161 951 183533 853 139155 853 1498/113-81	161 805 591 G
4	Front cross panel also use: See parts bulletin: 155 853 119155 853 120533 853 139155 853 149 N 903 642 01171 853 6628/113-81 155 853 119155 853 120533 853 139155 853 149 N 903 642 01171 853 6628/113-81	171 805 591 BK
4	Front cross panel also use: See parts bulletin: 155 853 1191 H 0 853 120533 853 139155 853 149 N 903 642 01171 853 6628/113-81 155 853 1191 H 0 853 120533 853 139155 853 149 N 903 642 01171 853 6628/113-81	171 805 591 BK
4A	Front cross panel JETTA	161 805 595 B
5	Front cross panel Rework if necessary also use: 171 853 662 171 853 662	155 805 595 A
5A	sealing plate forcross member JETTA	161 805 619
5A	No longer available JETTA	—
6	Web plate GOLF	171 805 631
6	Web plate also use: 155 853 1191 H 0 853 120 N 903 642 01 GOLF 155 853 1191 H 0 853 120 N 903 642 01	155 805 631
6A	Web plate also use: 155 853 1191 H 0 853 120 N 903 642 01 155 853 1191 H 0 853 120 N 903 642 01	155 805 632
6A	Web plate also use: 155 853 119155 853 120 N 903 642 01 155 853 119155 853 120 N 903 642 01	155 805 632
7	Spoiler GOLF	171 805 903
8	Spoiler GTI	171 805 903 B
9	Spoiler GTI	171 805 904 B

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these front body diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1979 - 1980
Generation region: RDW
Generation code: 027
Factory group: 25 Front body
Factory subgroup: 91000
