Bonnet — Mk1 Golf Front Body (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Bonnet

Generation: Mk1 1979 - 1980 (RDW) Group: Front body Parts: 46 Primary OEM: 311 867 235 0 1C, N 011 666 15, 191 955 985 A

Bonnet for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 105000 from the Volkswagen ETKA parts catalogue, group 25 Front body, listing 43 OEM part numbers across 46 catalogued positions including 311 867 235 0 1C, N 011 666 15 and 191 955 985 A. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 43 OEM part numbers across 46 numbered positions.

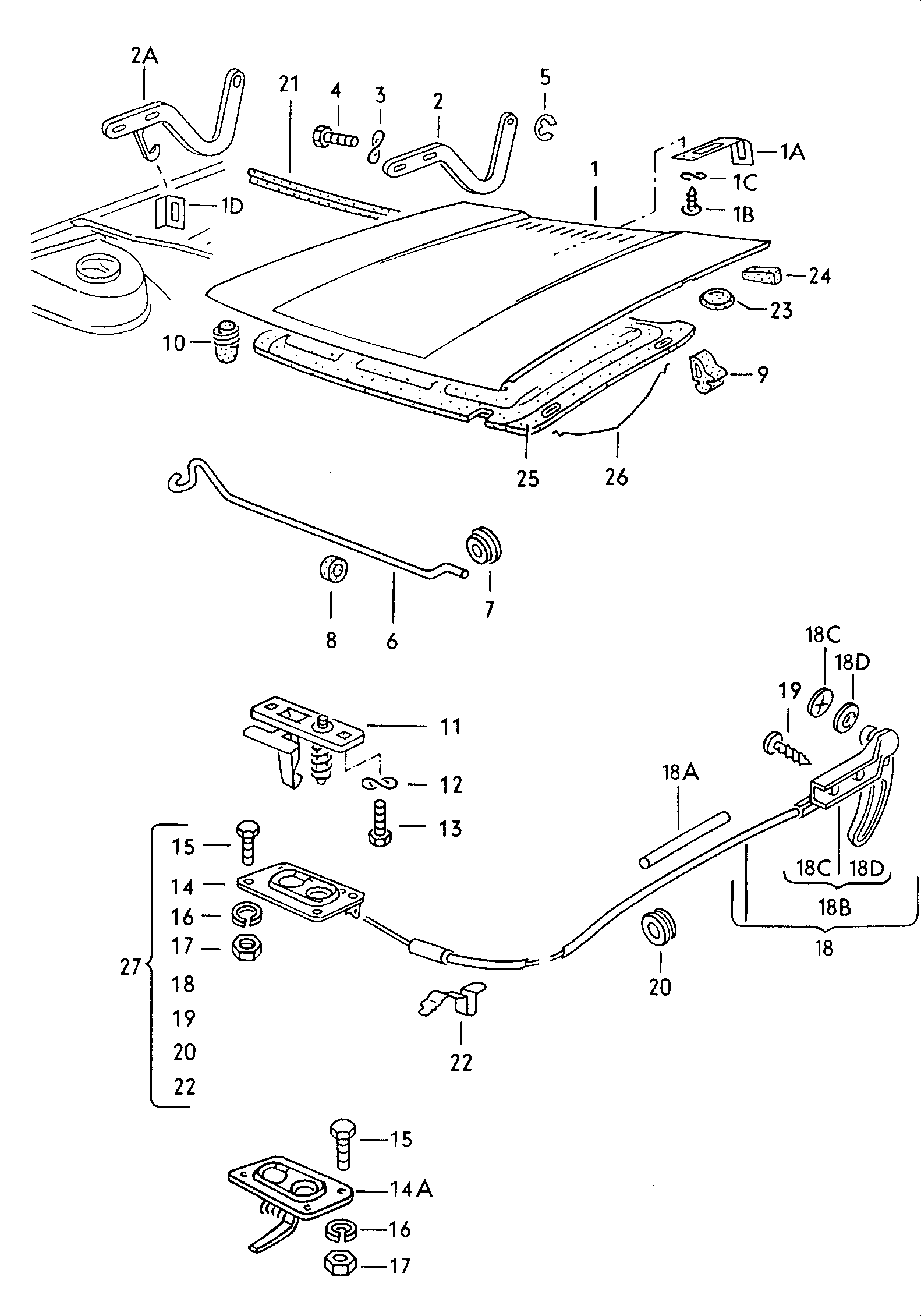

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	311 867 235 0 1C
-	Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6	N 011 666 15
-	Water jet	191 955 985 A
-	Clip	155 819 145
-	beading 330 MM 330 MM	181 837 809
-	Insulating hose in 5 m reels'Order quantity 5' W 7 W 7	N 018 007 4
-	Washer B 6,1 X 18 X 2 B 6,1 X 18 X 2	N 011 666 10
-	Sealing element	171 819 517 A
(2A)	flap hinge with hooks	161 823 301 A
1	Bonnet also use: 191 955 985 A 155 819 145 191 955 985 A 155 819 145	155 823 031 A
1	Bonnet also use: 191 955 985 A 191 955 985 A	155 823 031
10	Stop buffer 30 X 22/12 30 X 22/12	867 827 500
10	Puffer	171 823 499
10	Stop buffer 30 X 22/12 30 X 22/12	867 827 500 A
11	Flap lock upper part	321 823 507 A
12	Spring washer 6,4 6,4	211 805 243
13	Hexagon bolt M 6 X 12 M 6 X 12	N 010 212 26
13	Hexagon bolt M 6 X 12 M 6 X 12	N 010 212 14
14	bonnet lock-lower part	171 823 509
15	Hexagon bolt M 4 X 8 M 4 X 8	N 010 201 7
16	spring ring 4 4	N 012 004 3
17	Hexagon nut M 4 M 4	N 011 004 2
18	Lid lock cable	171 823 531
18A	shorten to: 600 MM 600 MM	—
18B	Grip for lid lockcable	171 823 537
18C	Clamping washer 5 5	N 012 855 1
18D	Washer 5,3 X 15 X 1,6 5,3 X 15 X 1,6	N 011 665 3
19	No longer available E 5 X 19 M E 5 X 19 M	—
19	fillister hd. bolt E 5 X 19 M E 5 X 19 M	171 823 540
2	Discont. / replace: 161 823 301 A 161 823 302 A 161 823 301 A 161 823 302 A	—
20	Grommet 20/4 20/4	311 611 743
21	gasket for separator plate	171 819 519 C
22	Clip	171 823 595
23	Cover cap 32,2 MM 32,2 MM	311 867 235
24	Filler piece	171 823 729
25	sound absorber for flap DIESEL	155 863 835
26	Clip DIESEL	171 863 849
2A	flap hinge with hooks	161 823 302 A
3	Spring washer 6,4 6,4	211 805 243
4	Hexagon bolt M 6 X 15 M 6 X 15	N 010 215 13
4	Hexagon bolt M 6 X 15 M 6 X 15	N 010 215 27
5	Retaining washer 6 6	N 900 470 01
6	Flap support	171 823 363
7	Rubber bush 16/6,2 16/6,2	171 823 395
8	rubber ring	171 823 481 A
9	Guide piece	171 823 493
