Which VW part numbers are on the wing diagram for the Mk1 Golf?

This diagram lists 17 OEM part numbers for the Mk1 Golf. The first three are 443 821 169 0 1C, 155 821 022 A and 161 821 022 C.

Which Mk1 Golf years and engines does this diagram cover?

This plate is from the Mk1 Golf 1979 - 1980 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk1 Golf factory parts catalogue?

The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.

Wing — Mk1 Golf Front Body (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Wing

Generation: Mk1 1979 - 1980 (RDW) Group: Front body Parts: 19 Primary OEM: 443 821 169 0 1C, 155 821 022 A, 161 821 022 C

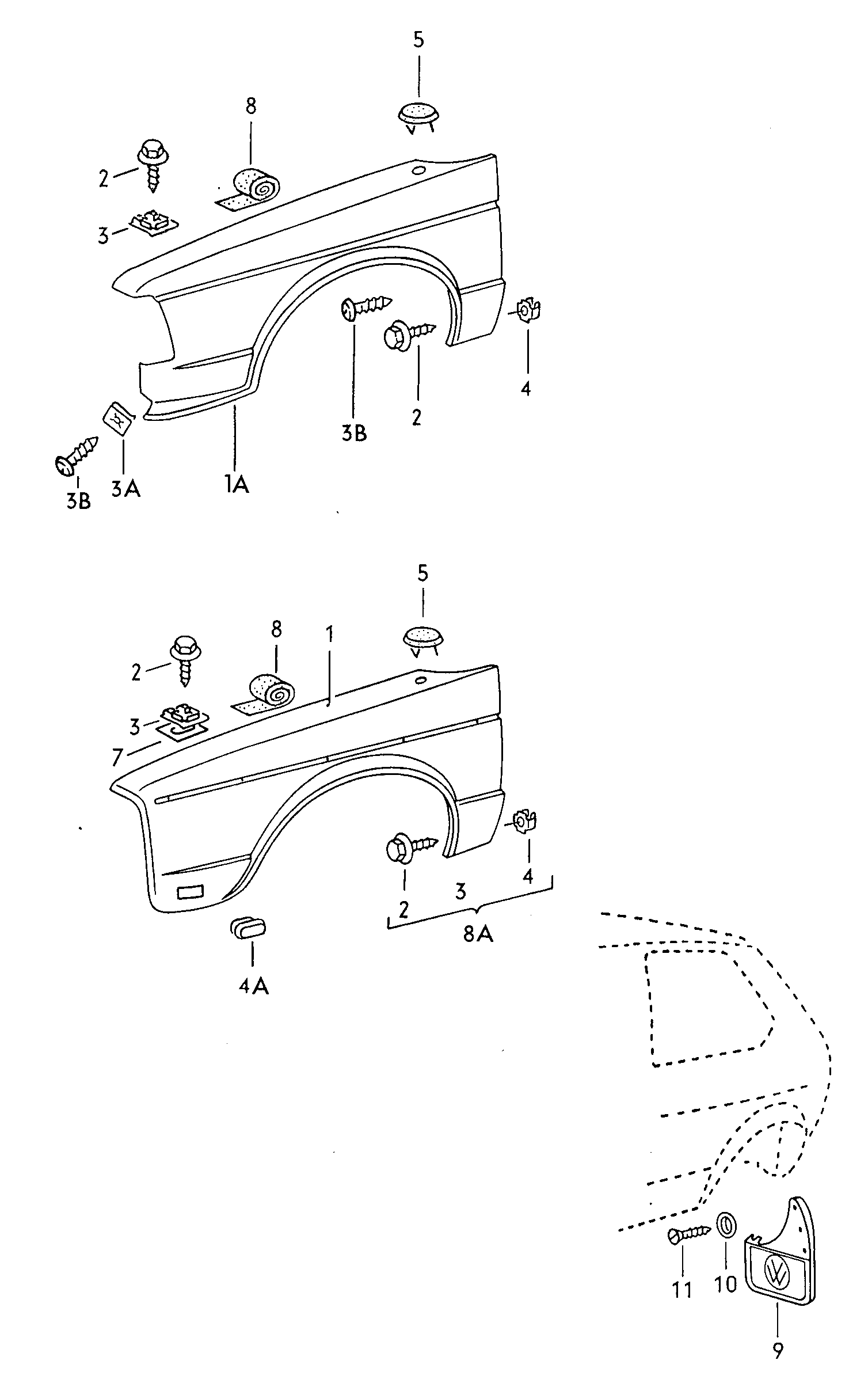

Wing for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 104000 from the Volkswagen ETKA parts catalogue, group 25 Front body, listing 17 OEM part numbers across 19 catalogued positions including 443 821 169 0 1C, 155 821 022 A and 161 821 022 C. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 17 OEM part numbers across 19 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	mud flap rear GOLF rear	—
	Satin black	443 821 169 0 1C
(1)	Wing	155 821 022 A
(1A)	Wing JETTA	161 821 022 C
(8A)	attachment parts for onefender also use: D 486 020 A 5 AKL 381 035 50 GOLF D 486 020 A 5 AKL 381 035 50	161 898 051
(9)	No longer available	—
(9)	mud flap	171 821 822
1	Wing	155 821 021 A
10	Hollow disc	171 821 849
11	oval hd. csk. self-tapp. screw 4,2 X 16 4,2 X 16	N 014 094 2
1A	Wing JETTA	161 821 021 C
2	hex. hd. self-tap bolt (combi) 6,5 X 21,5 6,5 X 21,5	311 821 143
3	Speed nut	461 821 149
3A	Speed nut 4,2 X 16,5 X 11,25 JETTA 4,2 X 16,5 X 11,25	N 015 429 2
3B	oval head panel screw 4,2 X 9,5 JETTA 4,2 X 9,5	N 013 965 5
4	speed nut 6,3 6,3	N 012 062 2
5	Cover	443 821 169
7	intermediate (zinc)(bag contains 50 pieces)	AKL 381 035 50
9	mud flap	171 821 821

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these front body diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1979 - 1980
Generation region: RDW
Generation code: 027
Factory group: 25 Front body
Factory subgroup: 104000
