Coupling — Mk1 Golf Gearbox (1981)
Factory title: Volkswagen Golf (1981) - Coupling

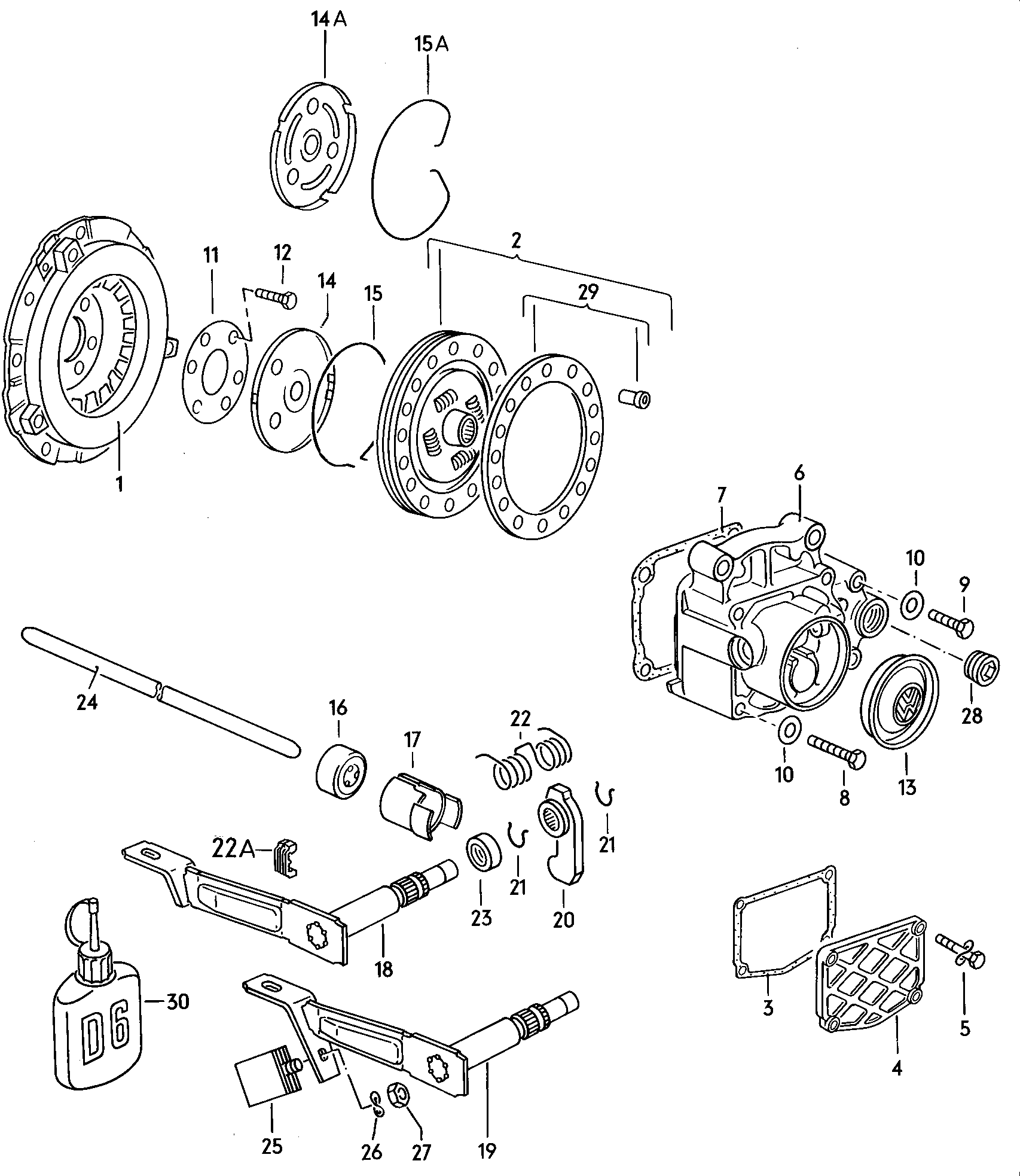

Coupling for the Volkswagen Golf Mk1 (1981): factory exploded diagram 53000 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 55 OEM part numbers across 58 catalogued positions including 055 198 141 CX, G 000 100 and N 012 234 5. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 55 OEM part numbers across 58 numbered positions.
| № | Description | Part number |
|---|---|---|
| Coupling 1.5-1.7 ltr. EG,EM,EN,FR,GH,JB,DIESEL:CR 1.5-1.7 ltr. | — | |
| - | 1 set clutch parts use if required: 190 MM 055 141 124 B 055 141 130 D JB,GH,EM,FR,EN 190 MM 055 141 124 B 055 141 130 D | 055 198 141 CX |
| - | Grease for clutchplate splines 80 G 80 G | G 000 100 |
| - | Spring washer 7 7 | N 012 234 5 |
| - | 1 set clutch parts F 16-B-475 647>>F 17-B-475 647>> 200 MM DIESEL:CRDIESEL:CR 200 MM | 068 198 141 BX |
| (1) | clutch pressure plate F >> 16-B-475 646 F >> 17-B-465 646 190 MM DIESEL:CR 190 MM | 067 141 025 EX |
| (1) | clutch pressure plate F 16-B-475 647>>F 17-B-475 647>> 200 MM DIESEL:CR 200 MM | 068 141 025 |
| (1) | clutch pressure plate F 16-B-475 647>>F 17-B-475 647>> 200 MM DIESEL:CR 200 MM | 068 141 025 X |
| (1) | clutch pressure plate F 16-B-475 647>>F 17-B-475 647>> 200 MM DIESEL:CRDIESEL:CR 200 MM | 068 141 025 BX |
| (1) | clutch pressure plate F 16-B-475 647>>F 17-B-475 647>> 200 MM DIESEL:CRDIESEL:CR 200 MM | 068 141 025 BX |
| (1) | clutch pressure plate 190 MM JB,GH,EM,FREN 190 MM | 067 141 025 EX |
| (1) | clutch pressure plate 190 MM 190 MM | 067 141 025 N |
| (1) | clutch pressure plate 200 MM EG 200 MM | 067 141 025 L |
| (1) | clutch pressure plate 200 MM EG 200 MM | 067 141 025 HX |
| (1) | clutch pressure plate F >> 16-B-475 646 F >> 17-B-475 646 use if required: 190 MM 055 141 124 H 055 141 130 F DIESEL:CR 190 MM 055 141 124 H 055 141 130 F | 067 141 025 NX |
| (14) | thrust plate for clutch:F >> 16-B-475 646 F >> 17-B-475 646 190 MM DIESEL:CRDIESEL:CR 190 MM | 055 141 124 B |
| (14A) | thrust plate for clutch: also use: ASSYMETR.200 MM 055 141 130 F EG ASSYMETR.200 MM 055 141 130 F | 055 141 124 H |
| (14A) | thrust plate for clutch:F ..-B-475 647>> also use: ASSYMETR.200 MM 055 141 130 F DIESEL:CR ASSYMETR.200 MM 055 141 130 F | 055 141 124 H |
| (15) | Retaining ring for clutch:F >> 16-B-475 646 F >> 17-B-475 646 190 MM DIESEL:CRDIESEL:CR 190 MM | 055 141 130 D |
| (15A) | Retaining ring for clutch:F ..-B-475 647>> 200 MM DIESEL:CR 200 MM | 055 141 130 F |
| (15A) | Retaining ring for clutch: 200 MM EG 200 MM | 055 141 130 F |
| (16) | release bearing | 020 141 165 H |
| (19) | release shaft | 020 141 701 N |
| (2) | Clutch plate F 16-B-475 647>> 200 MM DIESEL:CR 200 MM | 068 141 036 BX |
| (2) | Clutch plate 200 MM EG 200 MM | 055 141 033 BX |
| (2) | Clutch plate 200 MM EG 200 MM | 055 141 033 BX |
| (2) | Clutch plate F >> 16-B-475 646 F >> 17-B-475 646 190 MM DIESEL:CRDIESEL:CR 190 MM | 068 141 035 QX |
| (2) | Clutch plate F >> 16-B-475 646 F >> 17-B-475 646 190 MM DIESEL:CRDIESEL:CR 190 MM | 068 141 035 Q |
| (20) | clutch lever | 020 141 709 B |
| (22) | torsion spring | 020 141 723 C |
| (24) | push rod | 020 141 741 B |
| 1 | clutch pressure plate 190 MM JB,GH,EM,FR,EN 190 MM | 067 141 025 E |
| 1 | clutch pressure plate use if required: 190 MM 055 141 124 H 055 141 130 F JB,GH,EM,FR,EN 190 MM 055 141 124 H 055 141 130 F | 067 141 025 NX |
| 11 | Intermediate plate | 055 141 069 C |
| 12 | Hexagon bolt M 10 X 1 X 19,5 M 10 X 1 X 19,5 | N 902 061 03 |
| 13 | End cap | 020 141 073 A |
| 14 | thrust plate for clutch: 190 MM EM,EN,FR,GH,JB 190 MM | 055 141 124 B |
| 15 | Retaining ring for clutch: 190 MM EM,EN,FR,GH,JB 190 MM | 055 141 130 D |
| 16 | release bearing | 020 141 165 E |
| 17 | guide sleeve | 020 141 181 |
| 18 | No longer available | — |
| 19 | release shaft | 020 141 701 P |
| 2 | Clutch plate 190 MM EM,EN,FR,GH,JB 190 MM | 055 141 033 X |
| 20 | clutch lever | 020 141 709 A |
| 21 | Securing ring | 020 141 710 |
| 22 | torsion spring | 020 141 723 B |
| 22A | Stop buffer | 020 141 726 |
| 23 | radial shaft seal 27 X 8,7 27 X 8,7 | 020 141 733 |
| 24 | push rod | 020 141 741 |
| 25 | Balance weight F 16-B-340 739>>F 17-B-340 739>> 400 G DIESEL:CRDIESEL:CR 400 G | 020 141 781 C |
| 26 | Spring washer 10 DIESEL:CR 10 | N 012 230 7 |
| 27 | Hexagon nut M 10 DIESEL:CR M 10 | N 011 134 5 |
| 28 | sealing plug M 24 X 1,5 M 24 X 1,5 | 012 301 127 F |
| 29 | No longer available | — |
| 3 | Seal | 020 141 059 |
| 30 | Locking fluid | D 000 600 A2 |
| 4 | Cover | 020 141 063 |
| 5 | Hexagon bolt M 7 X 25 M 7 X 25 | N 010 290 1 |
