Coupling — Mk1 Golf Gearbox (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Coupling

Generation: Mk1 1979 - 1980 (RDW) Group: Gearbox Rebuild step 9 Parts: 72 Primary OEM: N 012 234 5, 052 198 141 AX, 068 198 141 CX

Coupling for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 38000 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 69 OEM part numbers across 72 catalogued positions including N 012 234 5, 052 198 141 AX and 068 198 141 CX. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 69 OEM part numbers across 72 numbered positions.

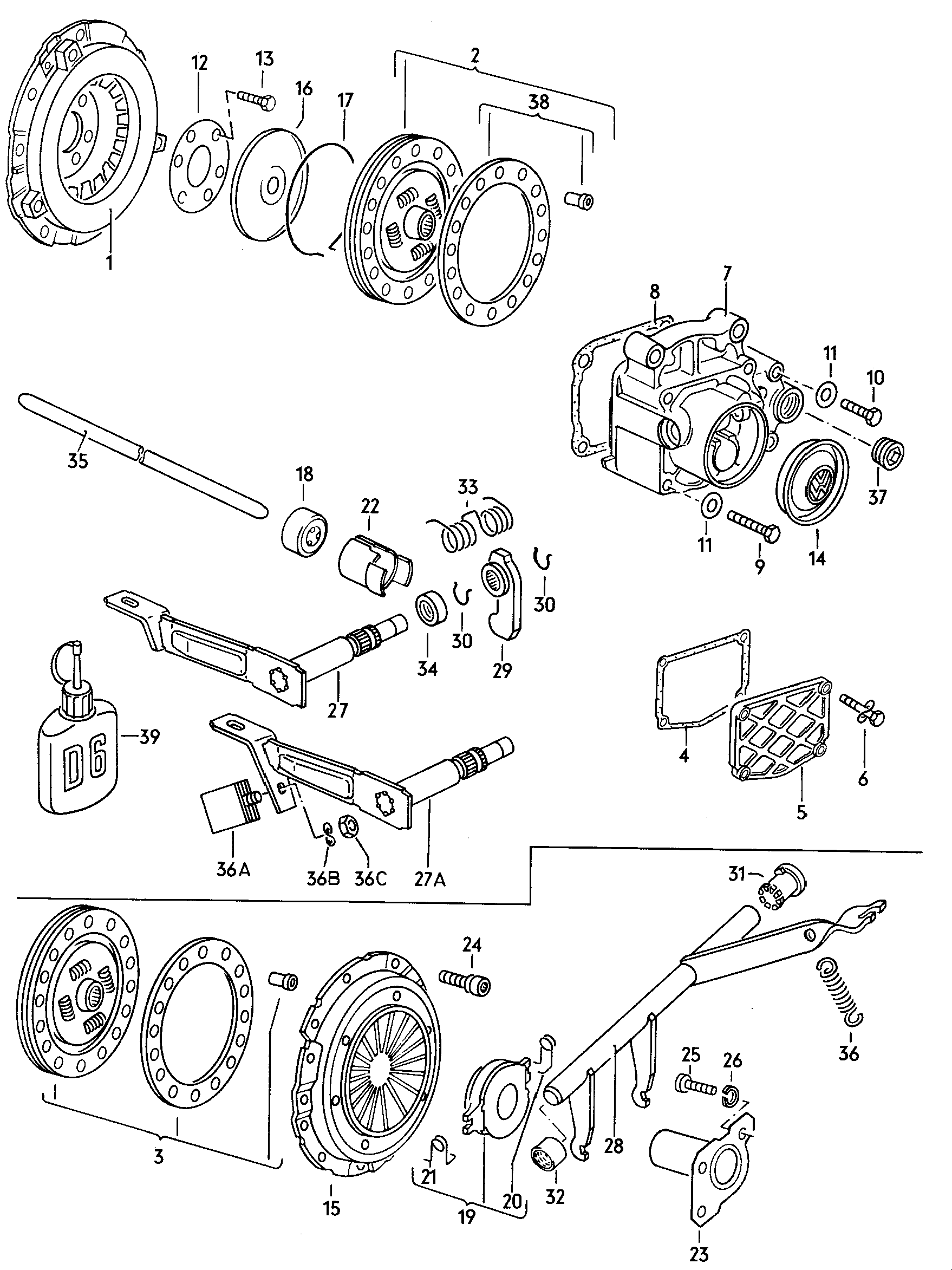

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Spring washer 7 7	N 012 234 5
-	1 set clutch parts 180 FA,FJ,GF,GG 180	052 198 141 AX
-	1 set clutch parts use if required: 190055 141 124 H 055 141 130 F DIESEL:CK 190055 141 124 H 055 141 130 F	068 198 141 CX
-	1 set clutch parts 190 EH,EM,EJ,FR,FV,JB,GH 190	055 198 141 CX
-	Grease for clutchplate splines 80 G 80 G	G 000 100
(1)	clutch pressure plate 190 190	067 141 025 E
(1)	clutch pressure plate M EG 143 001>>* 200 200	067 141 025 HX
(1)	clutch pressure plate M EG 143 001>>* 200 200	067 141 025 L
(1)	clutch pressure plate use if required: 190055 141 124 H 055 141 130 F 190055 141 124 H 055 141 130 F	067 141 025 EX
(15)	clutch pressure plate 180 FA,FJ,GF,GG 180	052 141 117 JX
(16)	thrust plate for clutch:M EG 143 001>>* also use: 200/210055 141 130 F 200/210055 141 130 F	055 141 124 H
(16)	thrust plate for clutch:M EG 143 001>>* also use: 200/210055 141 130 F 200/210055 141 130 F	055 141 124 F
(17)	Retaining ring for clutch:M EG 143 001>>* 200/210 200/210	055 141 130 F
(18)	release bearing	020 141 165 H
(2)	Clutch plate 190 EH,EM,EJ,FR,FV,JB,GH 190	055 141 033 X
(2)	Clutch plate 190 DIESEL:CK 190	068 141 035 QX
(2)	Clutch plate 190 DIESEL:CK 190	068 141 035 Q
(2)	Clutch plate M EG 143 001>>* 200 200	055 141 033 BX
(2)	Clutch plate 200 200	055 141 033 B
(2)	Clutch plate 190 EG 190	067 141 031 MX
(2)	Clutch plate 190 EG 190	067 141 031 M
(29)	clutch lever	020 141 709 B
(3)	Clutch plate 180 FA,FJ,GF,GG 180	052 141 032 RX
(33)	torsion spring	020 141 723 C
(35)	push rod	020 141 741 B
(6)	Hexagon bolt also use: M 7 X 25 N 012 234 5 M 7 X 25 N 012 234 5	N 010 290 1
1	clutch pressure plate also use: 190055 141 124 H 055 141 130 F 190055 141 124 H 055 141 130 F	067 141 025 NX
1	clutch pressure plate 190 190	067 141 025 N
12	Intermediate plate EG,EH,EJ,EM,FN,FR,FV,JB,GH,DIESEL:CK	055 141 069 C
13	Hexagon bolt M 10 X 1 X 19,5 M 10 X 1 X 19,5	N 902 061 03
14	End cap	020 141 073 A
15	clutch pressure plate 180 FA,FJ,GF,GG 180	052 141 117 JX
15	clutch pressure plate 180 FA,FJ,GF,GG 180	052 141 117 J
16	thrust plate for clutch:M CK 221 500>>M EG 092 875>>M EH 182 109>>M EJ 000 001>>M EM 000 001>>M FN 163 973>>M FR 035 843>>M FV 032 017>>M JB 141 057>> 190 190	055 141 124 B
17	Retaining ring for clutch:M CK 221 500>>M EG 092 875>>M EH 182 109>>M EJ 000 001>>M EM 000 001>>M FN 163 973>>M FR 035 843>>M FV 032 017>>M JB 141 057>> 190 190	055 141 130 D
18	release bearing EG,EH,EJ,EM,FN,FR,FV,JB,GH,DIESEL:CK	020 141 165 E
19	release bearing FA,FJ,GF,GG	084 141 165 B
2	Clutch plate 190 EH,EM,EJ,FR,FV,JB,GH 190	055 141 033
2	Clutch plate 190 EH,EM,EJ,FR,FV,JB,GH 190	055 141 033 X
20	retaining spring FA,FJ,GF,GG	113 141 177 C
21	retaining spring FA,FJ,GF,GG	113 141 178 C
22	guide sleeve EG,EH,EJ,EM,FN,FR,FV,JB,GH,DIESEL:CK	020 141 181
23	guide sleeve FA,FJ,GF,GG	084 141 181 A
24	Socket head bolt withhexagon socket head M 7 X 16 FA,FJ,GF,GG M 7 X 16	N 900 202 02
25	Socket head bolt M 7 X 16 FA,FJ,GF,GG M 7 X 16	084 141 197
26	spring ring 7 FA,FJ,GF,GG 7	N 042 001 1
27	release shaft EG,EH,EJ,EM,FN,FR,FV,JB,GH,DIESEL:CK	020 141 701 P
27	release shaft EG,EH,EJ,EM,FN,FR,FV,JB,GH,DIESEL:CK	020 141 701 L
27A	release shaft	020 141 701 M
27A	release shaft	020 141 701 N
28	release shaft FA,FJ,GF,GG	084 141 701 A
29	clutch lever EG,EH,EJ,EM,FN,FR,FV,JB,GH,DIESEL:CK	020 141 709 A
3	Clutch plate 180 FA,FJ,GF,GG 180	052 141 032 RX
3	Clutch plate 180 FA,FJ,GF,GG 180	052 141 032 R
30	Securing ring EG,EH,EJ,EM,FN,FR,FV,JB,GH,DIESEL:CK	020 141 710
31	bush FA,FJ,GF,GG	084 141 711
32	bush FA,FJ,GF,GG	084 141 713 A
33	torsion spring EG,EH,EJ,EM,FN,FR,FV,JB,GH,DIESEL:CK	020 141 723 B
34	radial shaft seal 27 X 8,7 EG,EH,EJ,EM,FN,FR,FV,JB,GH,DIESEL:CK 27 X 8,7	020 141 733
35	push rod EG,EH,EJ,EM,FN,FR,FV,JB,GH,DIESEL:CK	020 141 741
36	tension spring FA,FJ,GF,GG	084 141 741 A
36A	Balance weight 400 G 400 G	020 141 781 C
36A	Balance weight	020 141 781 A
36B	Spring washer 10 10	N 012 230 7
36C	Hexagon nut M 10 M 10	N 011 134 5
37	see illustration: 051-010 051-010	—
38	No longer available	—
39	Locking fluid	D 000 600 A2
39	Locking fluid	D 000 600
4	Seal EG,EH,EJ,EM,FN,FR,FV,JB,GH,DIESEL:CK	020 141 059
5	Cover EG,EH,EJ,EM,FN,FR,FV,JB,GH,DIESEL:CK	020 141 063
7	see illustration: 051-010 051-010	—
