Which VW part numbers are on the coupling diagram for the Mk1 Golf?

This diagram lists 16 OEM part numbers for the Mk1 Golf. The first three are G 000 100, 052 141 032 R and 052 141 032 RX.

Which Mk1 Golf years and engines does this diagram cover?

This plate is from the Mk1 Golf 1981 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk1 Golf factory parts catalogue?

The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.

Coupling — Mk1 Golf Gearbox (1981)

Factory title: Volkswagen Golf (1981) - Coupling

Generation: Mk1 1981 (RDW) Group: Gearbox Rebuild step 9 Parts: 17 Primary OEM: G 000 100, 052 141 032 R, 052 141 032 RX

Coupling for the Volkswagen Golf Mk1 (1981): factory exploded diagram 52000 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 16 OEM part numbers across 17 catalogued positions including G 000 100, 052 141 032 R and 052 141 032 RX. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 16 OEM part numbers across 17 numbered positions.

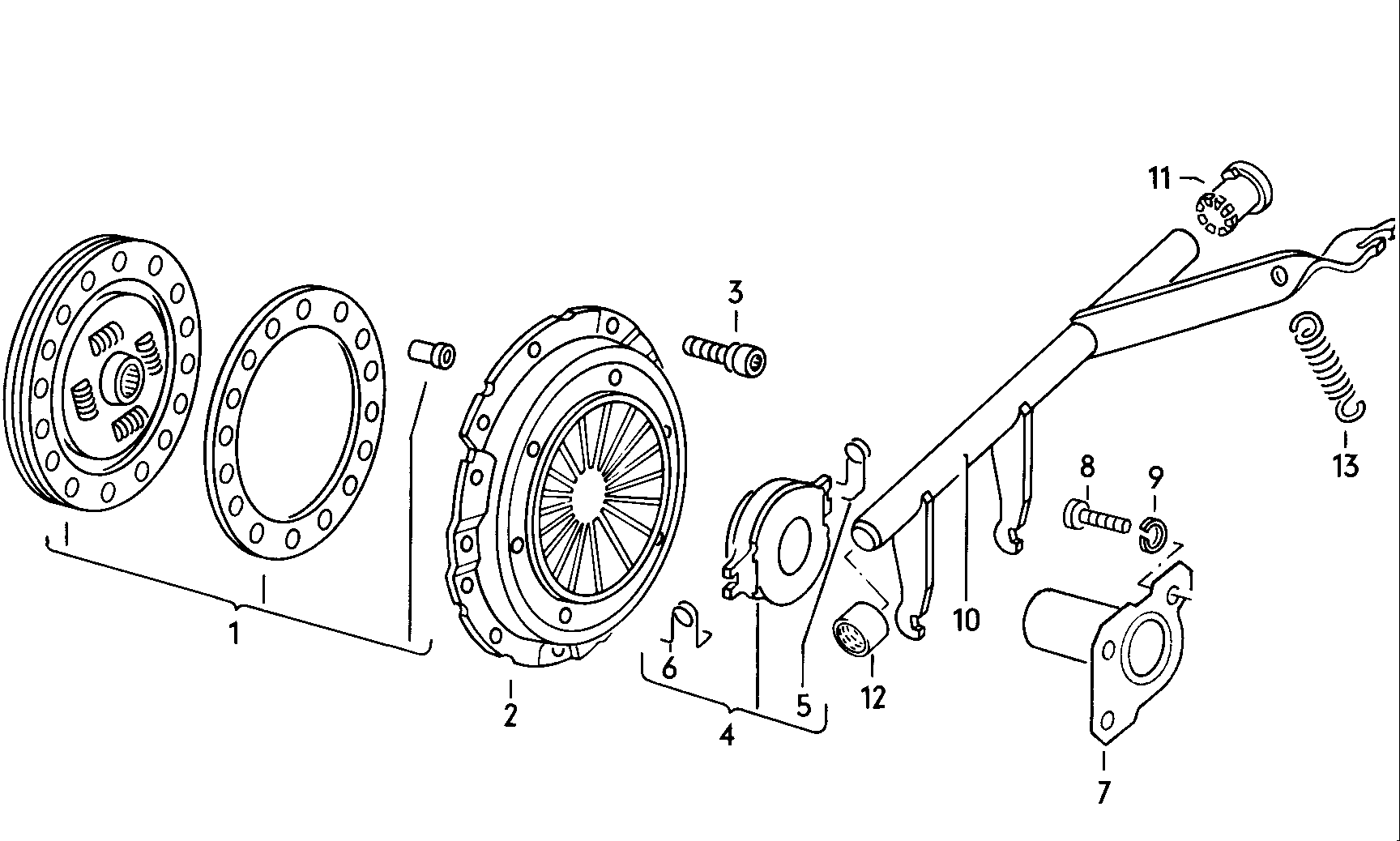

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Coupling 1.1/1.3 ltr. GF,GG 1.1/1.3 ltr.	—
-	Grease for clutchplate splines 80 G 80 G	G 000 100
1	Clutch plate 180 MM 180 MM	052 141 032 R
1	Clutch plate 180 MM 180 MM	052 141 032 RX
10	release shaft	084 141 701 A
11	bush	084 141 711
12	bush	084 141 713 A
13	tension spring	084 141 741 A
2	clutch pressure plate 180 MM 180 MM	052 141 117 J
2	clutch pressure plate 180 MM 180 MM	052 141 117 JX
3	Socket head bolt withhexagon socket head M 7 X 16 M 7 X 16	N 900 202 02
4	release bearing	084 141 165 B
5	retaining spring	113 141 177 C
6	retaining spring	113 141 178 C
7	guide sleeve	084 141 181 A
8	Socket head bolt M 7 X 16 M 7 X 16	084 141 197
9	spring ring 7 7	N 042 001 1

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1981
Generation region: RDW
Generation code: 026
Variant tags: petrol_8v_base
Factory group: 02 Gearbox
Factory subgroup: 52000
