Differentialfor manual gearbox — Mk1 Golf Gearbox (1982 - 1983)
Factory title: Volkswagen Golf (1982 - 1984) - For manual gearbox. Differential

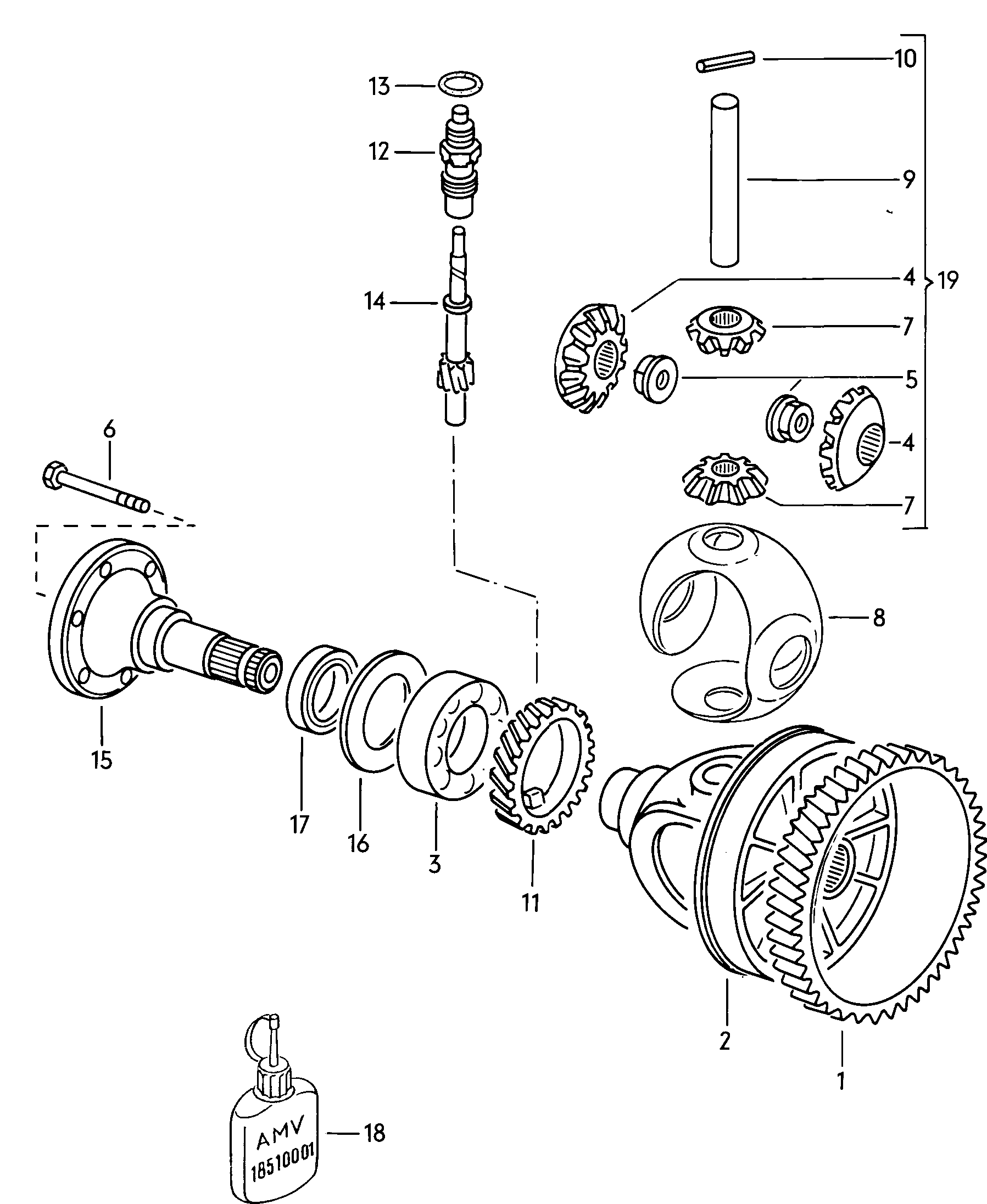

Differentialfor manual gearbox for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 98000 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 24 OEM part numbers across 28 catalogued positions including 084 409 143 A, 084 409 143 B and 084 409 143 D. Parts on this plate carry the engine codes GU and GX. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 24 OEM part numbers across 28 numbered positions.
| № | Description | Part number |
|---|---|---|
| Differentialfor 4-speed manual gearbox 1.1/1.3 ltr. GU,QS,GV,GW,GX,3 D 1.1/1.3 ltr. GUGX | — | |
| - | pinion gear set 65/16 QS,3 D,GX 65/16 GX | 084 409 143 A |
| - | pinion gear set 64/15 GU,GV 64/15 GU | 084 409 143 B |
| - | pinion gear set 64/14 GW 64/14 | 084 409 143 D |
| (1) | Discont. / replace: 084 409 143 A QS,3 D,GX 084 409 143 A GX | — |
| (1) | output gear 64/14 GW 64/14 | 084 409 151 B |
| (15) | Flanged shaft also use: 087 409 360 087 409 360 | 084 409 355 G |
| (16) | 1 set shims 0,7-2,4 0,7-2,4 | 084 498 383 A |
| (6) | Socket head bolt withhexagon socket head M 8 X 68 X 12 M 8 X 68 X 12 | 087 409 360 |
| 1 | output gear 64/15 GU,GV 64/15 GU | 084 409 151 |
| 10 | Spring pin 4 X 30 4 X 30 | N 013 344 2 |
| 11 | Drive wheel speedometer | 084 409 187 |
| 12 | guide for pinion | 014 409 193 A |
| 13 | seal ring | 001 301 131 |
| 14 | speedometer pinion | 084 409 197 |
| 15 | Flanged shaft also use: 087 409 360 087 409 360 | 084 409 356 D |
| 17 | Shaft oil seal 40 X 52 X 9 40 X 52 X 9 | 014 409 399 D |
| 18 | Locking fluid | AMV 185 101 A1 |
| 19 | 1 set: differential pinions | 084 498 081 |
| 2 | Differential housing | 084 409 121 C |
| 3 | Taper roller bearing | 411 501 283 E |
| 4 | Discont. / replace: 084 498 081 084 498 081 | — |
| 5 | Locknut | 084 409 161 A |
| 6 | Hexagon bolt M 8 X 62 M 8 X 62 | N 010 377 1 |
| 7 | Discont. / replace: 084 498 081 084 498 081 | — |
| 8 | Thrust washer assembly | 084 409 170 |
| 8 | Thrust washer assembly | 084 409 170 B |
| 9 | Cylinder pin | 084 409 177 B |
From the Type 19 workshop
Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk1
- Model years
- 1982 - 1983
- Generation region
- RDW
- Generation code
- 007
- Engine codes on this plate
- GU, GX
- Variant tags
- petrol_8v_base
- Factory group
- 02 Gearbox
- Factory subgroup
- 98000
