Differentialfor manual gearbox — Mk1 Golf Gearbox (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - For manual gearbox. Differential

Generation: Mk1 1979 - 1980 (RDW) Group: Gearbox Rebuild step 9 Parts: 51 Primary OEM: 020 409 170 B, 020 409 374, 020 409 378

Differentialfor manual gearbox for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 62000 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 47 OEM part numbers across 51 catalogued positions including 020 409 170 B, 020 409 374 and 020 409 378. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 47 OEM part numbers across 51 numbered positions.

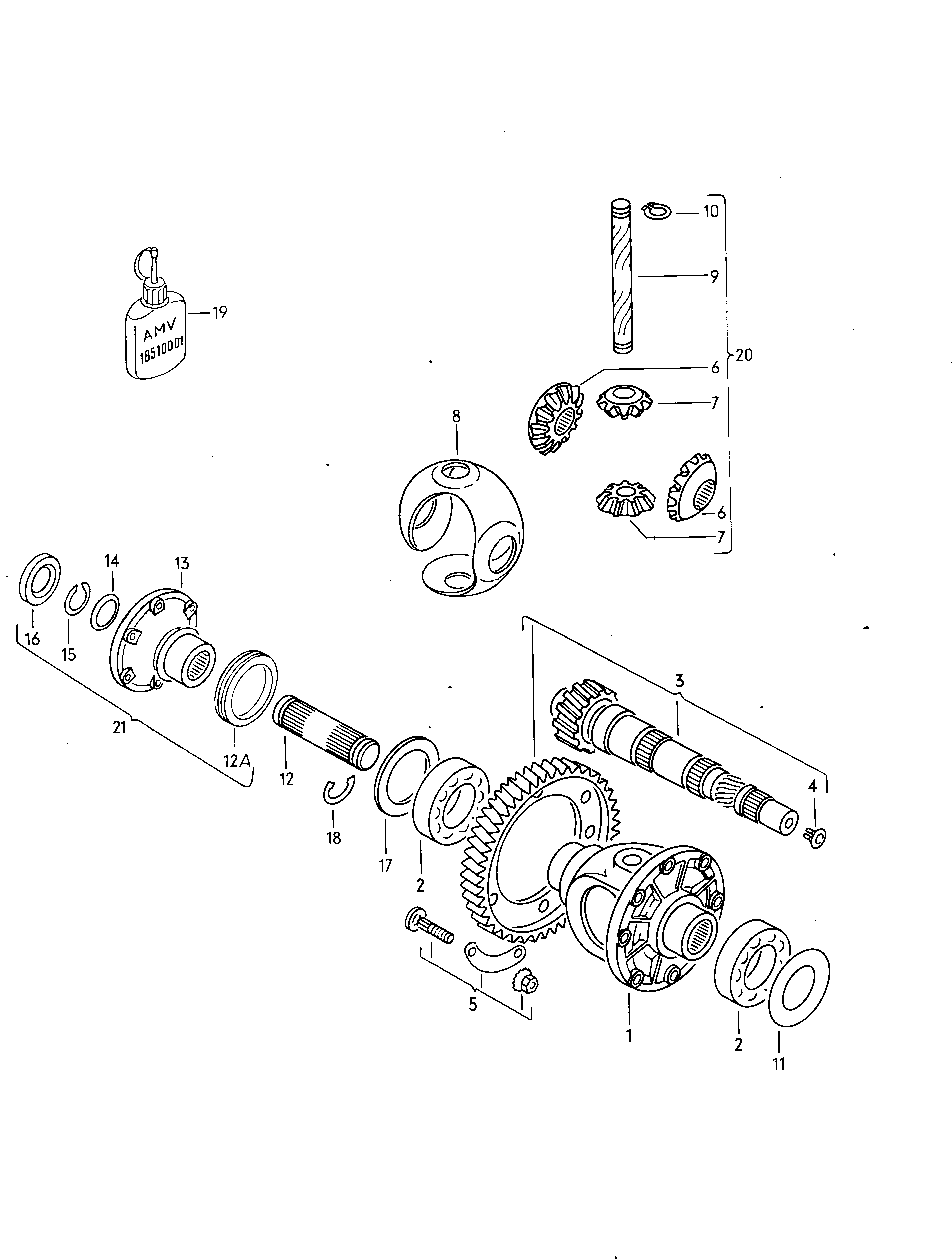

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Differentialfor manual gearbox 1.5/1.6 ltr. GC,GE,FM,FD 1.5/1.6 ltr.	—
-	Thrust washer assembly	020 409 170 B
-	tapered ring FD	020 409 374
-	thrust washer FD	020 409 378
-	Pressure spring FD	020 409 379 A
-	Pressure spring FD	020 409 379 B
-	Sleeve FD	020 301 192 A
-	1 set: differential pinions	02K 498 081
(1)	Differential housing also use: 02 K 498 081020 409 170 B 02 K 498 081020 409 170 B	02K 409 121 J
(1)	Differential housing FD	020 409 121 F
(11)	adjusting washer 0,8 0,8	02K 409 210 C
(11)	adjusting washer 0,7 0,7	02K 409 210 A
(11)	adjusting washer 0,6 0,6	020 409 231 D
(11)	adjusting washer 0,8 0,8	020 409 231 F
(11)	adjusting washer 0,3 0,3	020 409 231 A
(13)	Drive flange G 02 07 9>> 90 GC 90	113 517 285 J
(13)	Drive flange 90 FD 90	020 409 285 N
(18)	Securing ring 22 X 2,3 22 X 2,3	020 409 299 A
(21)	repair kit forjoint flange FD	020 498 085 A
(3)	pinion gear set 74/20 GE 74/20	020 409 143 A
(3)	pinion gear set 74/19 FM,FD 74/19	020 409 143 F
1	Differential housing FD	020 409 121 C
1	Differential housing	020 409 121 A
10	Securing ring 16 X 1,5 16 X 1,5	N 042 363 1
11	adjusting washer 0,15 0,15	020 409 231
11	adjusting washer 0,7 0,7	020 409 231 E
12	Output shaft GC,GE,FM,FD	020 409 291 A
12	Output shaft GC,GE,FM,FD	020 409 291 B
12A	seal ring Discont. / replace: 020 498 085020 498 085 A GC,GE,FMFD 020 498 085020 498 085 A	—
13	Drive flange 90 FD 90	020 409 285 D
13	Drive flange G >> 01 07 9 G 01 08 8>>G 27 06 9>> 90 GCGEFM 90	113 517 283 B
14	Belleville spring	020 409 295
15	snap ring	020 409 297
16	End cap	020 409 289 B
16	End cap	113 517 289 A
17	Shim	020 409 298
18	Securing ring 22 X 2 22 X 2	020 409 299
19	Locking fluid	AMV 185 100 01
19	Locking fluid	AMV 185 101 A1
2	Taper roller bearing	003 519 185 B
20	1 set: differential pinions	020 498 081 A
21	repair kit forjoint flange GC,GE,FM	020 498 085
3	pinion gear set 74/19 GC 74/19	020 409 143
4	stop for needle bearing G >> 07 10 9 GC,GE	020 311 197
5	1 set fixing parts foroutput wheel on differentialcasing	171 498 088 A
6	Discont. / replace: 020 498 081 A 020 498 081 A	—
7	Discont. / replace: 020 498 081 A 020 498 081 A	—
8	Thrust washer assembly	020 409 170 A
8	Thrust washer assembly	020 409 170 B
9	shaft - differential pinion	020 409 177 A
9	shaft - differential pinion	020 409 177 D

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1979 - 1980
Generation region: RDW
Generation code: 027
Variant tags: petrol_8v_base
Factory group: 02 Gearbox
Factory subgroup: 62000
