Gear housingfor 4 speed manual gearbox — Mk1 Golf Gearbox (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - Gear housing. for 4-speed manual gearbox

Generation: Mk1 1982 - 1983 (RDW) Group: Gearbox Rebuild step 9 Parts: 55 Primary OEM: N 010 247 8, 068 103 648 K, 068 103 621 E

Gear housingfor 4 speed manual gearbox for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 82000 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 54 OEM part numbers across 55 catalogued positions including N 010 247 8, 068 103 648 K and 068 103 621 E. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 54 OEM part numbers across 55 numbered positions.

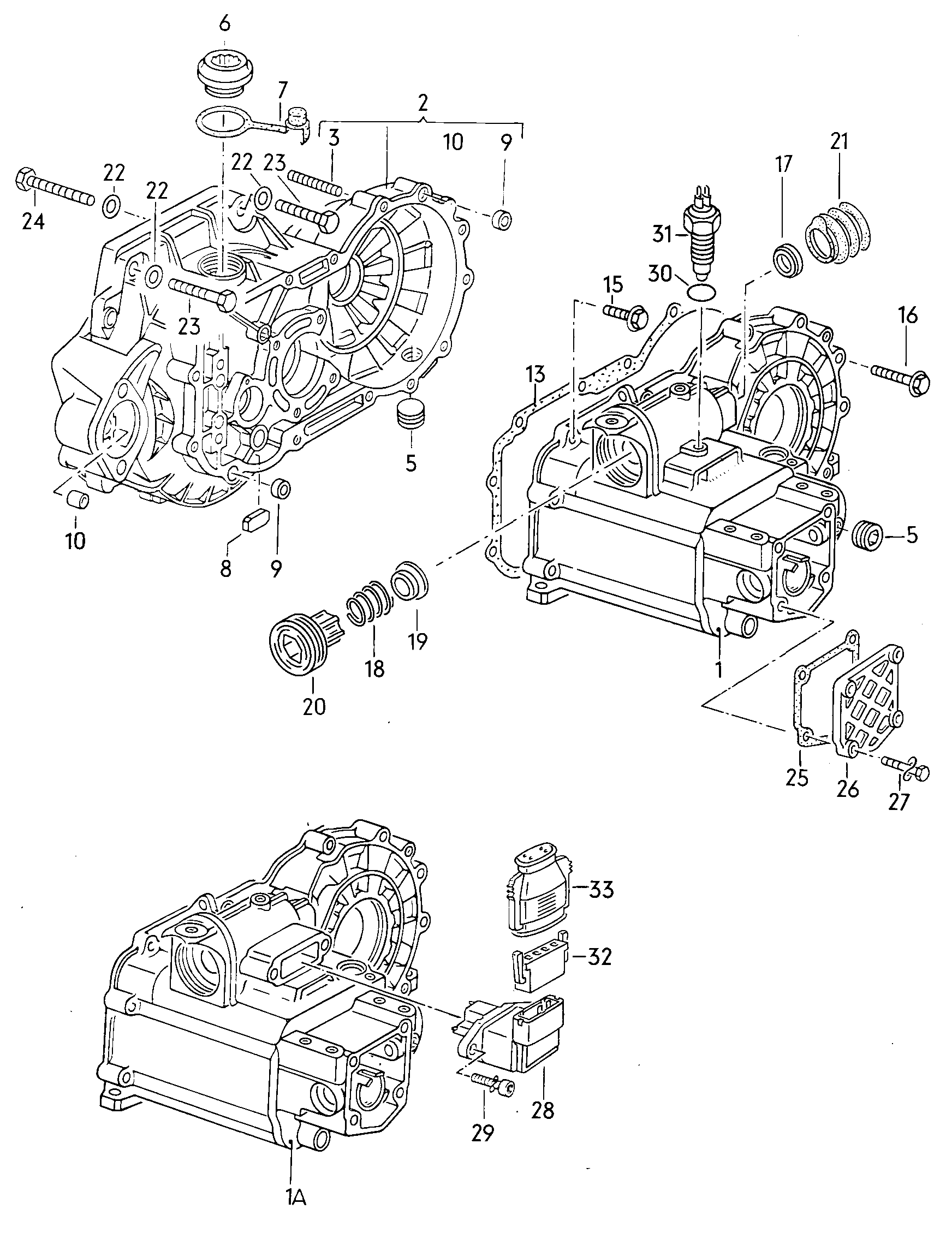

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Gear housingfor 4-speed manual gearbox 1.5-1.7 ltr. GC,GR,1 A,GN,GZ,GL,GK,4 A
1.5-1.7 ltr.
 —
-
Hexagon bolt M 8 X 35
M 8 X 35
 N 010 247 8
-
Cover plate
 068 103 648 K
-
Cover plate
 068 103 621 E
-
bushclutch lever
 085 141 711
-
Sleevebreather assy. 12 X 30
12 X 30
 012 301 474 A
-
Sleevebreather assy. 12 X 30
12 X 30
 014 301 473
-
Cap for venting the gearbox
 014 301 485
-
Spring washer 7
7
 N 012 234 5
-
Washer 8,4 X 15 X 1,6
8,4 X 15 X 1,6
 N 011 558 11
-
Hexagon bolt M 8 X 50
M 8 X 50
 N 040 262 2
-
needle bearing -G 03 05 3>> 27 05 3 GC,GR
 020 311 373 H
-
Gasket set for manualgearbox 1 A,4 A
 020 398 001 N
-
Gasket set for manualgearbox GC,GL,GN,GZ
 020 398 001 M
-
oil strainer
 02K 301 555 A
(1)
Gear housing also use: 085 141 711012 301 474 A 014 301 485 3 R,4 R
085 141 711012 301 474 A 014 301 485
 020 301 103 AF
(1)
Gear housing G 03 05 3>> 27 05 3 also use: 020 311 373 H GC,GR
020 311 373 H
 020 301 103 AD
(1A)
Gear housing 4 A
 020 301 103 AC
(2)
clutch housing also use: >>G 13 093068 103 648 K 038 103 645 A 028 905 256068 103 621 E
>>G 13 093068 103 648 K 038 103 645 A 028 905 256068 103 621 E
 02K 301 071
(2)
clutch housing 1 A,4 A
 020 301 071 H
(24)
Seal G 01 08 3>>
 020 301 191 F
1
Gear housing G 28 05 3>> GC,GR,1 A
 020 301 103 K
1
Gear housing G >> 02 05 3 GC,GR
 020 301 103 K
10
bush 11,06 X 13,63 X 14
11,06 X 13,63 X 14
 113 301 155
13
Seal G >> 31 07 3
 020 301 191 H
15
Hexagon bolt also use: M 8 X 35 N 011 558 11
M 8 X 35 N 011 558 11
 N 010 247 8
16
Hexagon bolt also use: M 8 X 50 N 011 558 11
M 8 X 50 N 011 558 11
 N 040 262 2
17
radial shaft seal 18 X 30 X 8 GK,GR
18 X 30 X 8
 020 301 227 D
17
seal ring 18 X 30 X 8 GK,GR
18 X 30 X 8
 020 301 227 C
18
Pressure spring
 020 301 228 D
19
Oil deflector plate
 020 301 229
1A
Gear housing GN,GL,GK,GZ
 020 301 103 G
2
clutch housing use if required: 02 K 301 555 A GC,GR,GN,GLGK,GZ
02 K 301 555 A
 020 301 071 E
20
Cover
 020 301 232 A
21
Prot. sleeve for select. shaft
 020 301 261
22
Washer 13 X 24 X 2,5
13 X 24 X 2,5
 N 011 531 7
23
Hexagon bolt M 12 X 50
M 12 X 50
 N 010 491 2
24
Hexagon bolt M 12 X 58
M 12 X 58
 N 040 338 1
25
Seal
 020 141 059
26
Cover
 020 141 063
27
Hexagon bolt also use: M 7 X 25 N 012 234 5
M 7 X 25 N 012 234 5
 N 010 290 1
28
switch for gearshift andconsumption indicator-reversing light GN,GL,GK,GZ,4 A
 171 919 823 A
29
Hexagon bolt M 7 X 1,25 X 19 GN,GL,GK,GZ,4 A
M 7 X 1,25 X 19
 N 901 678 01
3
Threaded pin M 10 X 42
M 10 X 42
 N 014 503 4
30
seal ring GC,GR
 020 301 244
31
switch for reversing light also use: 357 972 752000 979 133
357 972 752000 979 133
 020 945 415 A
31
Switchfor reversing light GC,GR,1 A
 020 941 521 A
32
Flat contact housing GN,GL,GK,GZ,4 A
 171 972 507
33
Protective sleeve GN,GL,GK,GZ,4 A
 171 972 509
5
sealing plug M 24 X 1,5
M 24 X 1,5
 012 301 127 F
6
sealing plug M 36 X 1,5
M 36 X 1,5
 020 301 129 B
7
Cover cap
 020 301 132
8
Shaped magnet
 084 301 143 A
9
dowel sleeve 12 X 9,5
12 X 9,5
 020 301 153 A
9
dowel sleeve 12 X 9,5
12 X 9,5
 02M 301 153

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk1
Model years
1982 - 1983
Generation region
RDW
Generation code
007
Variant tags
petrol_8v_base
Factory group
02 Gearbox
Factory subgroup
82000

Related factory diagrams

Other published gearbox plates for the Mk1 Golf in this catalogue.

The complete Mk1 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the gear housingfor 4 speed manual gearbox diagram for the Mk1 Golf?
This diagram lists 54 OEM part numbers for the Mk1 Golf. The first three are N 010 247 8, 068 103 648 K and 068 103 621 E.
Which Mk1 Golf years and engines does this diagram cover?
This plate is from the Mk1 Golf 1982 - 1983 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk1 Golf factory parts catalogue?
The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.
