Gear housingfor 4 speed manual gearbox — Mk1 Golf Gearbox (1981)

Factory title: Volkswagen Golf (1981) - Gear housing. for 4-speed manual gearbox

Generation: Mk1 1981 (RDW) Group: Gearbox Rebuild step 9 Parts: 34 Primary OEM: N 012 234 5, N 011 558 11, 02K 301 555 A

Gear housingfor 4 speed manual gearbox for the Volkswagen Golf Mk1 (1981): factory exploded diagram 82000 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 33 OEM part numbers across 34 catalogued positions including N 012 234 5, N 011 558 11 and 02K 301 555 A. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 33 OEM part numbers across 34 numbered positions.

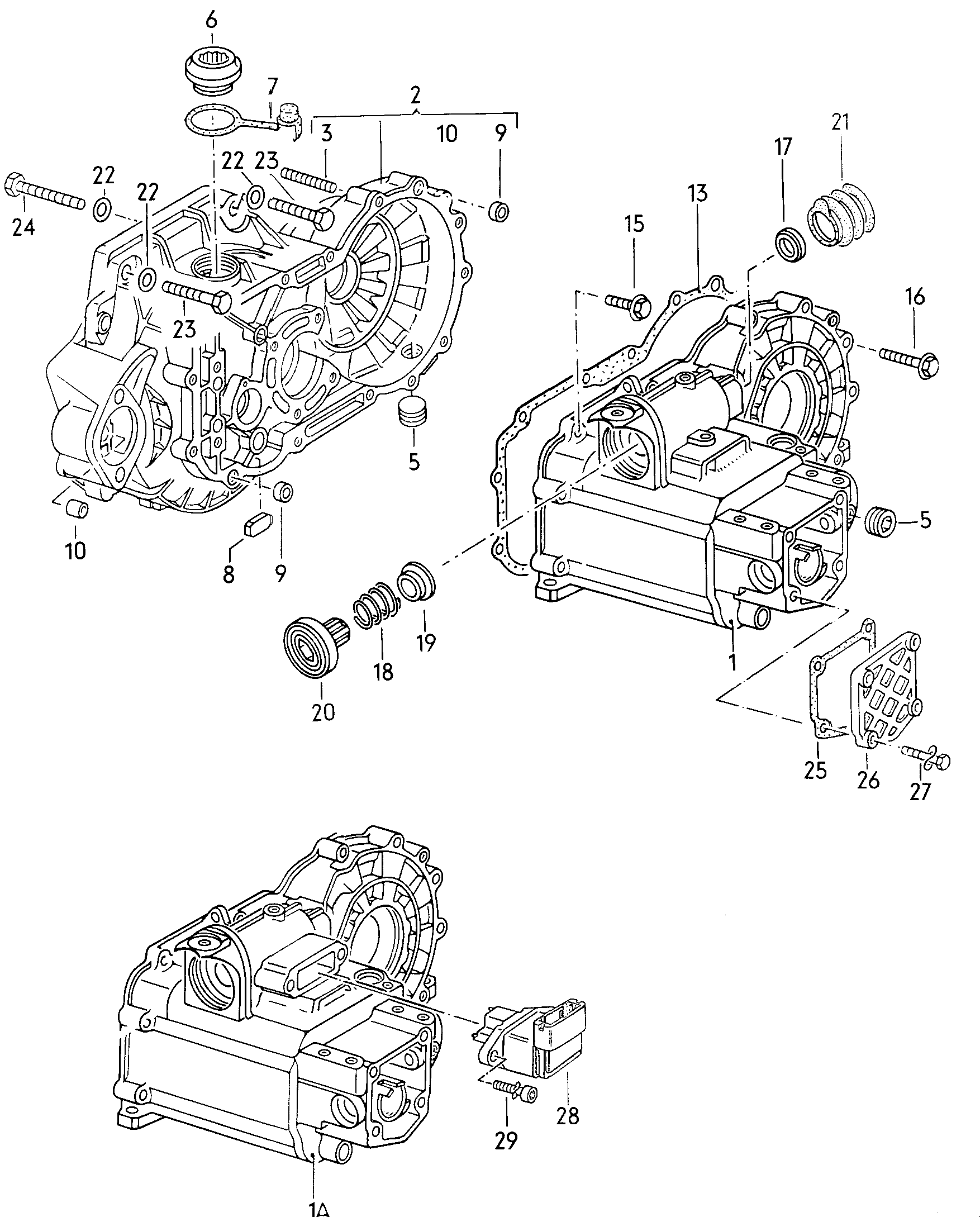

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Gear housingfor 4-speed manual gearbox 1.5-1.7 ltr. GC,GR,GN,GL,GK,GP 1.5-1.7 ltr.	—
-	Spring washer 7 7	N 012 234 5
-	Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6	N 011 558 11
-	oil strainer	02K 301 555 A
(15)	Hexagon bolt also use: M 8 X 35 N 011 558 11 M 8 X 35 N 011 558 11	N 010 247 8
(21)	Prot. sleeve for select. shaft G 27 05 1>>	020 301 261
(27)	Hexagon bolt also use: M 7 X 25 N 012 234 5 M 7 X 25 N 012 234 5	N 010 290 3
(27)	Hexagon bolt also use: M 7 X 25 N 012 234 5 M 7 X 25 N 012 234 5	N 010 290 1
1	Gear housing GC,GR,GP	020 301 103 K
10	bush 11,06 X 13,63 X 14 11,06 X 13,63 X 14	113 301 155
13	Seal	020 301 191 H
16	Hexagon bolt also use: M 8 X 50 N 011 558 11 M 8 X 50 N 011 558 11	N 040 262 2
17	seal ring 18 X 30 X 8 18 X 30 X 8	020 301 227 C
17	radial shaft seal 18 X 30 X 8 18 X 30 X 8	020 301 227 D
18	Pressure spring	020 301 228 D
19	Oil deflector plate	020 301 229
1A	Gear housing GN,GL,GK	020 301 103 G
2	clutch housing use if required: 02 K 301 555 A 02 K 301 555 A	020 301 071 E
20	Cover	020 301 232 A
21	Prot. sleeve for select. shaft G >> 26 05 1	020 301 261 A
22	Washer 13 X 24 X 2,5 13 X 24 X 2,5	N 011 531 7
23	Hexagon bolt M 12 X 50 M 12 X 50	N 010 491 2
24	Hexagon bolt M 12 X 58 M 12 X 58	N 040 338 1
25	Seal	020 141 059
26	Cover	020 141 063
28	switch for gearshift andconsumption indicator-reversing light	171 919 823 A
29	Hexagon bolt M 7 X 1,25 X 19 GN,GL,GK M 7 X 1,25 X 19	N 901 678 01
3	Threaded pin M 10 X 42 M 10 X 42	N 014 503 4
5	sealing plug M 24 X 1,5 M 24 X 1,5	012 301 127 F
6	sealing plug M 36 X 1,5 M 36 X 1,5	020 301 129 B
7	Cover cap	020 301 132
8	Shaped magnet	084 301 143 A
9	dowel sleeve 12 X 9,5 12 X 9,5	020 301 153 A
9	dowel sleeve 12 X 9,5 12 X 9,5	02M 301 153
