Gear housingfor 4 speed manual gearbox — Mk1 Golf Gearbox (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Gear housing. for 4-speed manual gearbox

Generation: Mk1 1979 - 1980 (RDW) Group: Gearbox Rebuild step 9 Parts: 41 Primary OEM: 020 398 001 M, 02K 301 555 A, N 012 234 5

Gear housingfor 4 speed manual gearbox for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 51000 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 40 OEM part numbers across 41 catalogued positions including 020 398 001 M, 02K 301 555 A and N 012 234 5. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 40 OEM part numbers across 41 numbered positions.

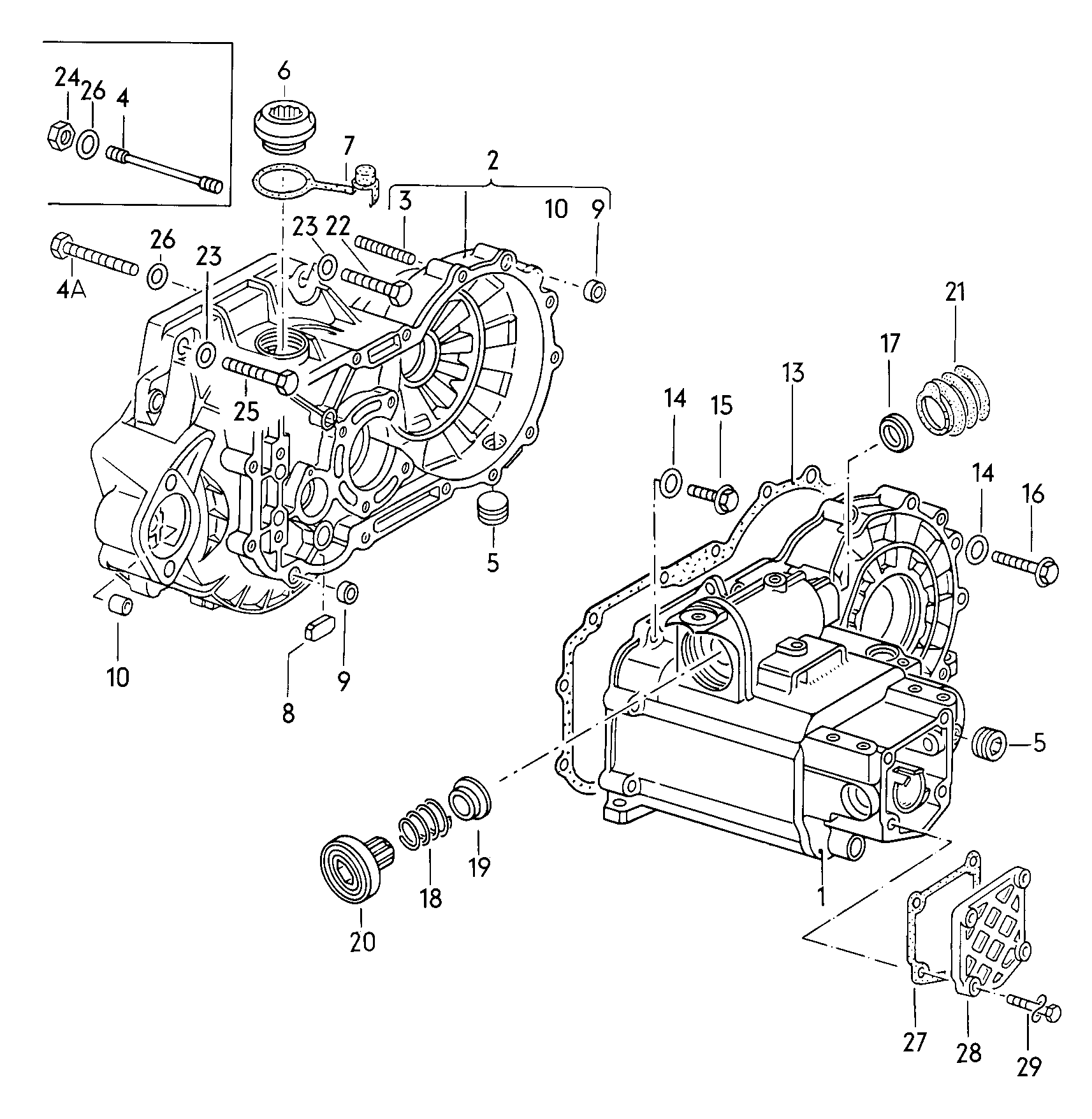

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Gear housingfor 4-speed manual gearbox 1.5/1.6 ltr. GC,GE 1.5/1.6 ltr.	—
-	Gasket set for manualgearbox	020 398 001 M
-	oil strainer	02K 301 555 A
-	Spring washer 7 7	N 012 234 5
-	Gasket set for manualgearbox	020 398 001 B
(16)	Hexagon bolt M 8 X 50 M 8 X 50	N 040 262 2
(21)	Prot. sleeve for select. shaft	020 301 261
(5)	sealing plug M 24 X 1,5 M 24 X 1,5	012 301 127 C
1	Gear housing	020 301 103 K
10	bush 11,06 X 13,63 X 14 11,06 X 13,63 X 14	113 301 155
13	Seal	020 301 191 H
13	Seal	020 301 191 B
14	Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6	N 011 558 11
14	Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6	N 011 558 6
15	Hexagon bolt M 8 X 35 M 8 X 35	N 010 247 8
17	radial shaft seal 18 X 30 X 8 18 X 30 X 8	020 301 227 D
17	seal ring 30 X 7 30 X 7	020 301 227
18	Pressure spring	020 301 228 D
19	Oil deflector plate	020 301 229
2	clutch housing use if required: 02 K 301 555 A 02 K 301 555 A	020 301 071 E
20	Cover	020 301 232 A
21	Prot. sleeve for select. shaft	020 301 261 A
22	Hexagon bolt M 12 X 50 M 12 X 50	N 010 491 2
23	Washer 13 X 24 X 2,5 13 X 24 X 2,5	N 011 531 7
24	Hexagon nut G >> 01 11 8 M 12 M 12	N 011 030 4
25	Hexagon bolt M 12 X 50 M 12 X 50	N 010 491 2
26	Washer 13 X 24 X 2,5 13 X 24 X 2,5	N 011 531 7
27	Seal	020 141 059
28	Cover	020 141 063
29	hexagon head bolt (combi) M 7 X 25 Z 3 M 7 X 25 Z 3	N 090 209 1
29	Hexagon bolt M 7 X 25 M 7 X 25	N 010 290 1
3	Threaded pin M 10 X 42 M 10 X 42	N 014 503 4
4	Threaded pin G >> 01 11 8 M 12 X 72 M 12 X 72	N 014 686 1
4A	Hexagon bolt G 02 11 8>> M 12 X 58 M 12 X 58	N 040 338 1
5	sealing plug M 24 X 1,5 M 24 X 1,5	012 301 127 F
6	sealing plug M 36 X 1,5 M 36 X 1,5	020 301 129 B
7	Cover cap	020 301 132
8	Shaped magnet	084 301 143 A
9	dowel sleeve 12 X 9,5 12 X 9,5	020 301 153 A
9	dowel sleeve 12 X 9,5 12 X 9,5	020 301 153
9	dowel sleeve 12 X 9,5 12 X 9,5	02M 301 153
