Gear housingfor 4 speed manual gearbox — Mk1 Golf Gearbox (1981)

Factory title: Volkswagen Golf (1981) - Gear housing. for 4-speed manual gearbox

Generation: Mk1 1981 (RDW) Group: Gearbox Rebuild step 9 Parts: 42 Primary OEM: N 011 525 13, N 011 525 20, 001 301 209

Gear housingfor 4 speed manual gearbox for the Volkswagen Golf Mk1 (1981): factory exploded diagram 84000 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 41 OEM part numbers across 42 catalogued positions including N 011 525 13, N 011 525 20 and 001 301 209. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 41 OEM part numbers across 42 numbered positions.

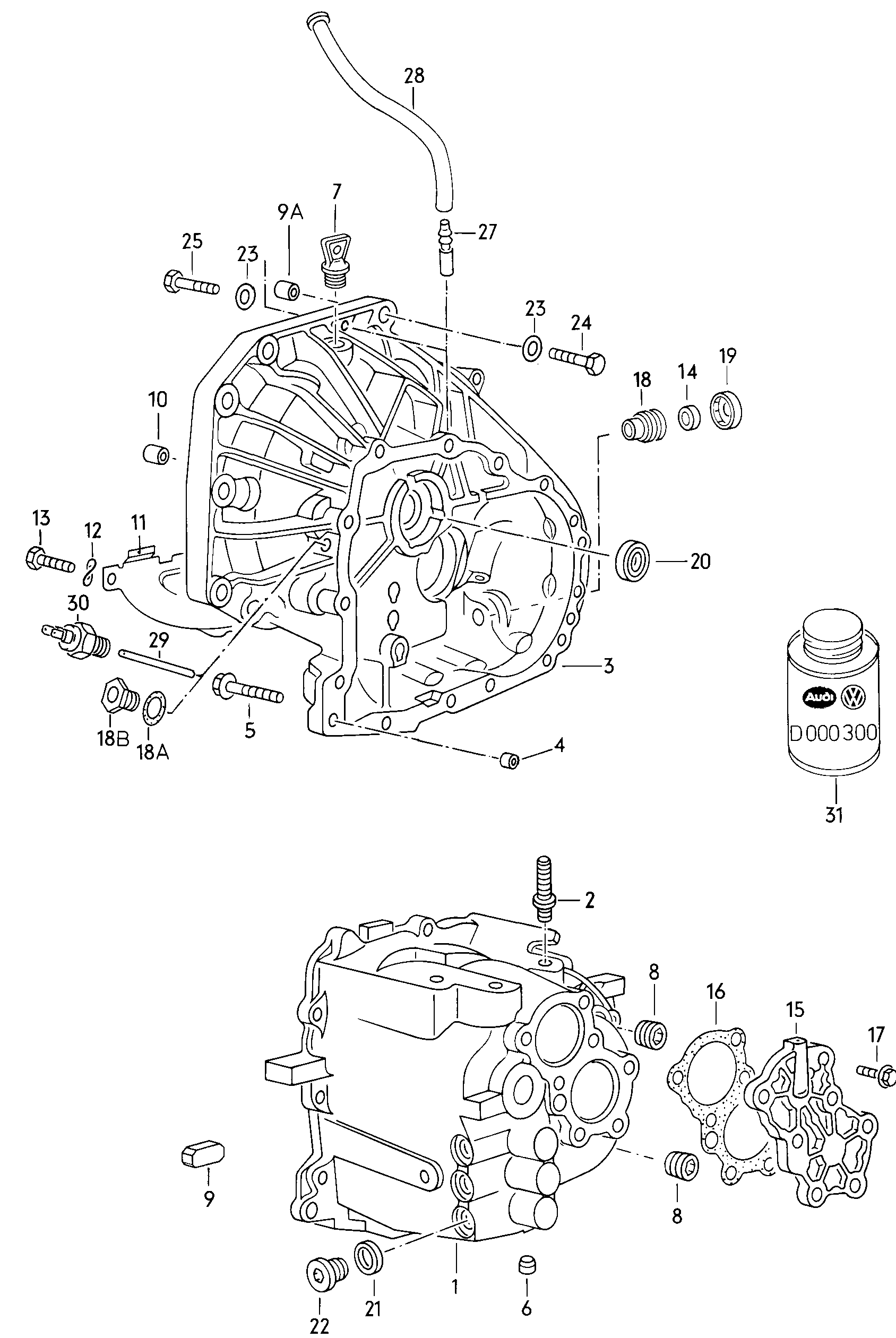

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Gear housingfor 4-speed manual gearbox 1.1/1.3 ltr. MA,QR,UZ,QP,MW,QQ,MS,QS 1.1/1.3 ltr.	—
-	Washer A 8,4 A 8,4	N 011 525 13
-	Washer A 8,4 X 16 X 1,6 A 8,4 X 16 X 1,6	N 011 525 20
(18)	guide bush G 17 09 0>>	001 301 209
(5)	Hexagon bolt also use: M 8 X 45 N 011 525 13 M 8 X 45 N 011 525 13	N 010 345 5
(5)	Hexagon bolt also use: M 8 X 45 N 011 525 20 M 8 X 45 N 011 525 20	N 010 345 10
1	Gear housing	084 301 103 B
10	Bearing bush 12,1 X 14,12 X 14 12,1 X 14,12 X 14	014 301 155
11	cover plate	084 301 159 B
11	cover plate also use: N 010 227 6 N 010 227 6	084 301 159 E
12	Spring washer 7 7	N 012 234 5
13	bolt, hexagon headself-locking M 7 X 12 M 7 X 12	N 010 227 6
14	radial shaft seal 24 X 7 24 X 7	001 301 227
14	radial shaft seal 15 X 24 X 7 15 X 24 X 7	085 301 227
15	Gearbox cover	084 301 211 E
16	gasket for cover	084 301 235 A
17	hexagon head bolt (combi) M 8 X 26 M 8 X 26	N 090 228 1
18	Bearing bush G >> 16 09 0	084 301 459 B
18A	seal ring 18 X 24 18 X 24	N 013 816 5
18B	sealing plug M 18 X 1,5 M 18 X 1,5	113 301 229 A
19	Cover G >> 16 09 0	084 301 465 B
2	stud with shoulder M 10 X 45/M 10 X 21 M 10 X 45/M 10 X 21	084 301 109
20	Shaft oil seal 23 X 35 X 6,5 23 X 35 X 6,5	084 311 113 A
21	seal ring	084 311 719
22	sealing plug M 14 X 1,5 M 14 X 1,5	N 016 027 5
23	Washer 13 X 24 X 2,5 13 X 24 X 2,5	N 011 531 7
24	Hexagon bolt M 12 X 68 M 12 X 68	N 010 493 2
25	Hexagon bolt M 12 X 58 M 12 X 58	N 040 338 1
27	ventilation union	084 301 473 C
28	Breather line	084 301 474
29	Extension pin MW,QQ,MS,QS	084 301 655
3	clutch housing also use: 113 301 229 AN 013 816 5 113 301 229 AN 013 816 5	084 301 107 G
30	switch for reversing light MW,QQ,MS,QS	084 941 521
31	housing sealing compound 80 G 80 G	D 000 200 02
31	sealant 125 G 125 G	D 454 300 A2
4	Sleeve 12 X 30 12 X 30	012 301 474 A
4	Sleeve	014 301 473
6	Sealing cap	019 301 115
7	Bungs	084 301 115
8	sealing plug M 24 X 1,5 M 24 X 1,5	012 301 127 F
9	Shaped magnet	084 301 143 A
9A	dowel sleeve 16 X 12,8 16 X 12,8	014 301 153
