Which VW part numbers are on the gear housingfor 5 speed manual transmiss diagram for the Mk1 Golf?

This diagram lists 40 OEM part numbers for the Mk1 Golf. The first three are 02K 301 555 A, 020 311 579 and N 903 543 01.

Which Mk1 Golf years and engines does this diagram cover?

This plate is from the Mk1 Golf 1981 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk1 Golf factory parts catalogue?

The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.

Gear housingfor 5 speed manual transmiss — Mk1 Golf Gearbox (1981)

Factory title: Volkswagen Golf (1981) - Gear housing. for 4-speed manual gearbox

Generation: Mk1 1981 (RDW) Group: Gearbox Rebuild step 9 Parts: 41 Primary OEM: 02K 301 555 A, 020 311 579, N 903 543 01

Gear housingfor 5 speed manual transmiss for the Volkswagen Golf Mk1 (1981): factory exploded diagram 83000 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 40 OEM part numbers across 41 catalogued positions including 02K 301 555 A, 020 311 579 and N 903 543 01. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 40 OEM part numbers across 41 numbered positions.

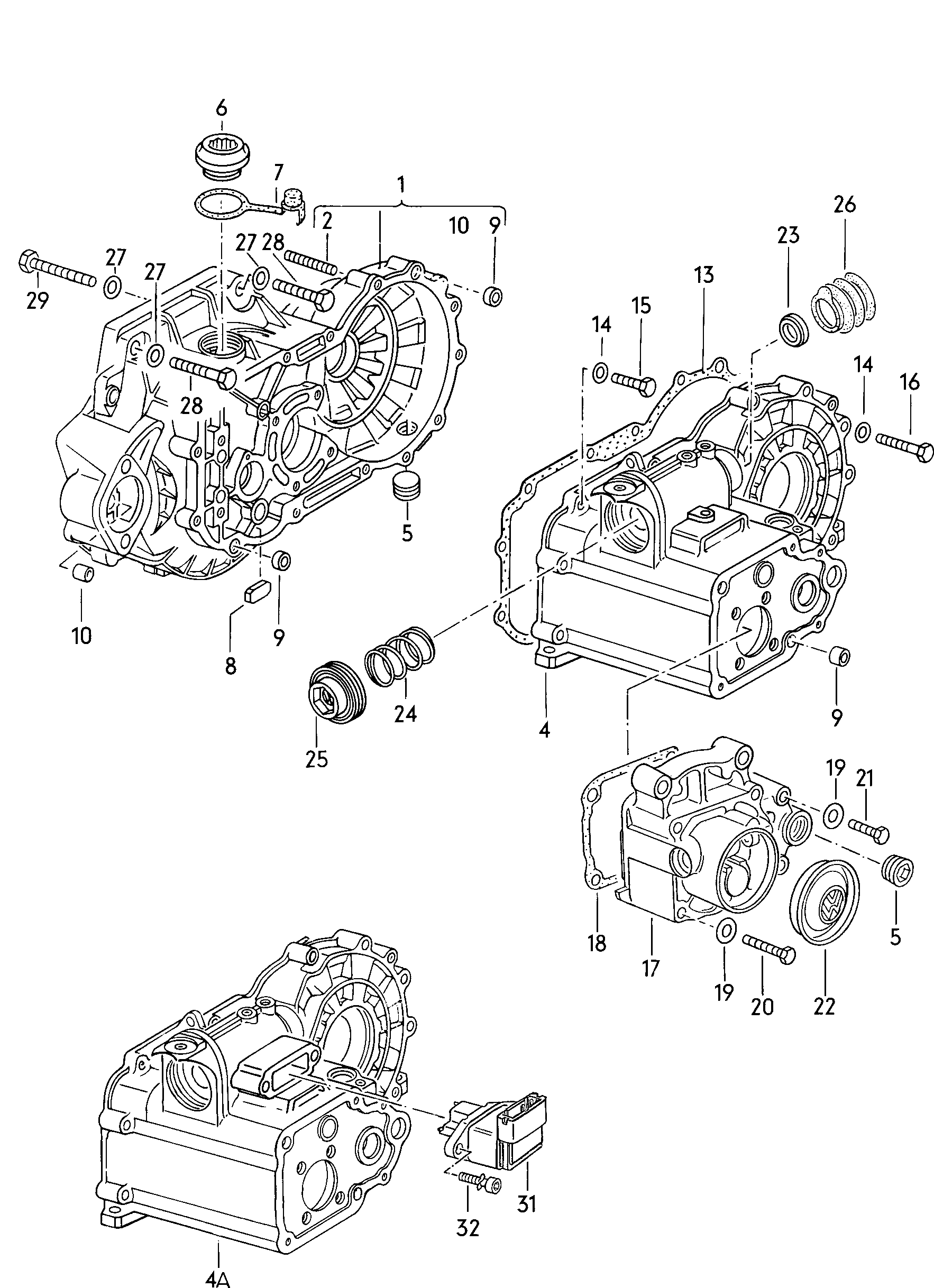

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Gear housingfor 5 speed manual transmiss. 1.5-1.7 ltr. FF,FM,FD,FH,FN,FJ,FK 1.5-1.7 ltr.	—
-	oil strainer	02K 301 555 A
-	spacer sleeve	020 311 579
-	O-ring 45,7 X 1,5 45,7 X 1,5	N 903 543 01
-	Selector fork	020 311 562 E
(23)	radial shaft seal 18 X 30 X 8 18 X 30 X 8	020 301 227 D
(26)	Prot. sleeve for select. shaft G 05 01 1>>	020 301 261
(9)	dowel sleeve 12 X 9,5 12 X 9,5	02M 301 153
1	clutch housing use if required: 02 K 301 555 A 02 K 301 555 A	020 301 071 E
10	bush 11,06 X 13,63 X 14 11,06 X 13,63 X 14	113 301 155
13	Seal	020 301 191 H
14	Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6	N 011 558 11
15	Hexagon bolt M 8 X 35 M 8 X 35	N 010 247 8
16	Hexagon bolt M 8 X 50 M 8 X 50	N 040 262 2
17	Cover also use: 020 311 562 E 020 311 579 020 311 562 E 020 311 579	020 301 205 A
17	Cover	020 301 211 C
18	Seal	020 301 215 C
19	Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6	N 011 558 11
2	Threaded pin M 10 X 42 M 10 X 42	N 014 503 4
20	Hexagon bolt M 8 X 85 M 8 X 85	N 010 385 7
21	Hexagon bolt M 8 X 62 M 8 X 62	N 010 377 1
21	Hexagon bolt M 8 X 62 M 8 X 62	N 010 377 6
22	End cap	020 141 073 A
23	radial shaft seal 18 X 30 X 8 18 X 30 X 8	020 301 227 F
24	Pressure spring	020 301 228 F
24	Pressure spring	020 301 228 G
25	Cover also use: M 60 X 1 N 903 543 01 M 60 X 1 N 903 543 01	020 301 232 E
26	Prot. sleeve for select. shaft G >> 19 12 0	020 301 261 A
27	Washer 13 X 24 X 2,5 13 X 24 X 2,5	N 011 531 7
28	Hexagon bolt M 12 X 50 M 12 X 50	N 010 491 2
29	Hexagon bolt M 12 X 58 M 12 X 58	N 040 338 1
31	switch for gearshift andconsumption indicator-reversing light	171 919 823
32	Hexagon bolt M 7 X 1,25 X 19 FN,FJ,FK M 7 X 1,25 X 19	N 901 678 01
4	Gear housing FH,FF,FD,FM	020 301 103 F
4A	Gear housing FJ,FK,FN	020 301 103 H
5	sealing plug M 24 X 1,5 M 24 X 1,5	012 301 127 F
6	sealing plug M 36 X 1,5 M 36 X 1,5	020 301 129 B
7	Cover cap	020 301 132
8	Shaped magnet	084 301 143 A
9	dowel sleeve 12 X 9,5 12 X 9,5	02M 301 153 A
9	dowel sleeve 12 X 9,5 12 X 9,5	020 301 153 A
