Gear housingfor 5 speed manual transmiss — Mk1 Golf Gearbox (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Gear housing. for 4-speed manual gearbox

Generation: Mk1 1979 - 1980 (RDW) Group: Gearbox Rebuild step 9 Parts: 45 Primary OEM: 02K 301 555 A, 020 398 001 M, 020 398 001 C

Gear housingfor 5 speed manual transmiss for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 51010 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 44 OEM part numbers across 45 catalogued positions including 02K 301 555 A, 020 398 001 M and 020 398 001 C. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 44 OEM part numbers across 45 numbered positions.

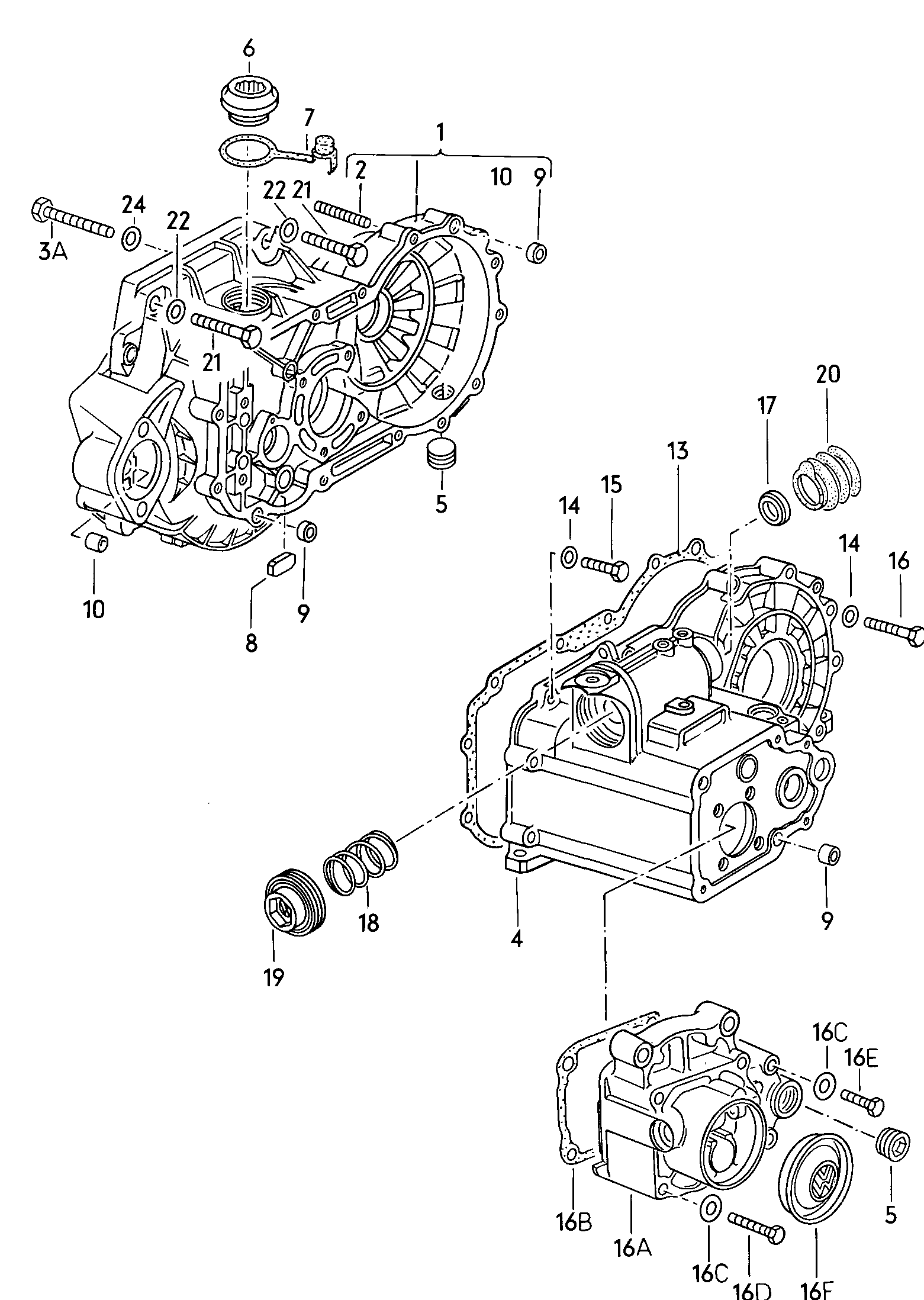

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Gear housingfor 5 speed manual transmiss. 1.5/1.6 ltr. FD,FM 1.5/1.6 ltr.	—
-	oil strainer	02K 301 555 A
-	Gasket set for manualgearbox FM	020 398 001 M
-	Gasket set for manualgearbox FD	020 398 001 C
-	Gasket set for manualgearbox FM	020 398 001 B
-	Selector fork	020 311 562 E
-	O-ring 45,7 X 1,5 45,7 X 1,5	N 903 543 01
-	spacer sleeve	020 311 579
(20)	Prot. sleeve for select. shaft	020 301 261
1	clutch housing use if required: 02 K 301 555 A 02 K 301 555 A	020 301 071 E
10	bush 11,06 X 13,63 X 14 11,06 X 13,63 X 14	113 301 155
13	Seal	020 301 191 H
13	Seal	020 301 191 B
14	Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6	N 011 558 11
14	Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6	N 011 558 6
15	Hexagon bolt M 8 X 35 M 8 X 35	N 010 247 8
16	Hexagon bolt M 8 X 50 M 8 X 50	N 040 262 2
16A	Cover also use: 020 311 562 E 020 311 579 020 311 562 E 020 311 579	020 301 205 A
16A	Cover also use: 020 311 562 E 020 311 579 020 311 562 E 020 311 579	020 301 211 A
16B	Seal	020 301 215 C
16B	Seal	020 301 215 A
16C	Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6	N 011 558 11
16D	Hexagon bolt M 8 X 85 M 8 X 85	N 010 385 7
16E	Hexagon bolt M 8 X 62 M 8 X 62	N 010 377 1
16F	End cap	020 141 073 A
17	seal ring 30 X 7 30 X 7	020 301 227
17	radial shaft seal 18 X 30 X 8 18 X 30 X 8	020 301 227 D
18	Pressure spring	020 301 228 G
18	Pressure spring	020 301 228 C
19	Cover also use: M 60 X 1 N 903 543 01 M 60 X 1 N 903 543 01	020 301 232 E
19	Cover	020 301 232 C
2	Threaded pin M 10 X 42 M 10 X 42	N 014 503 4
20	Prot. sleeve for select. shaft	020 301 261 A
21	Hexagon bolt M 12 X 50 M 12 X 50	N 010 491 2
22	Washer 13 X 24 X 2,5 13 X 24 X 2,5	N 011 531 7
24	Washer 13 X 24 X 2,5 13 X 24 X 2,5	N 011 531 7
3A	Hexagon bolt M 12 X 58 M 12 X 58	N 040 338 1
4	Gear housing	020 301 103 F
5	sealing plug M 24 X 1,5 M 24 X 1,5	012 301 127 F
6	sealing plug M 36 X 1,5 M 36 X 1,5	020 301 129 B
7	Cover cap	020 301 132
8	Shaped magnet	084 301 143 A
9	dowel sleeve 12 X 9,5 12 X 9,5	020 301 153 A
9	dowel sleeve 12 X 9,5 12 X 9,5	020 301 153
9	dowel sleeve 12 X 9,5 12 X 9,5	02M 301 153
