Gears shafts 4 speed manual transmission — Mk1 Golf Gearbox (1981)

Factory title: Volkswagen Golf (1981) - 4-speed manual transmission. gears and shafts

Generation: Mk1 1981 (RDW) Group: Gearbox Rebuild step 9 Parts: 80 Primary OEM: 020 311 149 G, 014 311 285 E, 020 311 131 E

Gears shafts 4 speed manual transmission for the Volkswagen Golf Mk1 (1981): factory exploded diagram 86000 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 79 OEM part numbers across 80 catalogued positions including 020 311 149 G, 014 311 285 E and 020 311 131 E. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 79 OEM part numbers across 80 numbered positions.

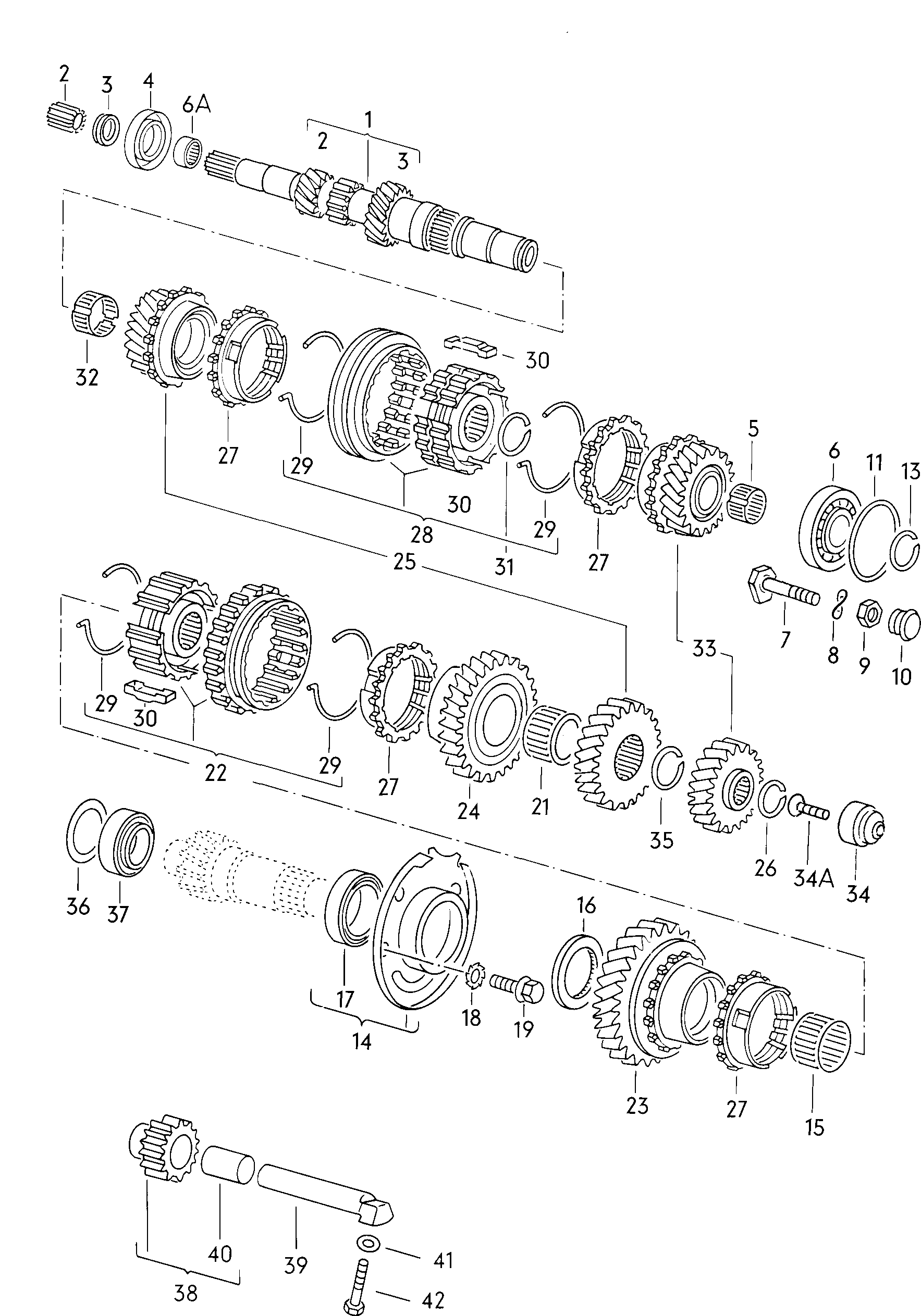

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
gears and shafts 4-speed manual transmission 1.5-1.7 ltr. GC,GR,GN,GL,GK,GP
1.5-1.7 ltr.
 —
-
change gear Z=26/37 GL,GP
Z=26/37
 020 311 149 G
-
change gear Z=36/28 GC,GR,GN,GK
Z=36/28
 014 311 285 E
-
change gear Z=33/31 GL,GP
Z=33/31
 020 311 131 E
-
change gear Z=30/33 GC,GR,GN,GK
Z=30/33
 014 311 351 C
(1)
Input shaft Z=11+20 GL,GP
Z=11+20
 020 311 101 H
(11)
adjusting washer 0,6
0,6
 020 409 231 D
(24)
change gear Z=35/20 GL,GP
Z=35/20
 020 311 261 E
(25)
gear also use: Z=33/31020 311 131 E GL,GP
Z=33/31020 311 131 E
 020 311 285 F
(25)
gear also use: Z=36/28014 311 285 E GC,GR,GN,GK
Z=36/28014 311 285 E
 020 311 285 A
(33)
gear also use: Z=26/37020 311 149 G GL,GP
Z=26/37020 311 149 G
 020 311 351 H
(35)
Securing ring 24 X 3
24 X 3
 020 311 381 E
(35)
Securing ring 24 X 2,9
24 X 2,9
 020 311 381 D
(35)
Securing ring 24 X 2,7
24 X 2,7
 020 311 381 B
(35)
Securing ring 24 X 2,8
24 X 2,8
 020 311 381 C
(35)
Securing ring 24 X 2,6
24 X 2,6
 020 311 381 A
(36)
adjusting washer 0,95
0,95
 020 311 391 D
(36)
adjusting washer 0,8
0,8
 020 311 391 A
(36)
adjusting washer 0,85
0,85
 020 311 391 B
(36)
adjusting washer 0,9
0,9
 020 311 391 C
(36)
adjusting washer 1
1
 020 311 391 E
(36)
adjusting washer 1,05
1,05
 020 311 391 F
(36)
adjusting washer 1,1
1,1
 020 311 391 G
(36)
adjusting washer 1,15
1,15
 020 311 391 H
(36)
adjusting washer 1,2
1,2
 020 311 391 J
(36)
adjusting washer 1,25
1,25
 020 311 391 K
(36)
adjusting washer 1,3
1,3
 020 311 391 L
(36)
adjusting washer 1,35
1,35
 020 311 391 M
(36)
adjusting washer 1,4
1,4
 020 311 391 N
(36)
adjusting washer 0,65
0,65
 020 311 391 P
(36)
adjusting washer 0,7
0,7
 020 311 391 Q
(38)
reverse gear
 020 311 501 B
1
Input shaft Z=11+18 GC,GR,GN,GK
Z=11+18
 020 311 101 A
10
Cover cap
 020 311 137
11
adjusting washer 0,3
0,3
 020 409 231 A
13
Securing ring
 020 311 187
14
mounting with taper rollerbearing
 020 311 206
15
needle bearing - K 32 X 37 X 27,7
K 32 X 37 X 27,7
 020 311 213
16
thrust washer
 020 311 221 A
17
Taper roller bearing
 411 501 283 E
18
Toothed washer 8,4
8,4
 N 012 132 2
19
Hexagon bolt M 8 X 45
M 8 X 45
 N 901 733 01
19
Hexagon bolt M 8 X 45
M 8 X 45
 N 901 733 02
2
guide bush
 020 311 107 D
2
guide bush
 020 311 107 C
21
needle bearing -
 020 311 228
22
synchronizing hub
 020 311 239 B
22
synchronizing hub
 020 311 239 E
23
change gear Z=38/11
Z=38/11
 020 311 257
24
change gear Z=35/18 GC,GR,GN,GK
Z=35/18
 020 311 261 A
24
change gear Z=35/18 GC,GR,GN,GK
Z=35/18
 020 311 261 L
26
Securing ring 20 X 2,5
20 X 2,5
 113 311 287
27
synchronizer ring
 014 311 295 D
27
synchronizer ring
 014 311 295 E
28
synchronizing hub
 020 311 301 A
29
Spring
 014 311 311 C
3
seal ring 14 X 4
14 X 4
 020 311 108 A
30
locking piece
 014 311 313
31
Securing ring
 014 311 317
32
needle bearing -
 014 311 325 A
33
gear also use: Z=30/33014 311 351 C GC,GR,GN,GK
Z=30/33014 311 351 C
 020 311 351 K
34
needle bearing -
 020 311 373 B
34A
oval head countersunk bolt M 5 X 16
M 5 X 16
 N 900 856 01
35
Securing ring 24 X 2,5
24 X 2,5
 020 311 381
36
adjusting washer 0,75
0,75
 020 311 391
37
Taper roller bearing 29 X 50,29 X 14,73
29 X 50,29 X 14,73
 311 405 625 E
37
Taper roller bearing 29 X 50,29 X 14,73
29 X 50,29 X 14,73
 311 405 625 F
38
reverse gear
 02K 311 501 A
38
reverse gear
 020 311 501 A
39
reverse gear idler spindle
 020 311 515 D
4
radial shaft seal 40 X 8
40 X 8
 020 311 113
40
fush for reverse gear
 014 311 533
41
seal ring 8 X 13
8 X 13
 N 043 804 3
42
Hexagon bolt M 8 X 28 X 21,5
M 8 X 28 X 21,5
 N 900 422 01
5
needle bearing - K 27 X 32 X 23
K 27 X 32 X 23
 014 311 115 D
6
grooved ball bearing
 020 311 123 B
6A
needle bearing - 22 X 30 X 18
22 X 30 X 18
 002 311 125 A
7
bolt
 020 311 135 D
8
Spring washer 7
7
 N 012 234 5
9
Hexagon nut M 7
M 7
 N 011 007 7

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these gearbox diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk1
Model years
1981
Generation region
RDW
Generation code
026
Variant tags
petrol_8v_base
Factory group
02 Gearbox
Factory subgroup
86000

Related factory diagrams

Other published gearbox plates for the Mk1 Golf in this catalogue.

The complete Mk1 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the gears shafts 4 speed manual transmission diagram for the Mk1 Golf?
This diagram lists 79 OEM part numbers for the Mk1 Golf. The first three are 020 311 149 G, 014 311 285 E and 020 311 131 E.
Which Mk1 Golf years and engines does this diagram cover?
This plate is from the Mk1 Golf 1981 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk1 Golf factory parts catalogue?
The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.
