Gears shafts 5 speed manual transmission — Mk1 Golf Gearbox (1981)

Factory title: Volkswagen Golf (1981) - 4-speed manual transmission. gears and shafts

Generation: Mk1 1981 (RDW) Group: Gearbox Rebuild step 9 Parts: 93 Primary OEM: 020 311 131 D, 020 311 149 F, 020 311 131 B

Gears shafts 5 speed manual transmission for the Volkswagen Golf Mk1 (1981): factory exploded diagram 87000 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 92 OEM part numbers across 93 catalogued positions including 020 311 131 D, 020 311 149 F and 020 311 131 B. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 92 OEM part numbers across 93 numbered positions.

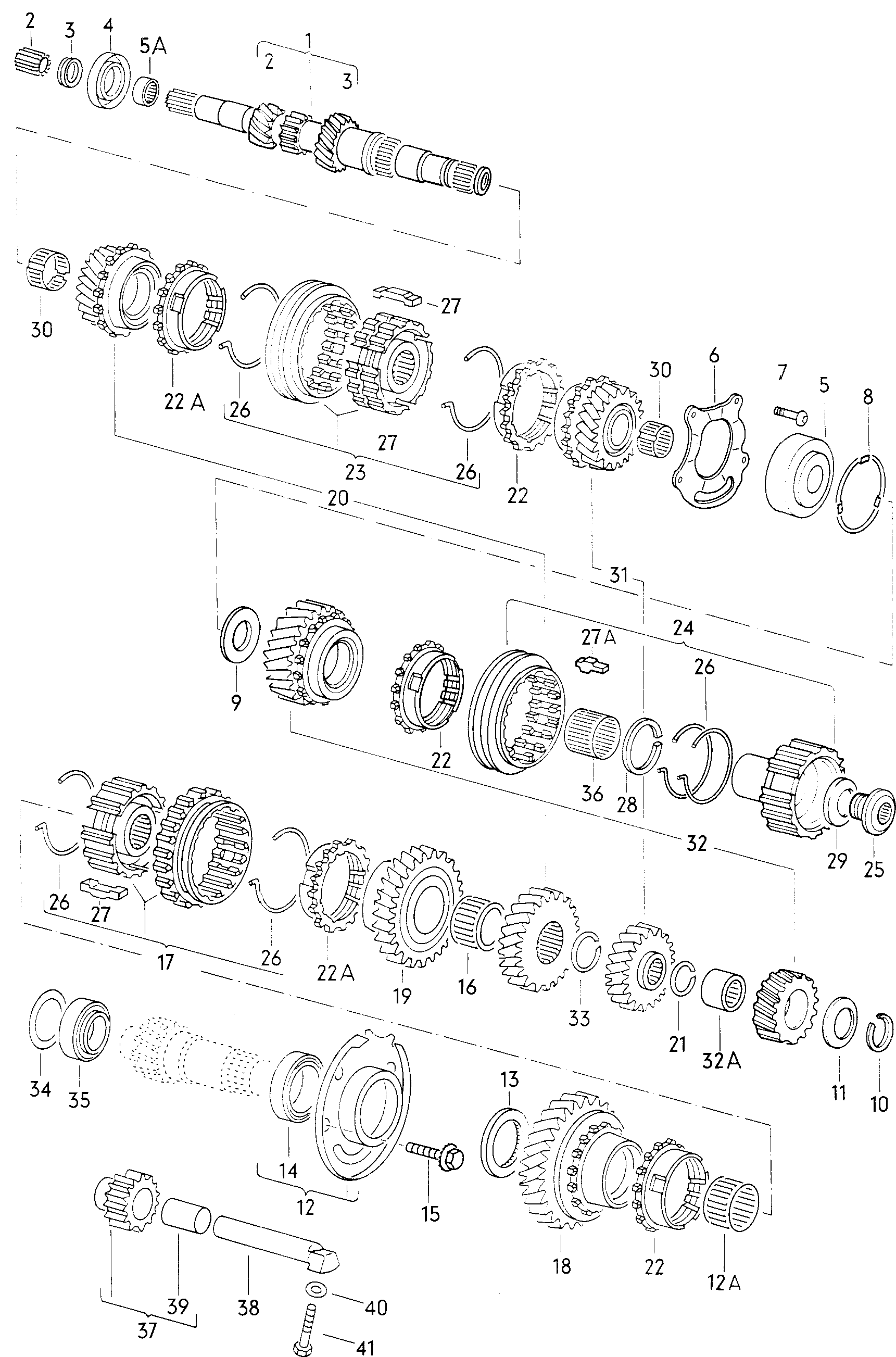

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
gears and shafts 5-speed manual transmission 1.5-1.7 ltr. FF,FM,FD,FH,FN,FJ,FK
1.5-1.7 ltr.
 —
-
change gear Z=39/27 FM,FD,FK
Z=39/27
 020 311 131 D
-
change gear Z=35/31 FM,FD,FK
Z=35/31
 020 311 149 F
-
change gear Z=36/28 FF,FN,FH,FJ
Z=36/28
 020 311 131 B
-
change gear Z=31/34 FM,FK,FD
Z=31/34
 020 311 159 D
-
change gear Z=27/38 FF,FN,FH,FJ
Z=27/38
 020 311 159 F
-
change gear Z=30/33 FF,FN,FH,FJ
Z=30/33
 020 311 149 H
(1)
Input shaft also use: Z=11+17020 311 123 N FM,FD,FK
Z=11+17020 311 123 N
 020 311 101 T
(19)
change gear Z=36/17 FM,FD,FK
Z=36/17
 020 311 261 K
(20)
gear also use: Z=39/27020 311 131 D FM,FD,FK
Z=39/27020 311 131 D
 020 311 285 E
(20)
gear also use: Z=36/28020 311 131 B FF,FH,FJ,FN
Z=36/28020 311 131 B
 020 311 285 A
(31)
gear also use: Z=35/31020 311 149 F FM,FD,FK
Z=35/31020 311 149 F
 020 311 351 G
(32)
gear also use: Z=31/34020 311 159 D FM,FD,FK
Z=31/34020 311 159 D
 020 311 361 D
(33)
Securing ring 24 X 2,8
24 X 2,8
 020 311 381 C
(33)
Securing ring 24 X 3
24 X 3
 020 311 381 E
(33)
Securing ring 24 X 2,7
24 X 2,7
 020 311 381 B
(33)
Securing ring 24 X 2,9
24 X 2,9
 020 311 381 D
(33)
Securing ring 24 X 2,6
24 X 2,6
 020 311 381 A
(34)
adjusting washer 0,85
0,85
 020 311 391 B
(34)
adjusting washer 0,8
0,8
 020 311 391 A
(34)
adjusting washer 0,9
0,9
 020 311 391 C
(34)
adjusting washer 0,95
0,95
 020 311 391 D
(34)
adjusting washer 1
1
 020 311 391 E
(34)
adjusting washer 1,05
1,05
 020 311 391 F
(34)
adjusting washer 1,1
1,1
 020 311 391 G
(34)
adjusting washer 1,15
1,15
 020 311 391 H
(34)
adjusting washer 1,2
1,2
 020 311 391 J
(34)
adjusting washer 1,25
1,25
 020 311 391 K
(34)
adjusting washer 1,3
1,3
 020 311 391 L
(34)
adjusting washer 1,35
1,35
 020 311 391 M
(34)
adjusting washer 1,4
1,4
 020 311 391 N
(34)
adjusting washer 0,65
0,65
 020 311 391 P
(34)
adjusting washer 0,7
0,7
 020 311 391 Q
(5)
grooved ball bearing 26 X 68 X 21,6 FD,FM,FK
26 X 68 X 21,6
 020 311 123 N
(8)
adjusting washer 0,6
0,6
 020 311 140 A
1
Input shaft Z=11+18 FF,FH,FN,FJ
Z=11+18
 020 311 101 D
1
Input shaft also use: Z 11+17020 311 123 N FM,FD,FK
Z 11+17020 311 123 N
 020 311 101 M
10
Securing ring 16,1 X 2
16,1 X 2
 N 901 060 01
11
Washer
 020 311 191 A
12
mounting with taper rollerbearing
 020 311 206
12A
needle bearing - K 32 X 37 X 27,7
K 32 X 37 X 27,7
 020 311 213
13
thrust washer
 020 311 221 A
14
Taper roller bearing
 411 501 283 E
15
Hexagon bolt M 8 X 45
M 8 X 45
 N 901 733 02
15
Hexagon bolt BM 8 X 45
BM 8 X 45
 N 901 733 01
16
needle bearing -
 020 311 228
17
synchronizing hub
 020 311 239 E
17
synchronizing hub
 020 311 239 B
18
change gear Z=38/11
Z=38/11
 020 311 257
19
change gear Z=35/18 FF,FH,FN,FJ
Z=35/18
 020 311 261 L
19
change gear Z=35/18 FF,FH,FN,FJ
Z=35/18
 020 311 261 A
2
guide bush
 020 311 107 D
2
guide bush
 020 311 107 C
21
Securing ring 20 X 2,5
20 X 2,5
 113 311 287
22
synchronizer ring
 014 311 295 D
22
synchronizer ring
 014 311 295 E
22A
synchronizer ring
 014 311 295 E
23
synchronizing hub
 020 311 301 C
23
synchronizing hub
 020 311 301 D
24
synchronizing hub
 020 311 303 F
24
synchronizing hub
 020 311 303 G
25
Threaded sleeve with multi-point socket drive
 020 311 308 C
26
Spring
 014 311 311 C
27
locking piece
 014 311 313
27A
locking piece
 020 311 313 A
28
Securing ring
 091 311 321
29
Belleville spring 18 X 34 X 2,8
18 X 34 X 2,8
 020 311 324 B
3
seal ring 14 X 4
14 X 4
 020 311 108 A
30
needle bearing - K 32 X 37 X 24,8
K 32 X 37 X 24,8
 020 311 325 C
31
gear also use: Z=30/33020 311 149 H FF,FN,FH,FJ
Z=30/33020 311 149 H
 020 311 351 K
32
gear also use: Z=27/38020 311 159 F FF,FN,FH,FJ
Z=27/38020 311 159 F
 020 311 361 F
32A
needle bearing -
 020 311 373 D
33
Securing ring 24 X 2,5
24 X 2,5
 020 311 381
34
adjusting washer 0,75
0,75
 020 311 391
35
Taper roller bearing 29 X 50,29 X 14,73
29 X 50,29 X 14,73
 311 405 625 E
35
Taper roller bearing 29 X 50,29 X 14,73
29 X 50,29 X 14,73
 311 405 625 F
36
Needle cage K 35 X 40 X 23,8
K 35 X 40 X 23,8
 02A 311 265
36
needle bearing - K 35 X 40 X 23,8
K 35 X 40 X 23,8
 02A 311 265 D
37
reverse gear
 02K 311 501 A
37
reverse gear
 020 311 501 B
37
reverse gear
 020 311 501 A
38
reverse gear idler spindle
 020 311 515 D
39
fush for reverse gear
 014 311 533
4
radial shaft seal 40 X 8
40 X 8
 020 311 113
40
seal ring 8 X 13
8 X 13
 N 043 804 3
41
Hexagon bolt M 8 X 28 X 21,5
M 8 X 28 X 21,5
 N 900 422 01
5
grooved ball bearing 25 X 68 X 21,6 FF,FM,FD,FH,FN,FJ,FK
25 X 68 X 21,6
 020 311 123 J
5A
needle bearing - 22 X 30 X 18
22 X 30 X 18
 002 311 125 A
6
prestressed panel
 020 311 136 B
7
oval head countersunk bolt M 7 X 24
M 7 X 24
 N 900 751 01
7
oval head countersunk bolt M 7 X 23
M 7 X 23
 N 906 984 01
8
adjusting washer 0,3
0,3
 020 311 140
9
thrust washer
 020 311 155
