Shift rodselector shaft selector forkfor 4 speed manual — Mk1 Golf Gearbox (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - For 4-speed manual gearbox. gears and shafts

Generation: Mk1 1979 - 1980 (RDW) Group: Gearbox Rebuild step 9 Parts: 26 Primary OEM: N 900 930 01, 020 301 235 F, 020 311 549 A

Shift rodselector shaft selector forkfor 4 speed manual for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 56000 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 22 OEM part numbers across 26 catalogued positions including N 900 930 01, 020 301 235 F and 020 311 549 A. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 22 OEM part numbers across 26 numbered positions.

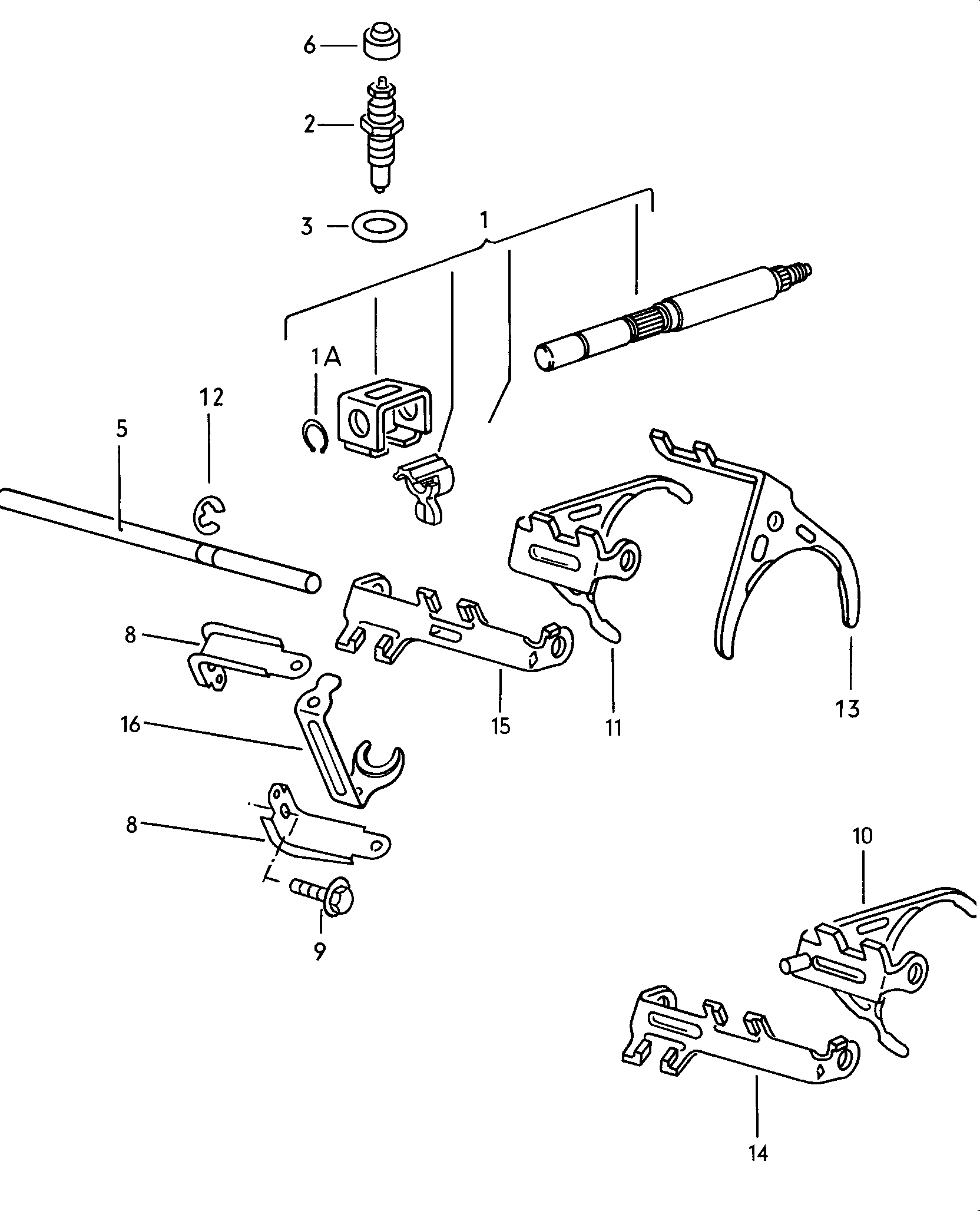

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
shift rodselector shaft Selector forkfor 4-speed manual gearbox 1.5/1.6 ltr. GC,GE
1.5/1.6 ltr.
 —
-
Hexagon bolt M 12 X 1,5 X 20
M 12 X 1,5 X 20
 N 900 930 01
1
shift rod also use: N 900 930 01
N 900 930 01
 020 301 235 F
10
Selector fork G >> 25 10 8
 020 311 549 A
11
Selector fork G 26 10 8>>
 020 311 551 E
11
Selector fork G 26 10 8>>
 020 311 551 F
12
No longer available
 —
12
Retaining washer
 020 311 554
13
Selector fork
 020 311 561 E
13
Selector fork
 020 311 561 F
14
Selector fork G >> 25 10 8 also use: 020 311 551 F 020 311 601 K
020 311 551 F 020 311 601 K
 020 311 571 G
14
Selector fork G >> 25 10 8 also use: 020 311 551 E
020 311 551 E
 020 311 571 E
15
Selector fork G 26 10 8>> also use: 020 311 601 K
020 311 601 K
 020 311 571 G
16
reverse lever
 020 311 601 E
16
reverse lever
 020 311 447 C
16
reverse lever
 020 311 601 K
1A
Securing ring 15 X 1
15 X 1
 N 012 415 1
2
No longer available
 —
2
locking screw
 020 301 241 B
3
seal ring
 020 301 244
5
selector shaft
 020 301 247
5/6
No longer available
 —
6
Cover cap
 020 301 254 A
8
Support
 020 301 429
8
Support
 020 301 429 A
9
Hexagon bolt M 7 X 15
M 7 X 15
 N 900 712 01
