Shift rodselector shaft selector forkfor 4 speed manual — Mk1 Golf Gearbox (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - For 4-speed manual gearbox. gears and shafts

Generation: Mk1 1982 - 1983 (RDW) Group: Gearbox Rebuild step 9 Parts: 22 Primary OEM: 020 311 601 K, 020 301 247 A, 020 301 235 F

Shift rodselector shaft selector forkfor 4 speed manual for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 89000 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 21 OEM part numbers across 22 catalogued positions including 020 311 601 K, 020 301 247 A and 020 301 235 F. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 21 OEM part numbers across 22 numbered positions.

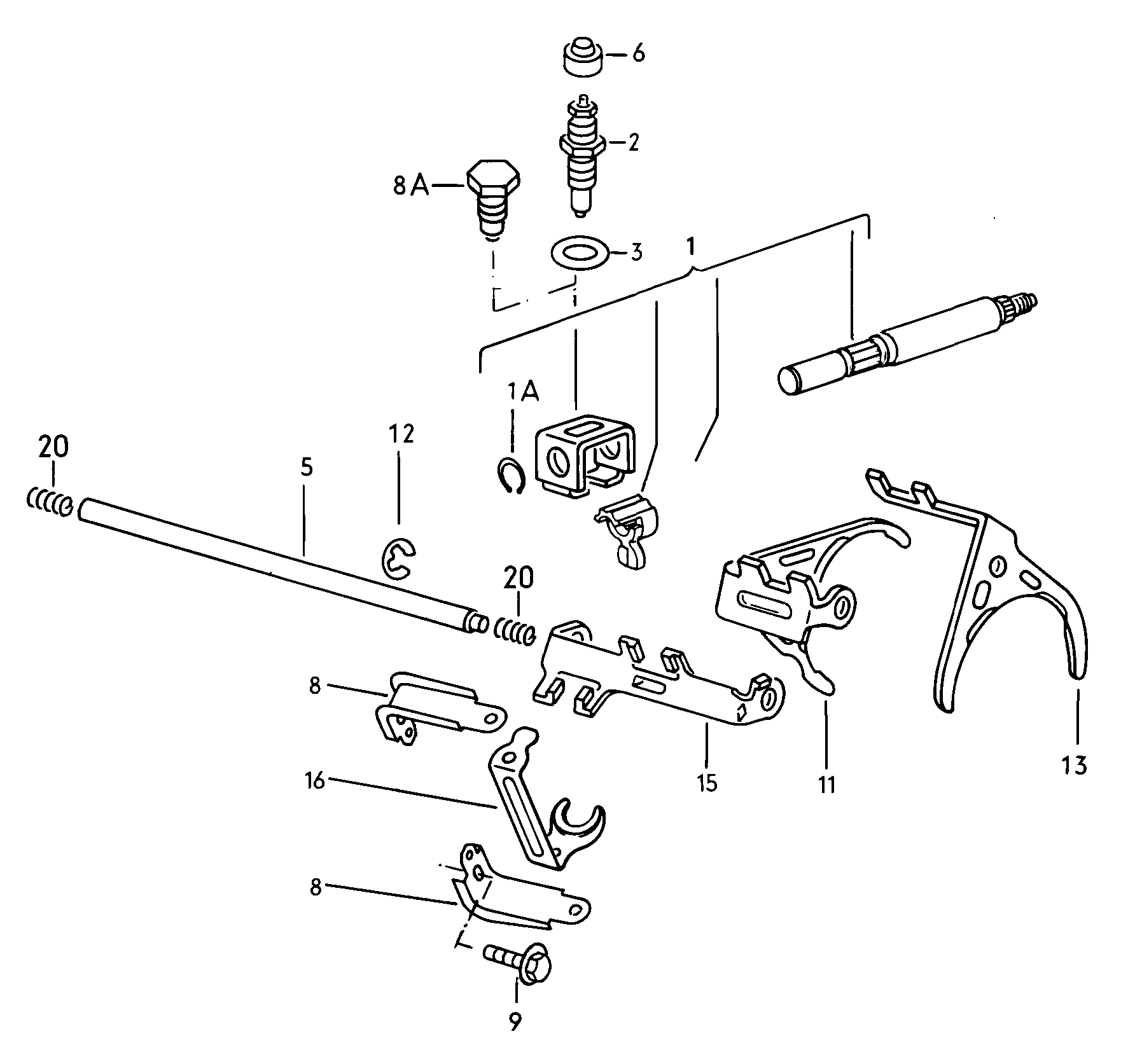

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
shift rodselector shaft Selector forkfor 4-speed manual gearbox 1.5-1.7 ltr. GC,1 A,GR,GN,GZ,GL,4 A,GK
1.5-1.7 ltr.
 —
(16)
reverse lever
 020 311 601 K
(5)
selector shaft G 01 08 2>>
 020 301 247 A
1
shift rod also use: N 900 930 01
N 900 930 01
 020 301 235 F
11
Selector fork
 020 311 551 E
11
Selector fork
 020 311 551 F
12
Retaining washer G >> 31 07 2
 020 311 554
13
Selector fork
 020 311 561 F
13
Selector fork
 020 311 561 E
15
Selector fork
 020 311 571 C
15
Selector fork also use: 020 311 601 K
020 311 601 K
 020 311 571 G
16
reverse lever
 020 311 601 K
16
reverse lever
 020 311 601 E
1A
Securing ring 15 X 1
15 X 1
 N 012 415 1
2
locking screw G >> 31 07 2 GC,GR
 020 301 241 B
20
Pressure spring
 020 311 597
3
seal ring 20,9 X 1,5 X 12,2 GC,GR
20,9 X 1,5 X 12,2
 020 301 244
5
selector shaft G >> 31 07 2
 020 301 247
6
Cover cap G >> 31 07 2 GC,GR
 020 301 254 A
8
Support
 020 301 429 A
8A
Hexagon bolt M 12 X 1,5 X 20
M 12 X 1,5 X 20
 N 900 930 01
9
Hexagon bolt M 7 X 15
M 7 X 15
 N 900 712 01
