Transmission securing parts — Mk1 Golf Gearbox (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Transmission securing parts

Generation: Mk1 1979 - 1980 (RDW) Group: Gearbox Rebuild step 9 Parts: 51 Primary OEM: 171 399 151 B, 171 199 214 H, 171 199 214 D

Transmission securing parts for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 59020 from the Volkswagen ETKA parts catalogue, group 02 Gearbox, listing 51 OEM part numbers including 171 399 151 B, 171 199 214 H and 171 199 214 D. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 51 OEM part numbers across 51 numbered positions.

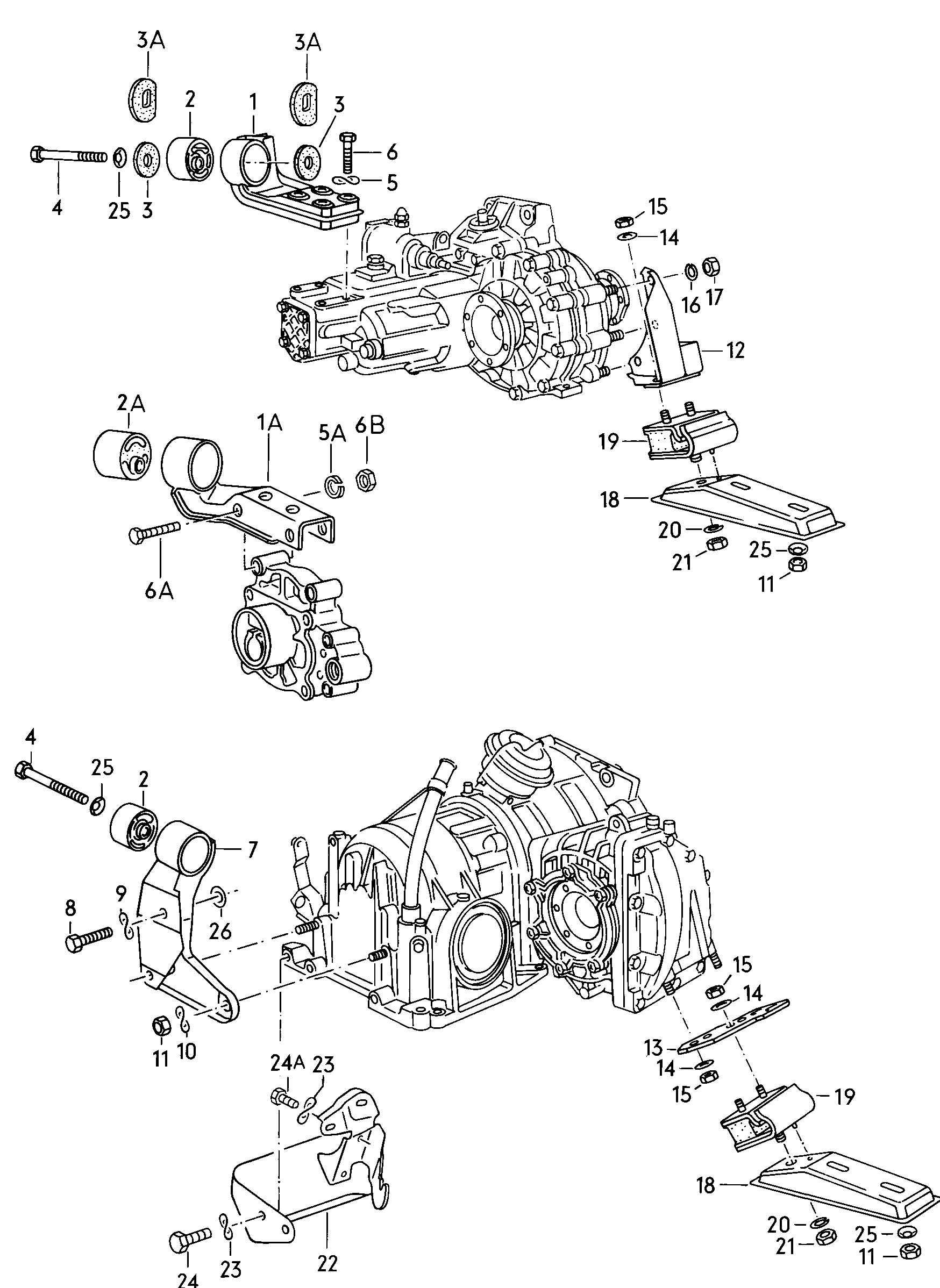

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
(19)	Bonded rubber bush DIESEL	171 399 151 B
(2)	Bonded rubber bush F 179 3000 001>>F >> 159 2810 000 F >> 179 3750 000 F >> 539 2200 000 64,4 DIESEL:CKAutomatic+GOLF GLIAutomatic+GOLF GTIAutomatic+SCIR.GTI,GLI 64,4	171 199 214 H
(2)	Bonded rubber bushfor 4-speed manual gearbox 64,4 MM 64,4 MM	171 199 214 D
(2)	Bonded rubber bush GOLF CABRIO.	171 199 214 J
(2A)	Bonded rubber bush SCIR.	171 199 214 J
1	Supportfor 4-speed manual gearbox	171 399 113 F
10	Spring washer 10 10	N 012 230 7
10	Spring washer B 10 X 21 X 1 B 10 X 21 X 1	N 012 230 6
11	Hexagon nut M 10 M 10	N 011 010 11
11	Hexagon nut M 10 M 10	N 101 552 07
12	Support	147 399 132
12	Support	171 399 132
13	Reinforcement plate automatic	171 399 139 A
14	Washer 8,4 8,4	111 129 720
15	Hexagon nut M 8 M 8	N 011 008 8
16	spring ring 10 10	N 012 011 3
17	Hexagon nut M 10 M 10	N 101 552 07
17	Hexagon nut M 10 M 10	N 011 010 11
18	Bracket	171 399 141
19	Bonded rubber bush	171 399 151
19	Bonded rubber bush	171 399 151 A
1A	Supportfor 5 speed manual transmiss.	171 399 113 H
2	Bonded rubber bush F 15 A 0800 001>>F 16 A 0000 001>>F 17 A 0000 001>>F 53 A 0000 001>> also use: 171 199 125 automatic Automatic+"S.."automaticautomatic 171 199 125	171 199 214 J
20	spring ring 12 12	N 012 042 4
21	Hexagon nut M 12 X 1,5 M 12 X 1,5	N 011 020 4
21	Hexagon nut M 12 X 1,50 M 12 X 1,50	N 101 055 07
21	Hexagon nut M 12 X 1,5 M 12 X 1,5	N 011 020 8
22	Protective plate also use: N 010 252 4 N 012 230 7191 399 311 automatic N 010 252 4 N 012 230 7191 399 311	191 399 291 A
22	Protective plate automatic	171 399 291
23	Spring washer 10 10	N 012 230 7
24	Hexagon bolt M 10 X 25 M 10 X 25	N 010 254 14
24A	Hexagon bolt M 8 X 18 M 8 X 18	N 010 239 11
25	Belleville spring	411 399 169
26	Washer 10,6 X 22 X 2,8 10,6 X 22 X 2,8	021 101 129
2A	Bonded rubber bush 64,4 81 KW;DIESEL 64,4	171 199 214 H
3	stop washer 50 X 6 50 X 6	171 199 125
3A	stop washer 85 X 6 85 X 6	171 199 125 A
4	Hexagon bolt M 10 X 85 M 10 X 85	N 010 472 4
4	Hexagon bolt M 10 X 85 M 10 X 85	N 010 472 11
5	Spring washer B 8 X 15 B 8 X 15	N 012 241 10
5	Spring washer B 8 X 15 X 0,8 B 8 X 15 X 0,8	N 012 241 11
5A	spring ring 10 10	N 012 040 5
5A	spring ring 10 10	N 012 011 3
6	Hexagon bolt M 8 X 55 M 8 X 55	N 010 352 7
6	Hexagon bolt M 8 X 55 M 8 X 55	N 010 352 10
6A	Hexagon bolt M 10 X 70 M 10 X 70	N 010 470 7
6B	Hexagon nut M 10 M 10	N 011 010 13
7	Support automatic	171 399 113 G
8	Hexagon bolt M 10 X 65 M 10 X 65	N 010 465 5
8	Hexagon bolt M 10 X 65 M 10 X 65	N 102 638 01
9	Washer 10,6 X 22 X 2,8 10,6 X 22 X 2,8	021 101 129
