Headlight washer system f 53 b 050 000 scirocco — Mk1 Golf Glazing Wiper Washer System (1981)

Factory title: Volkswagen Golf (1981) - Windshield wiper

Generation: Mk1 1981 (RDW) Group: Glazing / wiper washer system Parts: 39 Primary OEM: N 020 348 1, 161 971 989 C, N 020 301 1

Headlight washer system f 53 b 050 000 scirocco for the Volkswagen Golf Mk1 (1981): factory exploded diagram 233000 from the Volkswagen ETKA parts catalogue, group 39 Glazing / wiper washer system, listing 32 OEM part numbers across 39 catalogued positions including N 020 348 1, 161 971 989 C and N 020 301 1. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 32 OEM part numbers across 39 numbered positions.

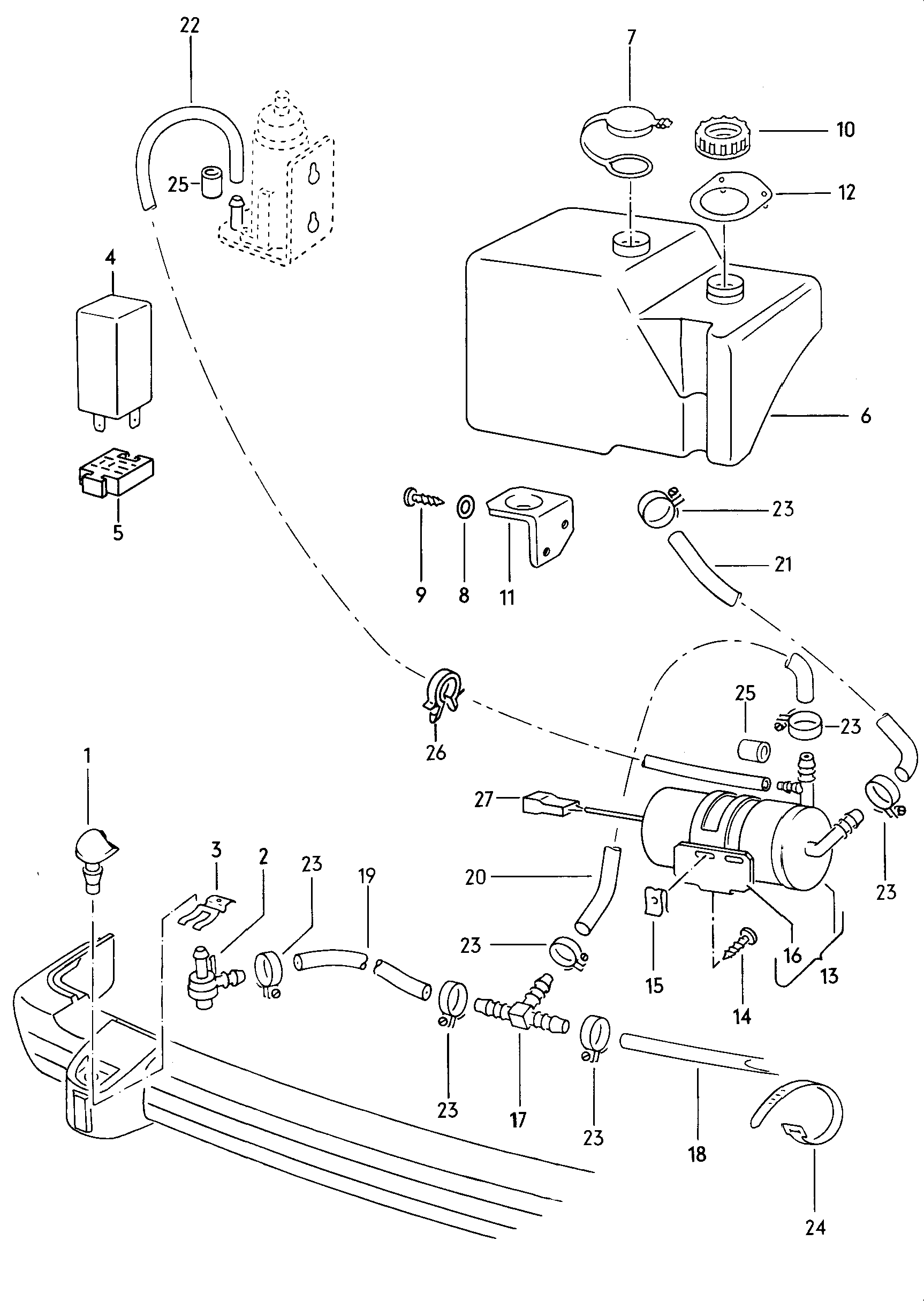

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	headlight washer system F >> 53-B-050 000 SCIROCCO	—
-	hose in coils of 5 m'order unit 5' S 10 X 3 S 10 X 3	N 020 348 1
-	Flat contact housing	161 971 989 C
-	hose in coils of 10 m'order unit 10' 4 X 1 4 X 1	N 020 301 1
-	hose in coils of 5 m'order unit 5' S 10 X 3 S 10 X 3	1J0 955 964 F
(26)	Cable ties 4,6 X 200 4,6 X 200	N 906 661 01
(26)	Cable ties 4,5 X 140 4,5 X 140	N 902 055 01
(27)	flat connector housing	161 971 988 C
(6)	Fluid reservoir	171 955 451 D
(6)	Fluid reservoir K-JETRONIC	171 955 451 C
1	Water jet	321 955 185 A
10	Nut	311 955 461
11	support forfluid reservoir carburetorengine	171 955 475
12	Securing ring	135 955 641 A
13	Pump	135 955 679
14	oval head panel screw 5,5 X 19 5,5 X 19	N 013 974 1
15	Speed nut 5,5 X 30/8 X 15,3 5,5 X 30/8 X 15,3	N 015 431 1
16	No longer available	—
17	t-piece	113 955 975 B
18	shorten to: 140 MM 140 MM	—
19	shorten to: 920 MM 920 MM	—
2	retaining valve	113 955 187
20	shorten to: 500 MM 500 MM	—
21	shorten to: 500 MM 500 MM	—
22	shorten to: 960 MM 960 MM	—
23	Hose clamp AL 12-22 AL 12-22	N 024 509 4
23	Clamp 12-22 X 9 X 0,4 12-22 X 9 X 0,4	N 102 582 01
24	Cable ties 210 210	N 020 902 1
24	Cable ties 3,6 X 246 3,6 X 246	N 020 902 2
25	Connecting hose 4 X 30 4 X 30	443 955 665
25	Grommet 4 X 30 4 X 30	803 971 896
3	retaining spring	113 955 199
4	relay for headlightwasher	113 955 200
5	relay plate	531 941 845
6	Fluid reservoirfor models withkeihin carburetor "S.."	171 955 451
7	End cap 54 MM 54 MM	8D0 955 455
7	End cap 54 MM 54 MM	357 955 455
8	Washer 6,4 X 11 X 1,6 6,4 X 11 X 1,6	N 011 557 2
9	oval head panel screw 5,5 X 19 5,5 X 19	N 013 974 1
