Headlight washer system f 53 b 200 001 scirocco — Mk1 Golf Glazing Wiper Washer System (1981)

Factory title: Volkswagen Golf (1981) - Windshield wiper

Generation: Mk1 1981 (RDW) Group: Glazing / wiper washer system Parts: 42 Primary OEM: 1J0 973 722 A, 1J0 955 964 F, N 020 348 1

Headlight washer system f 53 b 200 001 scirocco for the Volkswagen Golf Mk1 (1981): factory exploded diagram 233010 from the Volkswagen ETKA parts catalogue, group 39 Glazing / wiper washer system, listing 35 OEM part numbers across 42 catalogued positions including 1J0 973 722 A, 1J0 955 964 F and N 020 348 1. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 35 OEM part numbers across 42 numbered positions.

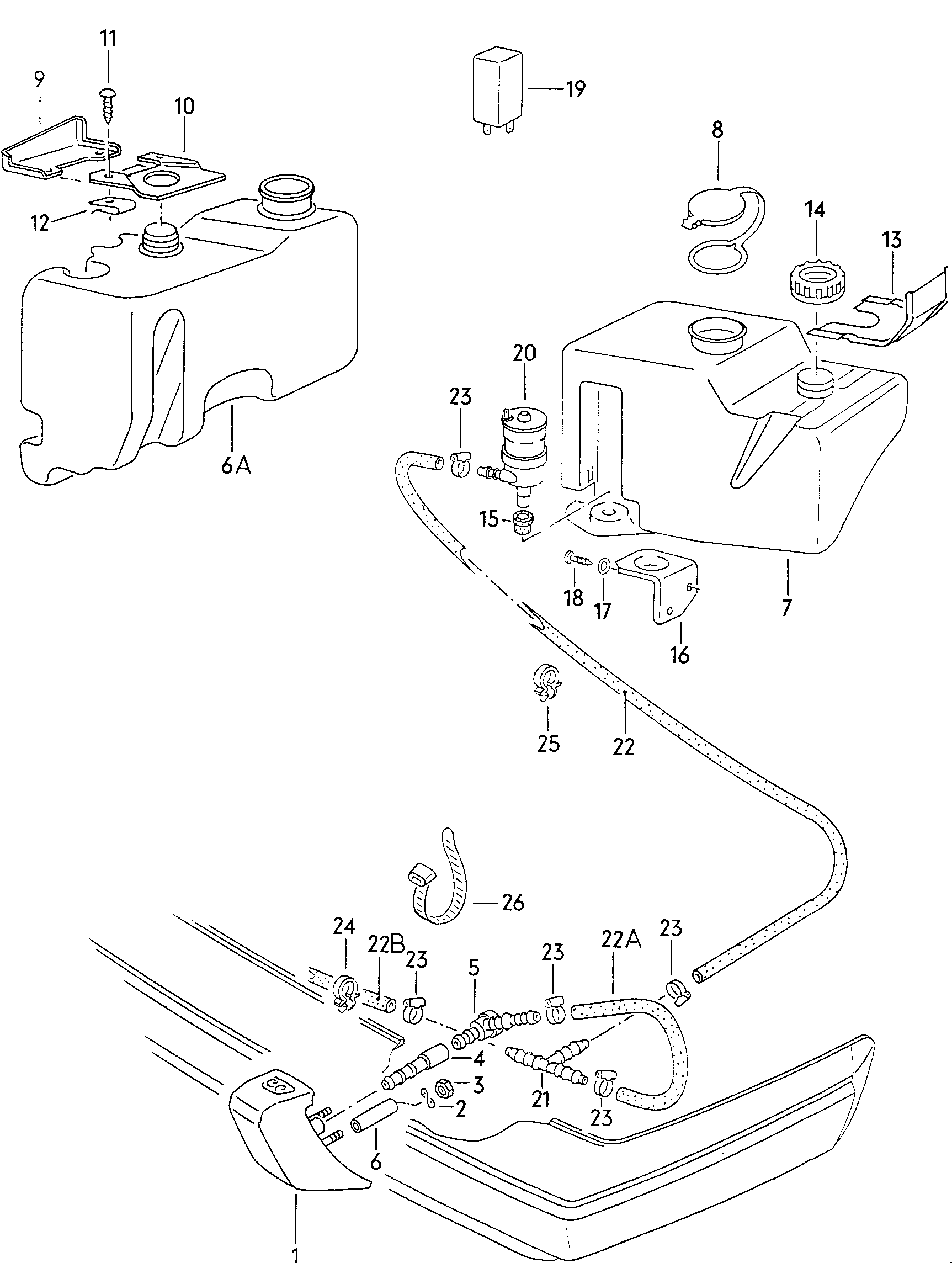

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	headlight washer system F 53-B-200 001>> SCIROCCO	—
-	Flat contact housing withcontact locking mechanism Possible single wire: 000 979 133000 979 133 A 000 979 225000 979 225 A 000 979 133000 979 133 A 000 979 225000 979 225 A	1J0 973 722 A
-	hose in coils of 5 m'order unit 5' S 10 X 3 S 10 X 3	1J0 955 964 F
-	hose in coils of 5 m'order unit 5' S 10 X 3 S 10 X 3	N 020 348 1
(1)	Nozzle carrier w/spray nozzle	533 955 102 B
(24)	Cable ties 4,6 X 200 4,6 X 200	N 906 661 01
(24)	Cable ties 4,5 X 140 4,5 X 140	N 902 055 01
(25)	Cable ties 4,6 X 200 4,6 X 200	N 906 661 01
1	Nozzle carrier w/spray nozzle	533 955 101 B
10	Bracket K-JETRONIC	533 955 457 A
11	oval head panel screw 4,8 X 13 4,8 X 13	N 013 968 1
12	Speed nut 4,8 X 16,5 X 11,5 4,8 X 16,5 X 11,5	N 015 445 2
13	bracket for fluidcontainer carburetorengine	533 955 457 B
14	Nut	311 955 461
15	Seal	431 955 465 A
16	support forfluid reservoir carburetorengine	171 955 475
17	Washer 6,4 X 11 X 1,6 6,4 X 11 X 1,6	N 011 557 2
18	oval head panel screw 5,5 X 19 5,5 X 19	N 013 974 1
19	relay for headlightwasher	701 955 200
2	Spring washer 6 6	N 012 226 5
20	Windscreen washer system pump	191 955 681
20	Pump for headlight-washer system also use: 1 J 0 973 722 A 1 J 0 973 722 A	3B7 955 681
21	Y-piece	481 955 975
22	shorten to: 650 MM carburetorengine DIESEL 650 MM	—
22	shorten to: 460 MM K-JETRONIC 460 MM	—
22A	shorten to: 420 MM 420 MM	—
22B	shorten to: 1270 MM 1270 MM	—
23	Clamp 12-22 X 9 X 0,4 12-22 X 9 X 0,4	N 102 582 01
26	Cable ties 6,5 X 175 6,5 X 175	N 900 603 01
26	Cable ties 4,6 X 200 4,6 X 200	N 906 661 01
3	Hexagon nut M 6 M 6	N 011 006 8
3	Hexagon nut M 6 M 6	N 011 006 24
4	extension pipe	861 955 183
5	retaining valve	171 955 187
6	spacer bush	533 955 251
6A	No longer available K-JETRONIC	—
6A	Fluid reservoir K-JETRONIC	171 955 451 C
7	Fluid reservoir	171 955 451 D
7	No longer available	—
8	End cap 54 MM 54 MM	357 955 455
8	End cap 54 MM 54 MM	8D0 955 455
9	Bracket K-JETRONIC	533 955 457
