Windscreen washer system — Mk1 Golf Glazing Wiper Washer System (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Windshield wiper

Generation: Mk1 1979 - 1980 (RDW) Group: Glazing / wiper washer system Parts: 17 Primary OEM: N 020 025 1, N 020 301 1, 171 955 451

Windscreen washer system for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 153000 from the Volkswagen ETKA parts catalogue, group 39 Glazing / wiper washer system, listing 14 OEM part numbers across 17 catalogued positions including N 020 025 1, N 020 301 1 and 171 955 451. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 14 OEM part numbers across 17 numbered positions.

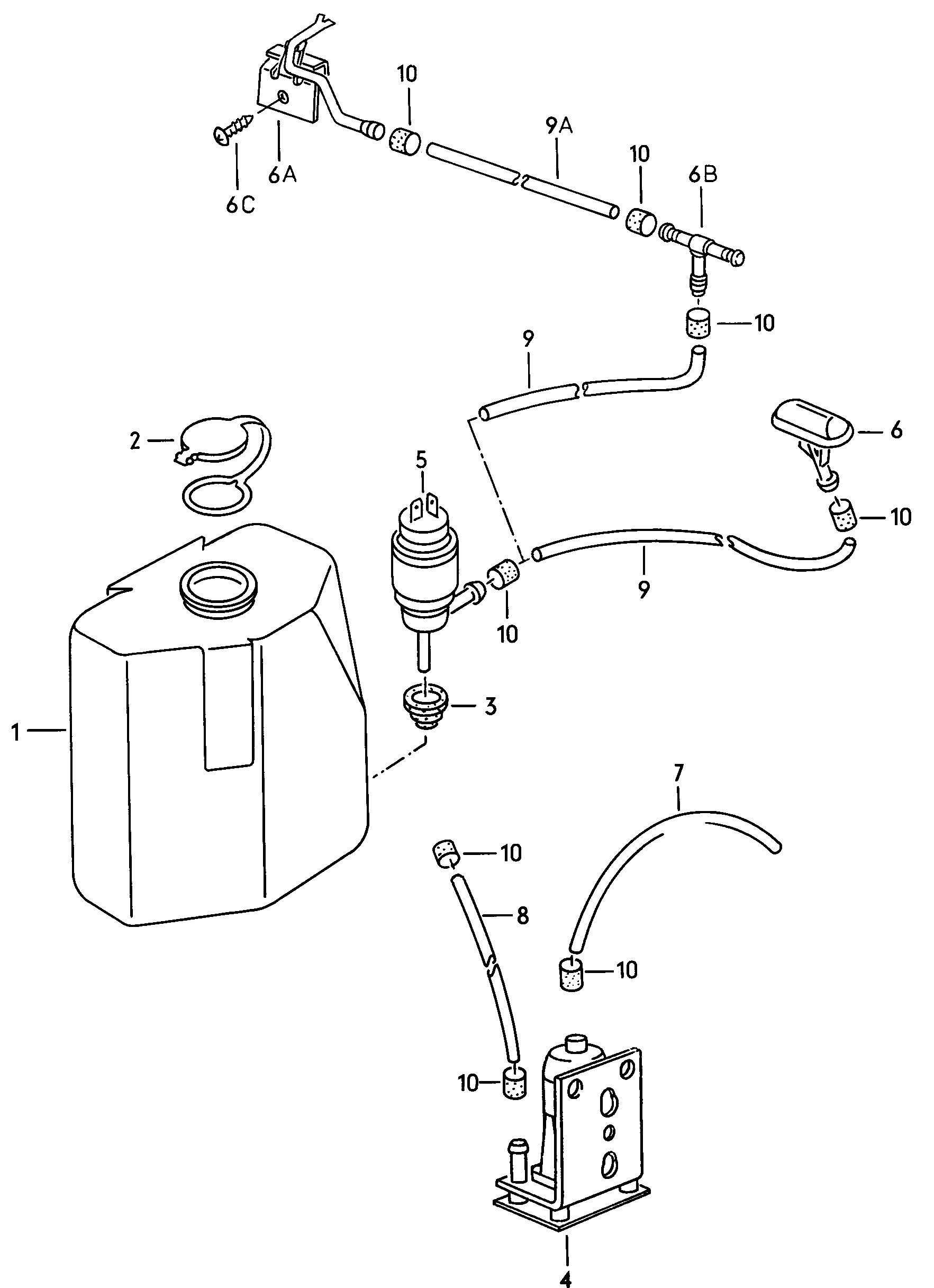

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Bungs 12 X 1 X 11 12 X 1 X 11	N 020 025 1
-	hose in coils of 10 m'order unit 10' 4 X 1 4 X 1	N 020 301 1
(1)	Fluid reservoir DIESEL/air condit.,"S..":GOLF,JETTA	171 955 451
1	Wash water reservoir	433 955 453 A
10	Grommet 4 X 30 4 X 30	803 971 896
10	hose reinforcement	803 955 995
10	Connecting hose 4 X 30 4 X 30	443 955 665
2	End cap	1H0 955 455
2	End cap	857 955 455
3	Seal 12 X 6,5 12 X 6,5	443 955 465
4	Windscreen washer system pump SCIR.	823 955 651
4	Windscreen washer system pump DIESEL/air condit.,"S..":GOLF,JETTA	823 955 651
5	Windscreen washer system pump	431 955 651
6	Water jet	111 955 993 A
7	shorten to: 400 MM 400 MM	—
8	shorten to: 1700 MM 1700 MM	—
9	shorten to: 1500 MM 1500 MM	—
