Windscreen washer system — Mk1 Golf Glazing Wiper Washer System (1982 - 1983)
Factory title: Volkswagen Golf (1982 - 1984) - Windshield wiper

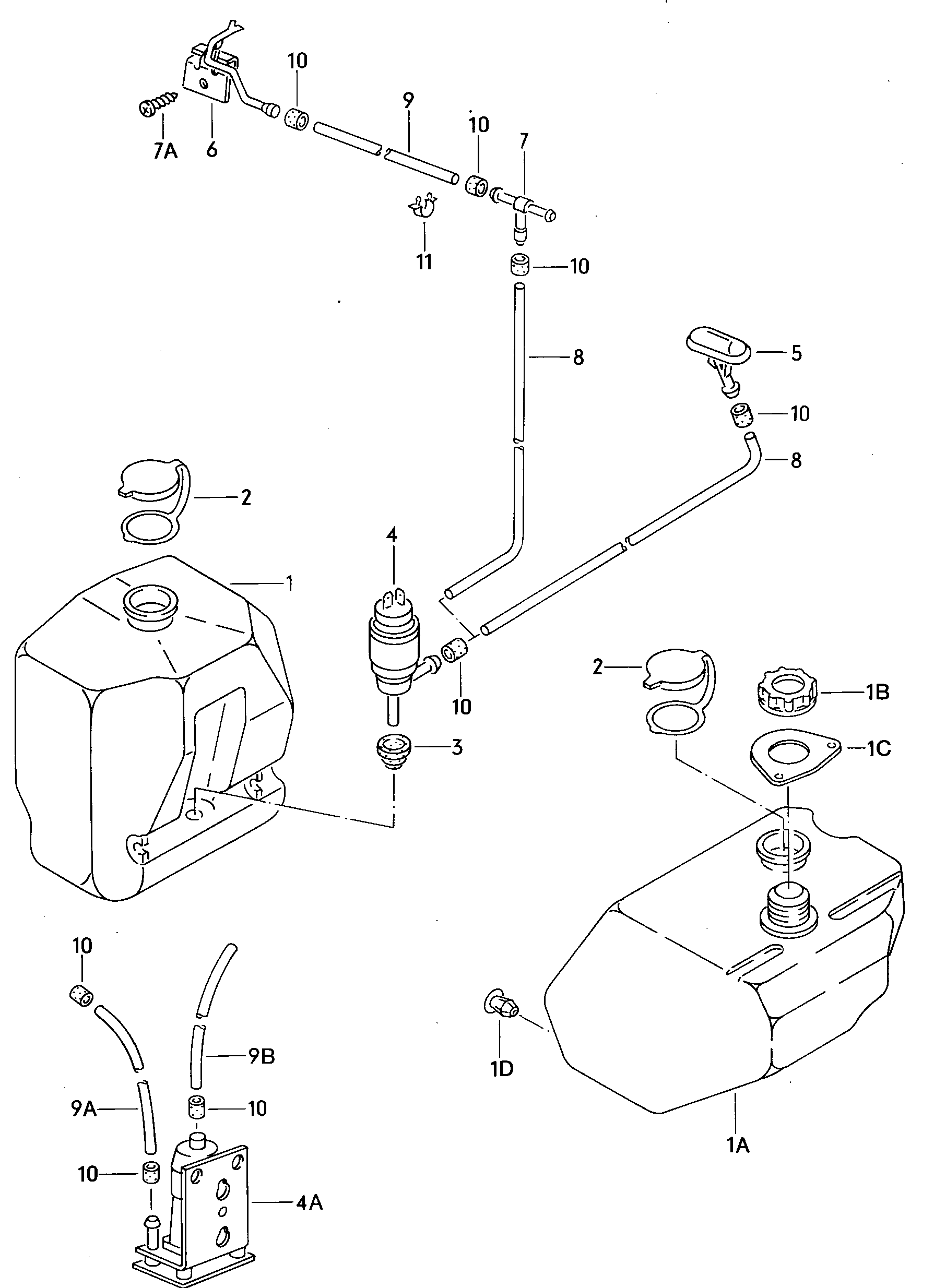

Windscreen washer system for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 231000 from the Volkswagen ETKA parts catalogue, group 39 Glazing / wiper washer system, listing 25 OEM part numbers across 30 catalogued positions including 161 867 299 0 1C, N 038 549 1 0 1C and N 020 301 1. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 25 OEM part numbers across 30 numbered positions.
| № | Description | Part number |
|---|---|---|
| Satin black only for: 171 955 451171 955 453 L 171 955 451171 955 453 L | 161 867 299 0 1C | |
| Satin black | N 038 549 1 0 1C | |
| - | hose in coils of 10 m'order unit 10' 4 X 1 4 X 1 | N 020 301 1 |
| (1) | Wash water reservoir SCIR. | 321 955 453 E |
| (1) | Wash water reservoir "S.." | 533 955 453 A |
| (1) | Fluid reservoir F >> 16-D-270 000*F >> 17-D-270 000* DIESEL/ air condit.T-DIESELDIESEL/ air condit.T-DIESEL | 171 955 451 |
| (11) | Cable ties 4,5 X 140 4,5 X 140 | N 902 055 01 |
| (11) | Cable ties 4,6 X 200 4,6 X 200 | N 906 661 01 |
| (1D) | Clip | 161 867 299 |
| (5) | Water jet SCIR. | 533 955 985 |
| (5) | Water jet SCIR. | 191 955 985 |
| (5) | Water jet SCIR. | 533 955 985 |
| 1 | Wash water reservoir GOLF,JETTA | 433 955 453 A |
| 10 | Grommet 4 X 30 4 X 30 | 803 971 896 |
| 10 | Connecting hose 4 X 30 4 X 30 | 443 955 665 |
| 1A | Wash water reservoir F 16-D-270 001>>*F 17-D-270 001>>*F 53-D-015 001>>* DIESEL/ air condit.T-DIESELDIESEL/ air condit.T-DIESELSCIR.:EW | 171 955 453 L |
| 1B | Nut only for: 171 955 453 L 171 955 453 L | 311 955 461 |
| 1C | Securing ring only for: 171 955 451 ,171 955 453 L 171 955 451 ,171 955 453 L | 135 955 641 A |
| 2 | End cap | 1H0 955 455 |
| 2 | End cap | 857 955 455 |
| 3 | Seal 12 X 6,5 12 X 6,5 | 443 955 465 |
| 4 | Windscreen washer system pump | 431 955 651 |
| 4 | Windscreen washer system pump F 16-D-270 001>>*F 17-D-270 001>>* DIESEL/ air condit.T-DIESELDIESEL/ air condit.T-DIESEL | 431 955 651 |
| 4A | Windscreen washer system pump F >> 16-D-270 000*F >> 17-D-270 000* DIESEL/ air condit.T-DIESELDIESEL/ air condit. | 823 955 651 |
| 5 | Water jet GOLF,JETTA | 111 955 993 A |
| 8 | shorten to: 1500 MM GOLF,JETTA 1500 MM | — |
| 8 | shorten to: 1620 MM SCIR. 1620 MM | — |
| 8 | shorten to:for vehicles with headlightwasher system 1890 MM SCIR. 1890 MM | — |
| 9A | shorten to: 1700 MM 1700 MM | — |
| 9B | shorten to: 400 MM 400 MM | — |
From the Type 19 workshop
Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these glazing wiper washer system diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk1
- Model years
- 1982 - 1983
- Generation region
- RDW
- Generation code
- 007
- Factory group
- 39 Glazing / wiper washer system
- Factory subgroup
- 231000
