Which VW part numbers are on the windshield wiper golf jetta diagram for the Mk1 Golf?

This diagram lists 53 OEM part numbers for the Mk1 Golf. The first three are 161 998 001 A, 161 998 003 and 171 955 113 AX.

Which Mk1 Golf years and engines does this diagram cover?

This plate is from the Mk1 Golf 1979 - 1980 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk1 Golf factory parts catalogue?

The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.

Windshield wiper golf jetta — Mk1 Golf Glazing Wiper Washer System (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Windshield wiper

Generation: Mk1 1979 - 1980 (RDW) Group: Glazing / wiper washer system Parts: 57 Primary OEM: 161 998 001 A, 161 998 003, 171 955 113 AX

Windshield wiper golf jetta for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 151000 from the Volkswagen ETKA parts catalogue, group 39 Glazing / wiper washer system, listing 53 OEM part numbers across 57 catalogued positions including 161 998 001 A, 161 998 003 and 171 955 113 AX. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 53 OEM part numbers across 57 numbered positions.

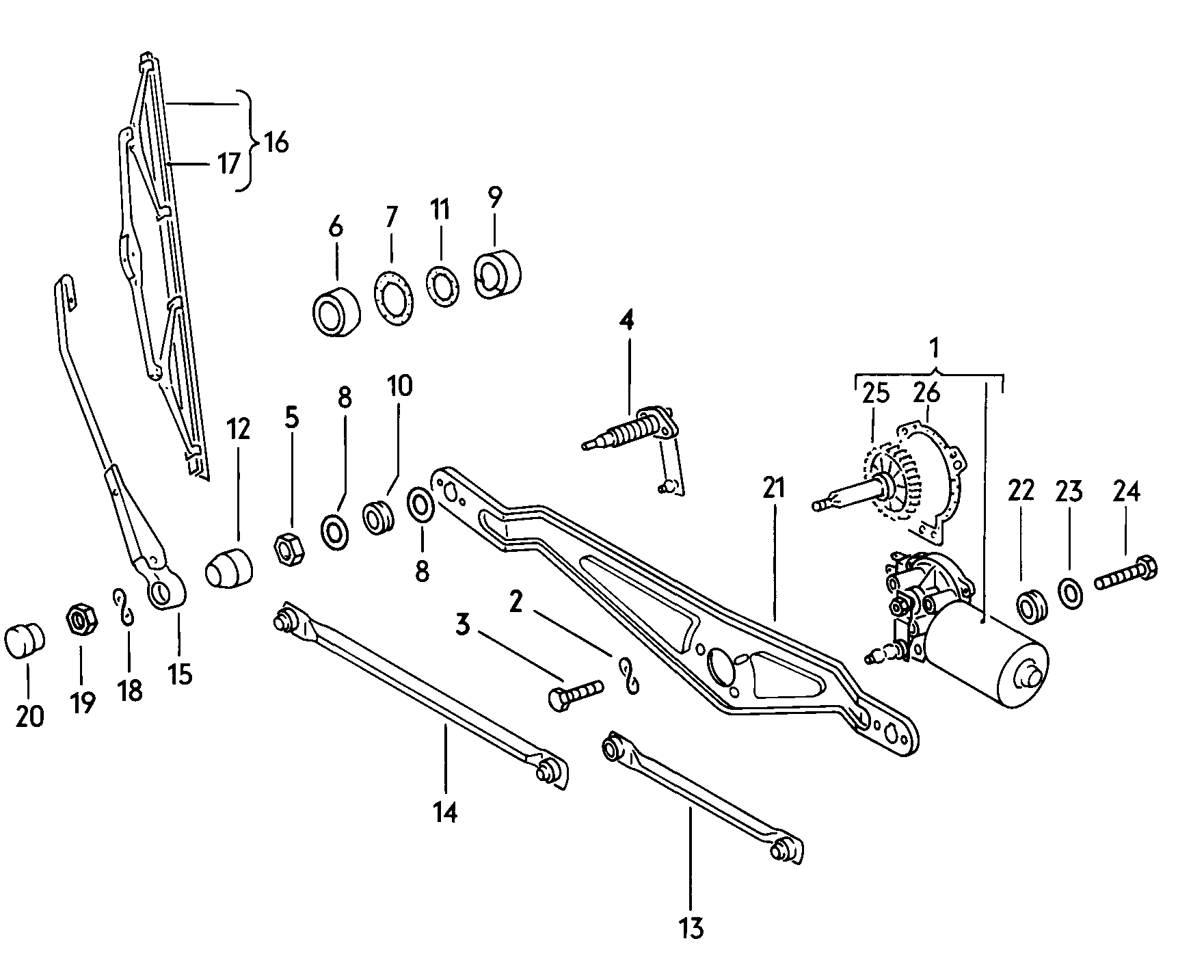

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	windshield wiper GOLF,JETTA	—
-	1 set: wiper blades	161 998 001 A
-	1 set: wiper blades VALEO VALEO	161 998 003
(1)	Wiper motor	171 955 113 AX
(1)	Wiper motor	172 955 113 A
(15)	wiper arm with air vane GOLF GTI,GLIJETTA LI,GLI	172 955 410
(15)	wiper arm with air vane No longer available replacement: 171 955 409191 955 425 A 171 955 409191 955 425 A	—
(15)	Wiper arm	172 955 409
(15)	Wiper arm GOLF GTI,GLIJETTA LI,GLI	172 955 409
(16)	Wiper blade with guide paddle 450 MM VALEO 450 MM VALEO	191 955 427 A
(16)	Wiper blade with guide paddle 450 MM 450 MM	191 955 425 A
(21)	wiper frame	172 955 611
(25)	worm gear with shaftfor wiper motor F >> 159 2810 000 F >> 179 3750 000 BOSCH BOSCH	171 955 751 A
(26)	Seal F >> 159 2810 000 F >> 179 3750 000 BOSCH BOSCH	171 955 779 A
(4)	wiper shaft with bearing	172 955 215
(4)	wiper shaft with bearing	171 955 215
(4)	wiper shaft with bearing	172 955 216
(6)	spacer sleeve	172 955 252
(9)	spacer sleeve	172 955 257
1	Wiper motor	171 955 113 A
10	Bearing seal	133 955 261
11	Rubber washer	191 955 265
12	Bearing cover	171 955 275
13	operating linkage	171 955 325
13	operating linkage	171 955 325
14	operating linkage	171 955 326
14	operating linkage	171 955 326
15	Wiper arm	171 955 409
16	wiper blade 400 MM VALEO 400 MM VALEO	161 955 427
16	wiper blade 400 MM 400 MM	161 955 425
17	Wiper blade rubbers 550 MM 550 MM	895 955 429 A
17	Wiper blade rubbers 400 MM VALEO 400 MM VALEO	161 955 429
18	Spring washer 6 6	N 012 226 5
18	Spring washer A 6 A 6	N 012 227 3
19	Hexagon nut M 6 M 6	N 011 006 24
19	Hexagon nut M 6 M 6	N 011 006 8
2	Spring washer 6 6	N 012 226 5
20	Cover cap	133 955 435
21	wiper frame	171 955 611
22	Rubber grommet	111 955 641
23	Washer B 6,1 X 18 X 2 B 6,1 X 18 X 2	N 011 666 10
23	Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6	N 011 666 15
24	Hexagon bolt M 6 X 18 M 6 X 18	N 010 216 12
25	No longer available	—
25	worm gear with shaftfor wiper motor F >> 159 2810 000 F >> 179 3750 000 SWF SWF	171 955 751
26	No longer available	—
26	Seal F >> 159 2810 000 F >> 179 3750 000 SWF SWF	171 955 779
3	Hexagon bolt M 6 X 12 M 6 X 12	N 010 212 26
3	Hexagon bolt M 6 X 12 M 6 X 12	N 010 212 14
4	wiper shaft with bearing	171 955 216
5	Hexagon nut M 16 X 1 M 16 X 1	823 955 243 B
5	Hexagon nut M 16 X 1 M 16 X 1	823 955 243 A
5	Hexagon nut M 16 X 1 M 16 X 1	7D0 955 243
6	spacer sleeve	172 955 251
7	Seal	172 955 254
8	Cover disc	481 955 255
9	spacer sleeve	172 955 258

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these glazing wiper washer system diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1979 - 1980
Generation region: RDW
Generation code: 027
Factory group: 39 Glazing / wiper washer system
Factory subgroup: 151000
