Windshield wiper scir — Mk1 Golf Glazing Wiper Washer System (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - Windshield wiper

Generation: Mk1 1982 - 1983 (RDW) Group: Glazing / wiper washer system Parts: 37 Primary OEM: N 021 176 1, 533 955 121, 251 955 119

Windshield wiper scir for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 230000 from the Volkswagen ETKA parts catalogue, group 39 Glazing / wiper washer system, listing 32 OEM part numbers across 37 catalogued positions including N 021 176 1, 533 955 121 and 251 955 119. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 32 OEM part numbers across 37 numbered positions.

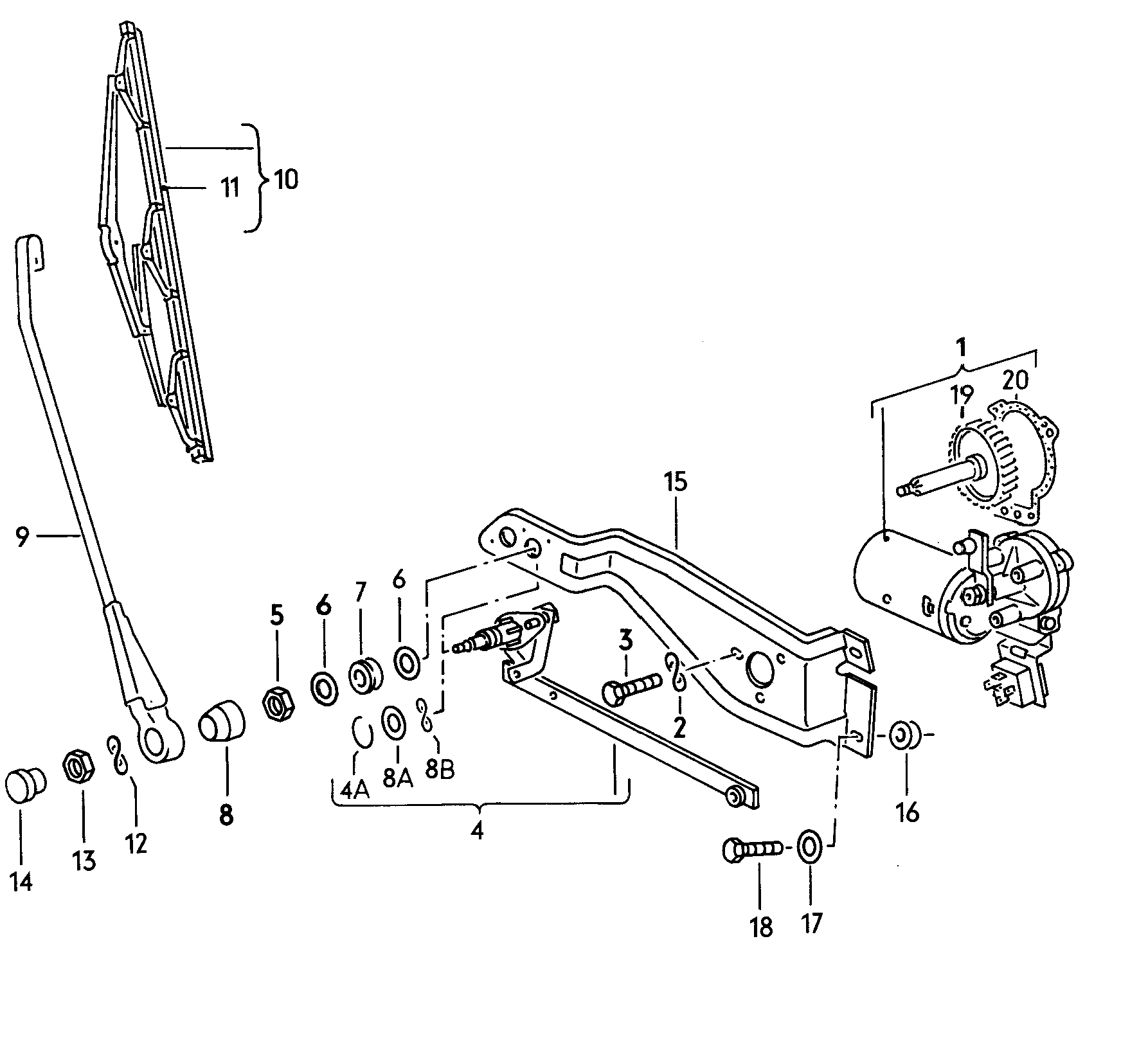

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	windshield wiper SCIR.	—
-	Hexagon collar nut M 6 M 6	N 021 176 1
-	Crank arm	533 955 121
(1)	Wiper motor withoutcrank	251 955 119
(4)	wiper bearing withlinkage	534 955 219
(4)	No longer available	—
(9)	Wiper arm	534 955 409
(9)	No longer available	—
10	wiper blade 475 MM 475 MM	533 955 425 B
10	wiper blade 475 MM VALEO 475 MM VALEO	1H0 955 427
11	Wiper blade rubbers 550 MM 550 MM	895 955 429 A
11	Wiper blade rubbers 530 MM 530 MM	443 955 429
12	Spring washer 6 6	N 012 226 5
12	Spring washer A 6 A 6	N 012 227 3
13	Hexagon nut M 6 M 6	N 011 006 8
13	Hexagon nut M 6 M 6	N 011 006 24
14	Cover cap	133 955 435
15	wiper frame	533 955 611
15	No longer available	—
16	Rubber grommet	111 955 641
17	Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6	N 011 666 15
17	Washer B 6,1 X 18 X 2 B 6,1 X 18 X 2	N 011 666 10
18	Hexagon bolt M 6 X 18 M 6 X 18	N 010 216 12
2	Spring washer 6 6	N 012 226 5
3	Hexagon bolt M 6 X 12 M 6 X 12	N 010 212 26
3	Hexagon bolt M 6 X 12 M 6 X 12	N 010 212 14
4	No longer available	—
4	wiper bearing withlinkage	533 955 219
4A	Securing ring	481 955 237
5	Hexagon nut M 16 X 1 M 16 X 1	823 955 243 B
5	Hexagon nut M 16 X 1 M 16 X 1	823 955 243 A
5	Hexagon nut M 16 X 1 M 16 X 1	7D0 955 243
6	Cover disc	481 955 255
7	Bearing seal	133 955 261
8A	Shim	171 955 345
8B	Spring washer	171 955 349
9	Wiper arm	533 955 409
