Wiper washer system rear window f 53 b 050 000 scir — Mk1 Golf Glazing Wiper Washer System (1981)

Factory title: Volkswagen Golf (1981) - Windshield wiper

Generation: Mk1 1981 (RDW) Group: Glazing / wiper washer system Parts: 61 Primary OEM: N 020 301 1, 481 955 237, 433 955 453 A

Wiper washer system rear window f 53 b 050 000 scir for the Volkswagen Golf Mk1 (1981): factory exploded diagram 235000 from the Volkswagen ETKA parts catalogue, group 39 Glazing / wiper washer system, listing 53 OEM part numbers across 61 catalogued positions including N 020 301 1, 481 955 237 and 433 955 453 A. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 53 OEM part numbers across 61 numbered positions.

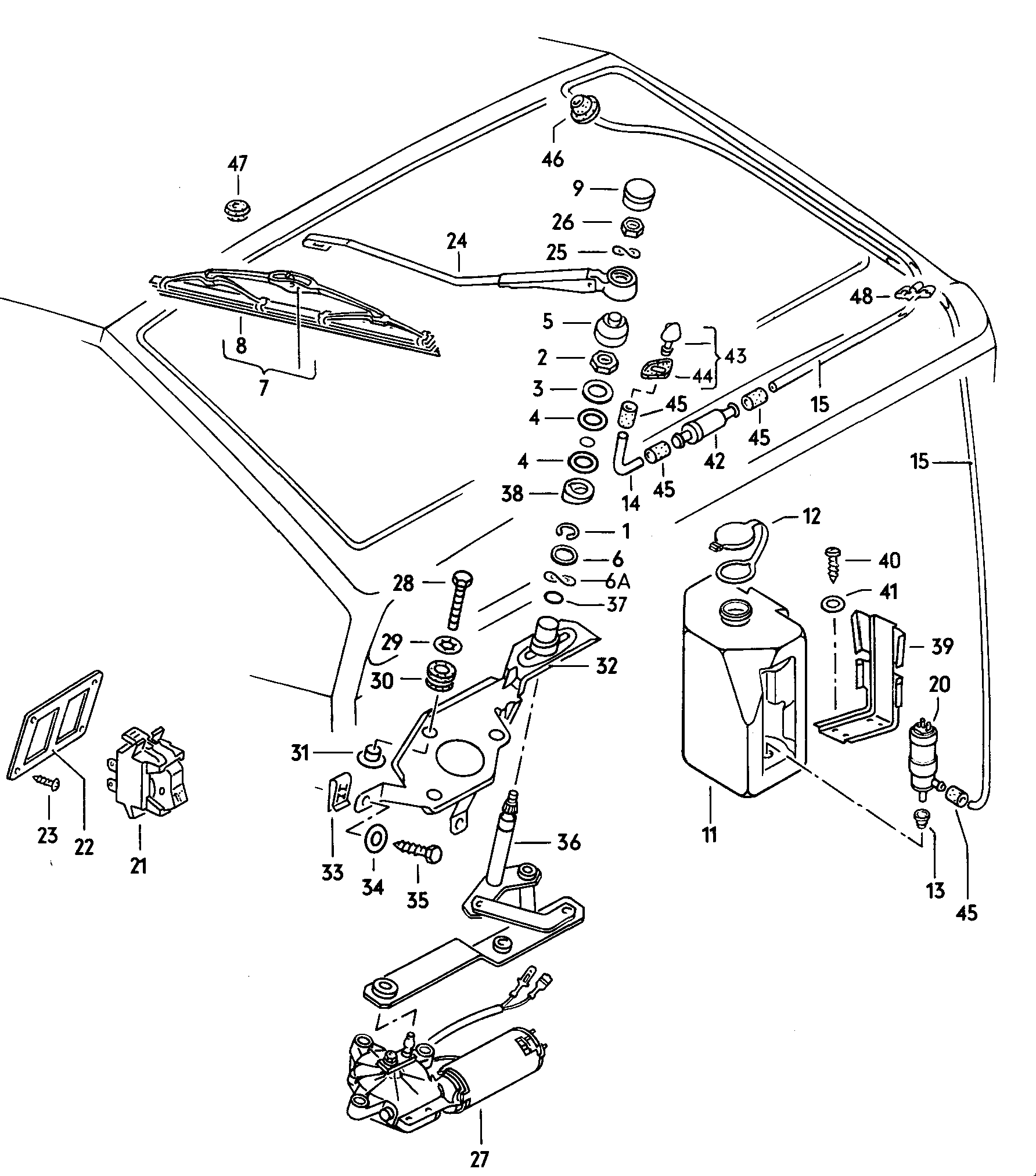

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Wiper and washer system forrear window F >> 53-B-050 000 SCIR.
 —
-
hose in coils of 10 m'order unit 10' 4 X 1
4 X 1
 N 020 301 1
1
Securing ring
 481 955 237
11
Wash water reservoir
 433 955 453 A
12
End cap
 1H0 955 455
12
End cap
 857 955 455
13
Seal 12 X 6,5
12 X 6,5
 443 955 465
14
shorten to: 120 MM
120 MM
 —
15
shorten to: 2600 MM
2600 MM
 —
2
Hexagon nut M 16 X 1
M 16 X 1
 823 955 243 B
2
Hexagon nut M 16 X 1
M 16 X 1
 7D0 955 243
2
Hexagon nut M 16 X 1
M 16 X 1
 823 955 243 A
20
Windscreen washer system pump
 431 955 651
21
switch for wiperand washer operation
 171 955 701
21
No longer available
 —
22
No longer available
 —
23
oval head panel screw 2,9 X 19
2,9 X 19
 N 013 944 2
24
Wiper arm
 171 955 707 B
25
Spring washer 6
6
 N 012 226 5
25
Spring washer A 6
A 6
 N 012 227 3
26
Hexagon nut M 6
M 6
 N 011 006 24
26
Hexagon nut M 6
M 6
 N 011 006 8
27
Wiper motor
 531 955 713 B
28
Hexagon bolt M 6 X 15
M 6 X 15
 N 010 215 13
28
Hexagon bolt M 6 X 15
M 6 X 15
 N 010 215 27
29
Spring washer
 331 955 753
3
Cover disc
 481 955 255
30
Grommet 13/9
13/9
 331 955 754
31
bush
 331 955 756
32
bracket with wiper bearing
 531 955 715
32
No longer available
 —
33
Speed nut 6,3 X 25 X 16
6,3 X 25 X 16
 N 015 432 2
34
Washer 6,4 X 12,5 X 1,6
6,4 X 12,5 X 1,6
 N 011 524 23
34
Washer A 6,4 X 12,5 X 1,6
A 6,4 X 12,5 X 1,6
 N 011 524 7
35
hexagon head panel screw 6,5 X 19
6,5 X 19
 N 015 946 1
36
wiper shaft with linkage
 531 955 721
37
seal for wiper bearing
 171 955 729
38
Spacer ring
 171 955 733
39
No longer available
 —
39
bracket for fluidcontainer
 171 955 775
4
Rubber washer 15,8
15,8
 191 955 265
40
oval head panel screw 4,8 X 9,5
4,8 X 9,5
 N 013 970 5
41
Washer A 5,3 X 10 X 1
A 5,3 X 10 X 1
 N 011 523 7
41
Washer 5
5
 N 011 523 18
42
Valve
 113 955 975 C
43
Water jet with gasket
 211 955 993
44
Seal
 211 955 991
45
Connecting hose 4 X 30
4 X 30
 443 955 665
45
Grommet 4 X 30
4 X 30
 803 971 896
46
No longer available
 —
46
Drain nozzle
 823 823 591
47
Grommet 12,5
12,5
 171 971 913
48
Clip
 171 867 549
5
Bearing cover
 171 955 275
6
Shim
 171 955 345
6A
Spring washer
 171 955 349
7
wiper blade 400 MM
400 MM
 161 955 425
7
wiper blade 400 MM VALEO
400 MM VALEO
 161 955 427
8
Wiper blade rubbers 550 MM
550 MM
 895 955 429 A
8
Wiper blade rubbers 400 MM VALEO
400 MM VALEO
 161 955 429
9
Cover cap
 133 955 435

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these glazing wiper washer system diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk1
Model years
1981
Generation region
RDW
Generation code
026
Factory group
39 Glazing / wiper washer system
Factory subgroup
235000

Related factory diagrams

Other published glazing wiper washer system plates for the Mk1 Golf in this catalogue.

The complete Mk1 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the wiper washer system rear window f 53 b 050 000 scir diagram for the Mk1 Golf?
This diagram lists 53 OEM part numbers for the Mk1 Golf. The first three are N 020 301 1, 481 955 237 and 433 955 453 A.
Which Mk1 Golf years and engines does this diagram cover?
This plate is from the Mk1 Golf 1981 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk1 Golf factory parts catalogue?
The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.
