Wiper washer system rear window scir — Mk1 Golf Glazing Wiper Washer System (1982 - 1983)

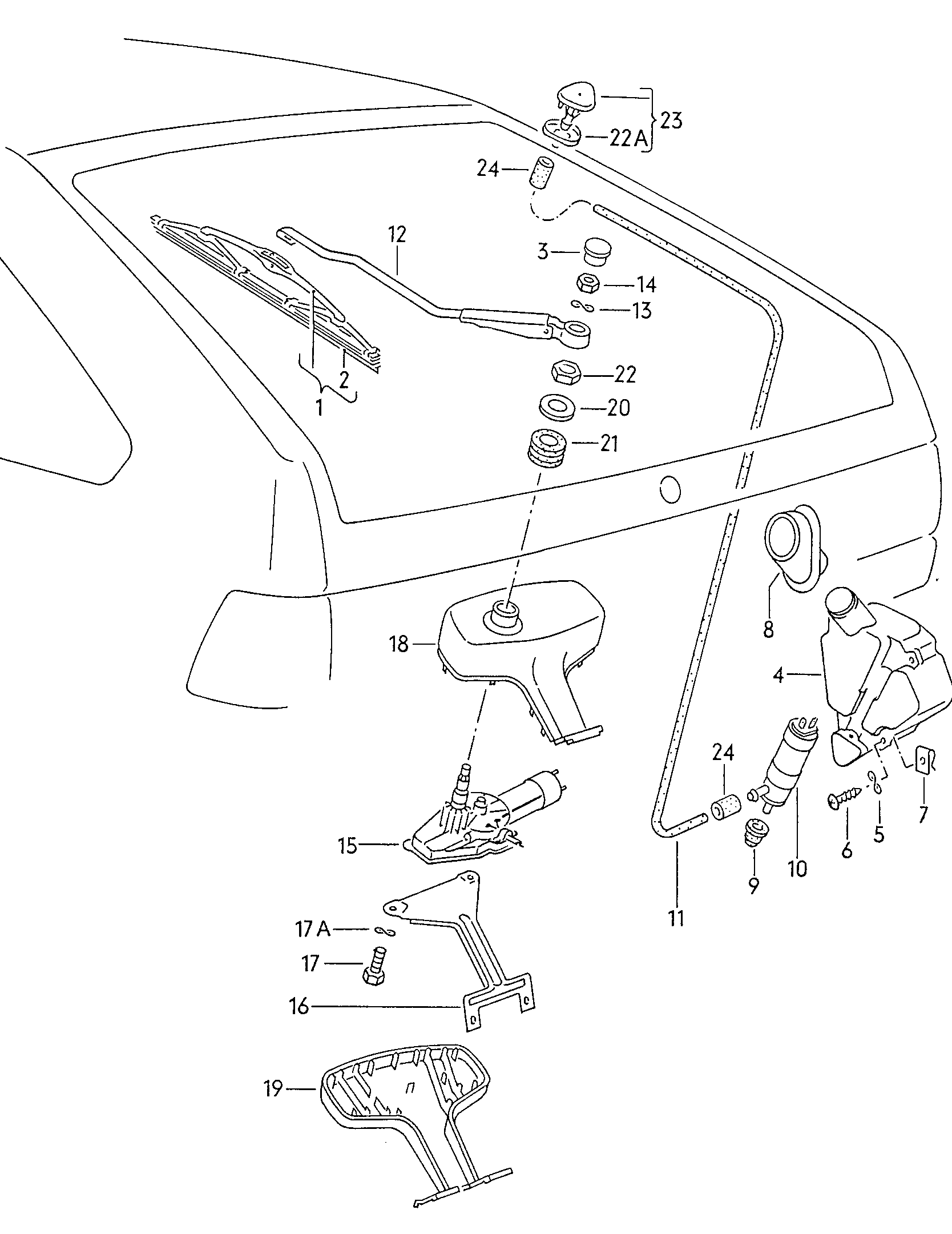

Factory title: Volkswagen Golf (1982 - 1984) - Windshield wiper
Wiper washer system rear window scir for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 235000 from the Volkswagen ETKA parts catalogue, group 39 Glazing / wiper washer system, listing 35 OEM part numbers across 37 catalogued positions including 211 863 127 0 1C, N 020 301 1 and 161 955 425. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 35 OEM part numbers across 37 numbered positions.
| № | Description | Part number |
|---|---|---|
| Satin black | 211 863 127 0 1C | |
| Wiper and washer system forrear window SCIR. | — | |
| - | hose in coils of 10 m'order unit 10' 4 X 1 4 X 1 | N 020 301 1 |
| 1 | wiper blade 400 MM 400 MM | 161 955 425 |
| 1 | wiper blade 400 MM VALEO 400 MM VALEO | 161 955 427 |
| 10 | Windscreen washer system pump | 431 955 651 |
| 11 | shorten to: 950 MM 950 MM | — |
| 12 | Wiper arm | 533 955 707 |
| 13 | Spring washer A 6 A 6 | N 012 227 3 |
| 13 | Spring washer 6 6 | N 012 226 5 |
| 14 | Hexagon nut M 6 M 6 | N 011 006 8 |
| 14 | Hexagon nut M 6 M 6 | N 011 006 24 |
| 15 | Wiper motor | 533 955 713 A |
| 16 | Bracket | 533 955 717 |
| 17 | Hexagon bolt M 6 X 12 M 6 X 12 | N 010 212 26 |
| 17 | Hexagon bolt M 6 X 12 M 6 X 12 | N 010 212 14 |
| 17A | Spring washer 6 6 | N 012 226 5 |
| 18 | Cover | 533 955 737 |
| 19 | Cover | 533 955 739 |
| 2 | Wiper blade rubbers 550 MM 550 MM | 895 955 429 A |
| 2 | Wiper blade rubbers 400 MM VALEO 400 MM VALEO | 161 955 429 |
| 20 | Washer | 533 955 753 |
| 21 | Seal | 533 955 758 |
| 22 | Hexagon nut M 16 X 1 M 16 X 1 | 823 955 243 A |
| 22 | Hexagon nut M 16 X 1 M 16 X 1 | 7D0 955 243 |
| 22 | Hexagon nut M 16 X 1 M 16 X 1 | 823 955 243 B |
| 22A | Seal | 211 955 991 |
| 23 | Water jet | 861 955 993 A |
| 24 | Connecting hose 4 X 30 4 X 30 | 443 955 665 |
| 24 | Grommet 4 X 30 4 X 30 | 803 971 896 |
| 3 | Cover cap | 133 955 435 |
| 4 | Wash water reservoir | 533 955 453 |
| 5 | Spring washer 5 5 | N 012 222 4 |
| 6 | oval head panel screw ST 4,8 X 16,0 ST 4,8 X 16,0 | N 013 969 4 |
| 7 | Speed nut 4,8 X 16,5 X 11,5 4,8 X 16,5 X 11,5 | N 015 445 2 |
| 8 | Cover cap | 211 863 127 |
| 9 | Seal 12 X 6,5 12 X 6,5 | 443 955 465 |
From the Type 19 workshop
Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these glazing wiper washer system diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk1
- Model years
- 1982 - 1983
- Generation region
- RDW
- Generation code
- 007
- Factory group
- 39 Glazing / wiper washer system
- Factory subgroup
- 235000
