Which VW part numbers are on the accelerator pedalaccelerator cable automatic diagram for the Mk1 Golf?

This diagram lists 43 OEM part numbers for the Mk1 Golf. The first three are 172 723 555 B, 171 723 589 A and 431 723 779.

Which Mk1 Golf years and engines does this diagram cover?

This plate is from the Mk1 Golf 1981 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk1 Golf factory parts catalogue?

The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.

Accelerator pedalaccelerator cable automatic — Mk1 Golf Pedals (1981)

Factory title: Volkswagen Golf (1981) - Accelerator pedal. accelerator cable

Generation: Mk1 1981 (RDW) Group: Pedals Parts: 48 Primary OEM: 172 723 555 B, 171 723 589 A, 431 723 779

Accelerator pedalaccelerator cable automatic for the Volkswagen Golf Mk1 (1981): factory exploded diagram 130000 from the Volkswagen ETKA parts catalogue, group 04 Pedals, listing 43 OEM part numbers across 48 catalogued positions including 172 723 555 B, 171 723 589 A and 431 723 779. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 43 OEM part numbers across 48 numbered positions.

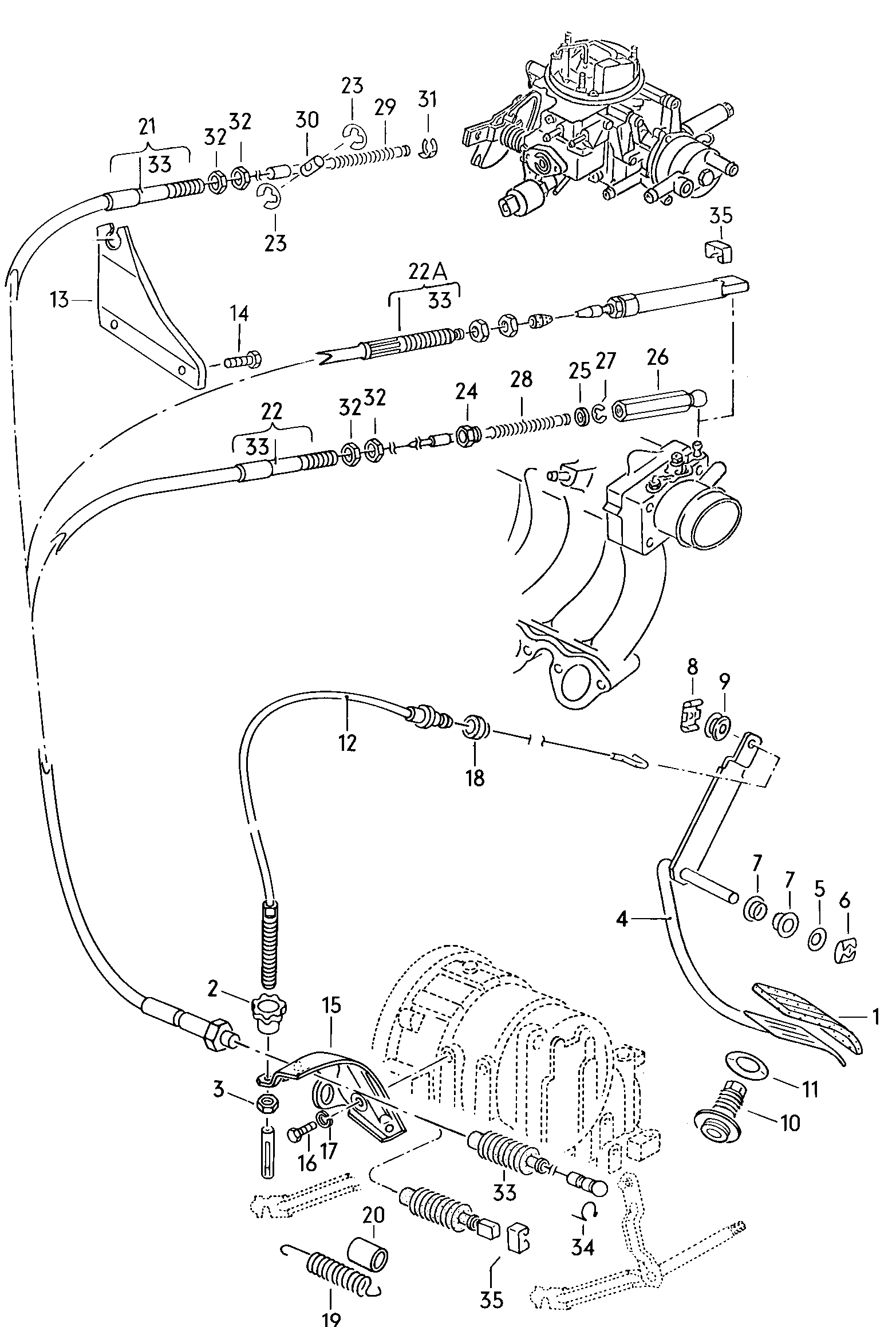

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Accelerator pedalaccelerator cable automatic	—
(12)	accelerator cablemarket orange 1453 MM 1453 MM	172 723 555 B
(18)	Stop buffer	171 723 589 A
(30)	No longer available "GB.":carburetorengine	—
(30)	Pin EM	431 723 779
(30)	Pin "GB.":carburetorengine	089 321 326
(4)	Accelerator pedal	172 723 509 A
(5)	Spring washer 8 8	N 900 020 01
1	Cap for accelerator pedal	171 721 647
10	Stop for accelerator pedal	171 723 527
11	Rosette	171 723 528
11	Rosette	1J0 723 528
12	accelerator cablemarked grey 1004 MM 1004 MM	171 723 555 C
13	Intermediate bearing for Bowden cable carburetorengine	049 129 239 F
14	Hexagon bolt M 6 X 15 carburetorengine M 6 X 15	N 010 215 13
14	Hexagon bolt M 6 X 15 carburetorengine M 6 X 15	N 010 215 27
15	holder for bowden cable	171 723 583 A
16	Hexagon bolt M 8 X 20 M 8 X 20	N 010 240 16
17	spring ring 8 8	N 012 038 7
17	spring ring 8 8	N 012 038 8
19	tension spring	803 723 691 A
2	adjusting nut	171 723 349
20	Damping rubber	052 129 234 C
21	Bowden cablemarked green carburetorengine	010 321 309 E
22	Discont. / replace: 010 321 307 A 010 321 307 A	—
22A	Bowden cablemarked yellow K-JETRONIC	010 321 307 A
23	Retaining washer 6 6	N 012 436 2
24	sealing plug K-JETRONIC	010 321 312
25	Washer 5,1 X 10,5 X 2 K-JETRONIC 5,1 X 10,5 X 2	010 321 314
26	No longer available K-JETRONIC	—
27	Retaining washer 4 K-JETRONIC 4	N 012 434 2
28	Pressure spring K-JETRONIC	010 321 319 C
29	Pressure spring carburetorengine	010 321 319 D
3	Hexagon nut M 10 M 10	N 011 010 11
3	Hexagon nut M 10 M 10	N 101 552 07
30	Pin carburetorengine	089 321 327
31	Retaining washer 4 carburetorengine 4	N 012 325 4
32	Hexagon nut M 10 X 1 M 10 X 1	N 011 157 1
32	Hexagon nut M 10 X 1 M 10 X 1	N 103 286 02
33	No longer available	—
34	Securing bars 8 GOLF;SCIR. 8	N 904 314 01
35	securing clip	171 721 570 A
4	Accelerator pedal	171 723 509 A
5	Washer B 8,1 X 24 X 1,5 B 8,1 X 24 X 1,5	N 011 696 1
6	Clamping washer 8 8	N 012 858 2
7	Bearing bush	823 721 543
8	Clip	171 721 563
9	Bearing bush	823 721 567

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these pedals diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1981
Generation region: RDW
Generation code: 026
Factory group: 04 Pedals
Factory subgroup: 130000
