Accelerator pedalaccelerator cable automatic — Mk1 Golf Pedals (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - Accelerator pedal. accelerator cable

Generation: Mk1 1982 - 1983 (RDW) Group: Pedals Parts: 45 Primary OEM: 172 723 555 B, 010 321 309 K, 010 321 307 A

Accelerator pedalaccelerator cable automatic for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 130000 from the Volkswagen ETKA parts catalogue, group 04 Pedals, listing 42 OEM part numbers across 45 catalogued positions including 172 723 555 B, 010 321 309 K and 010 321 307 A. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 42 OEM part numbers across 45 numbered positions.

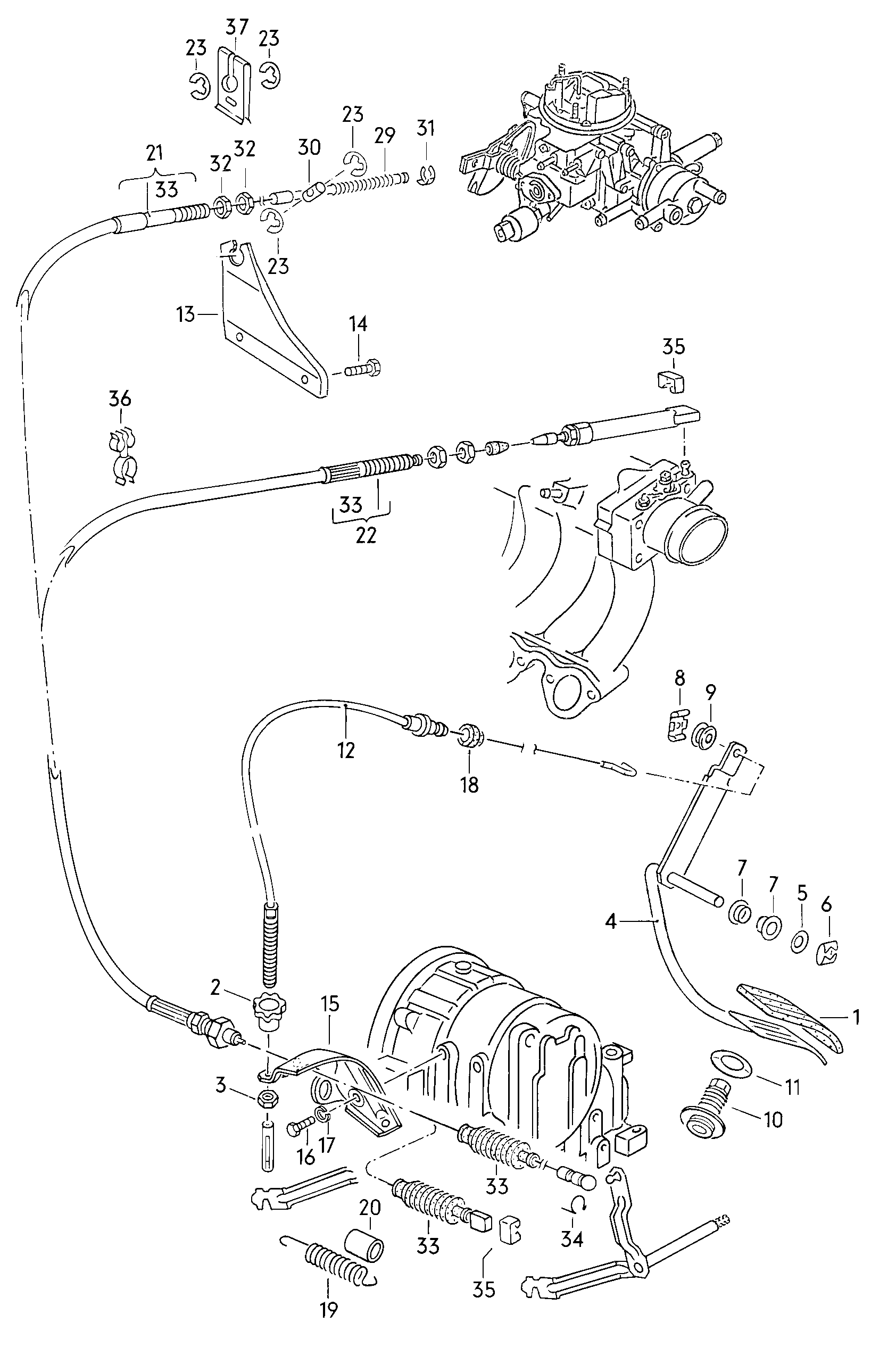

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Accelerator pedalaccelerator cable automatic	—
(12)	accelerator cablemarket orange 1453 MM 1453 MM	172 723 555 B
(21)	Bowden cablemarked blue 51/55 KW SCIR.:carburetorengine 51/55 KW	010 321 309 K
(21)	Bowden cablemarked yellow	010 321 307 A
(22)	Bowden cablemarked white DIESEL	010 321 307 B
(30)	Pin "GB.":carburetorengine	089 321 326
(30)	Pin "S..":carburetorengine	431 723 779
(4)	Accelerator pedal	172 723 509 A
(5)	Spring washer 8 8	N 900 020 01
1	Cap for accelerator pedal	171 721 647
10	Stop for accelerator pedal	171 723 527
11	Rosette	171 723 528
12	accelerator cablemarked grey 1004 MM 1004 MM	171 723 555 C
13	Intermediate bearing for Bowden cable carburetorengine	049 129 239 F
14	Hexagon bolt M 6 X 15 carburetorengine M 6 X 15	N 010 215 27
14	Hexagon bolt M 6 X 15 carburetorengine M 6 X 15	N 010 215 13
15	holder for bowden cable	171 723 583 A
16	Hexagon bolt M 8 X 20 M 8 X 20	N 010 240 16
17	spring ring 8 8	N 012 038 8
17	spring ring 8 8	N 012 038 7
18	Stop buffer	171 723 589 A
19	tension spring	803 723 691 A
2	adjusting nut	171 723 349
20	Damping rubber	052 129 234 C
21	Bowden cablemarked green carburetorengine	010 321 309 E
23	Retaining washer 6 6	N 012 436 2
26	No longer available	—
29	Pressure spring carburetorengine	010 321 319 D
3	Hexagon nut M 10 M 10	N 011 010 11
3	Hexagon nut M 10 M 10	N 101 552 07
30	Pin carburetorengine	089 321 327
31	Retaining washer 4 carburetorengine 4	N 012 325 4
32	Hexagon nut M 10 X 1 M 10 X 1	N 011 157 1
32	Hexagon nut M 10 X 1 M 10 X 1	N 103 286 02
33	No longer available	—
34	Securing bars 8 GOLF;SCIR. 8	N 904 314 01
35	securing clip	171 721 570 A
36	Cable tie with hose retainer 7 X 273-8 DIESEL 7 X 273-8	443 957 818 C
37	Clip	010 321 302
4	Accelerator pedal	171 723 509 A
5	Washer B 8,1 X 24 X 1,5 B 8,1 X 24 X 1,5	N 011 696 1
6	Clamping washer 8 8	N 012 858 2
7	Bearing bush	823 721 543
8	Clip	171 721 563
9	Bearing bush	823 721 567
