Accelerator pedalaccelerator cablefor automatic gearbox — Mk1 Golf Pedals (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - For manual gearbox. brake, clutch pedal cluster, clutch cable

Generation: Mk1 1979 - 1980 (RDW) Group: Pedals Parts: 47 Primary OEM: 172 723 555 B, 010 321 307 A, 010 321 319 D

Accelerator pedalaccelerator cablefor automatic gearbox for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 88000 from the Volkswagen ETKA parts catalogue, group 04 Pedals, listing 44 OEM part numbers across 47 catalogued positions including 172 723 555 B, 010 321 307 A and 010 321 319 D. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 44 OEM part numbers across 47 numbered positions.

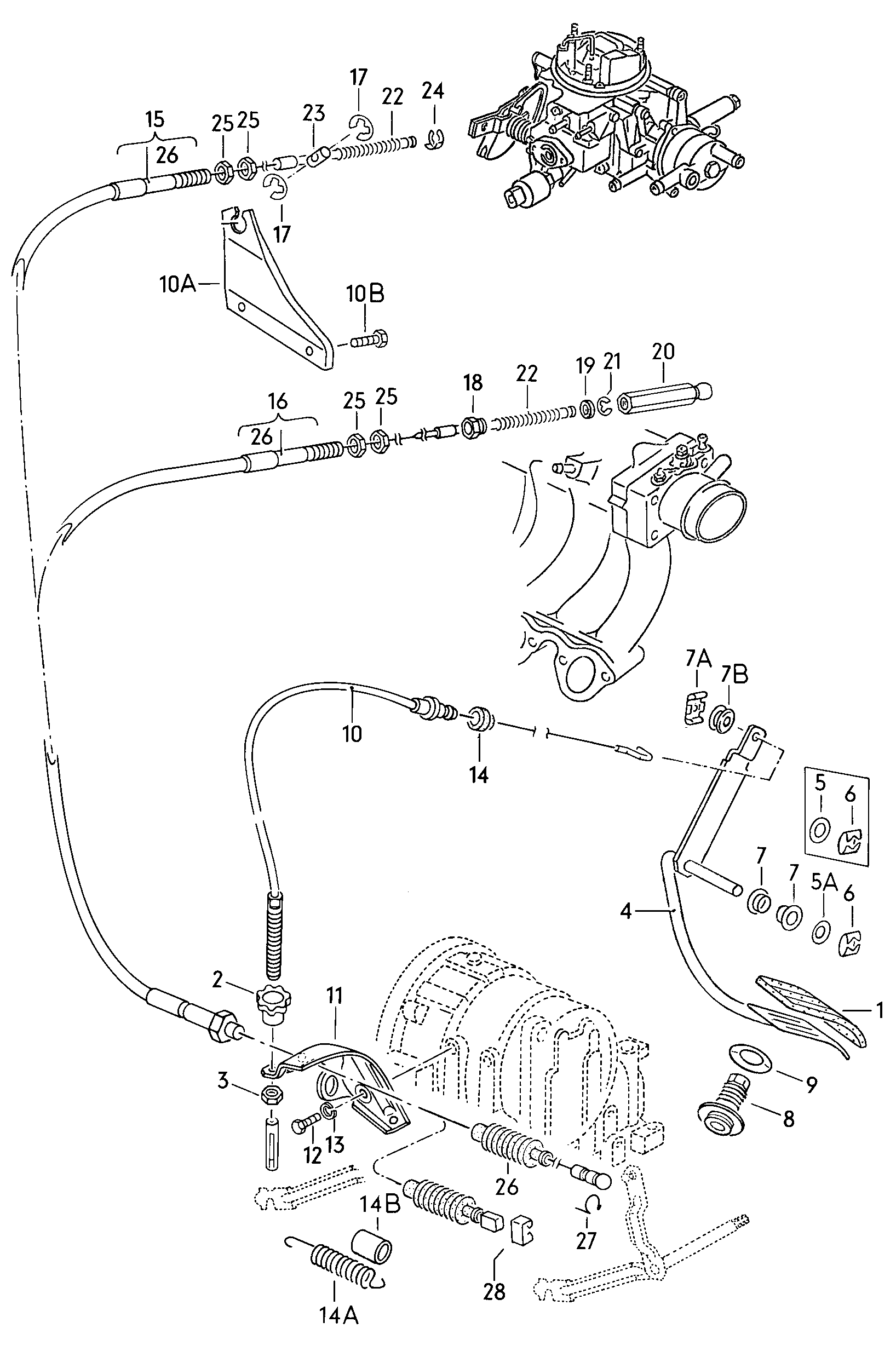

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
(10)
accelerator cablemarket orange 1453 MM
1453 MM
 172 723 555 B
(16)
Bowden cable also use: >>15 A 0801632 >>17 A 0116212 >>53 A 0012332171 721 570 A K-JETRONIC
>>15 A 0801632 >>17 A 0116212 >>53 A 0012332171 721 570 A
 010 321 307 A
(22)
Pressure spring
 010 321 319 D
(23)
Pin "GB."
 089 321 326
(23)
Pin EM
 431 723 779
(4)
Accelerator pedal
 172 723 509 A
(5)
Retaining washer 6
6
 N 012 436 2
1
Cap for accelerator pedal
 171 721 647
10
accelerator cablemarked grey 1004 MM
1004 MM
 171 723 555 C
10A
Intermediate bearing for Bowden cable F 15 A 0800 001>>F 16 A 0000 001>>F 17 A 0000 001>>F 53 A 0000 001>>
 049 129 239 F
10B
Hexagon bolt M 6 X 15
M 6 X 15
 N 010 215 27
10B
Hexagon bolt M 6 X 15
M 6 X 15
 N 010 215 13
11
holder for bowden cable
 171 723 583 A
12
Hexagon bolt M 8 X 20
M 8 X 20
 N 010 240 16
13
spring ring 8
8
 N 012 038 8
13
spring ring 8
8
 N 012 038 7
14
Stop buffer
 171 723 589 A
14A
tension spring
 803 723 691 A
14B
Damping rubber
 052 129 234 C
15
Bowden cable also use: >>15 A 0801632 >>17 A 0116212 >>53 A 0021823171 721 570 A carburetorengine
>>15 A 0801632 >>17 A 0116212 >>53 A 0021823171 721 570 A
 010 321 309 E
17
Retaining washer only for: 6010 321 309 E
6010 321 309 E
 N 012 436 2
18
No longer available K-JETRONIC
 —
18
sealing plug K-JETRONIC
 010 321 312
19
Washer 5,1 X 10,5 X 2 K-JETRONIC
5,1 X 10,5 X 2
 010 321 314
2
adjusting nut
 171 723 349
20
No longer available K-JETRONIC
 —
21
Retaining washer 4
4
 N 012 434 2
22
Pressure spring K-JETRONIC
 010 321 319 C
23
Pin
 089 321 327
24
Retaining washer 4
4
 N 012 325 4
25
Hexagon nut M 10 X 1
M 10 X 1
 N 103 286 02
25
Hexagon nut M 10 X 1
M 10 X 1
 N 011 157 1
26
No longer available
 —
27
Securing bars 8 GOLF;SCIR.
8
 N 904 314 01
28
securing clip
 171 721 570 A
3
Hexagon nut M 10
M 10
 N 011 010 11
3
Hexagon nut M 10
M 10
 N 101 552 07
4
Accelerator pedal
 171 723 509 A
5
Washer B 8,1 X 24 X 1,5
B 8,1 X 24 X 1,5
 N 011 696 1
5A
Spring washer 8
8
 N 900 020 01
6
Clamping washer 8
8
 N 012 858 2
7
Bearing bush
 823 721 543
7A
Clip
 171 721 563
7B
Bearing bush
 823 721 567
8
Stop for accelerator pedal
 171 723 527
9
Rosette
 171 723 528
9
Rosette
 1J0 723 528
