Brake clutch pedal cluster clutch cablefor manual gearbox — Mk1 Golf Pedals (1979 - 1980)
Factory title: Volkswagen Golf (1979 - 1980) - For manual gearbox. brake, clutch pedal cluster, clutch cable

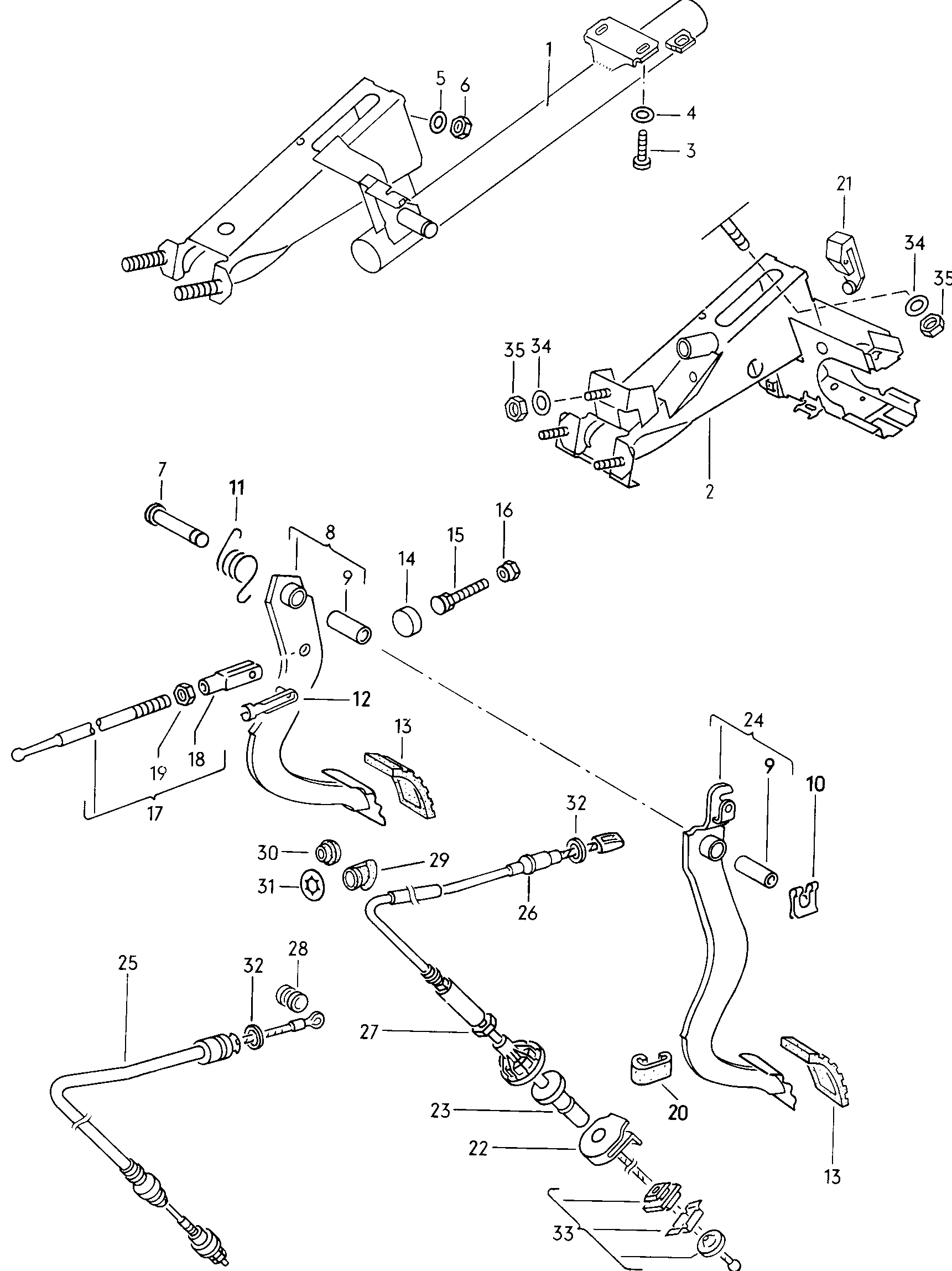

Brake clutch pedal cluster clutch cablefor manual gearbox for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 84000 from the Volkswagen ETKA parts catalogue, group 04 Pedals, listing 53 OEM part numbers across 56 catalogued positions including 823 721 173 0 1C, 172 721 338 and N 900 512 01. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 53 OEM part numbers across 56 numbered positions.
| № | Description | Part number |
|---|---|---|
| Satin black | 823 721 173 0 1C | |
| - | bracket for clutch cable DIESEL | 172 721 338 |
| - | Pin 11 X 20,6 X 7,1 11 X 20,6 X 7,1 | N 900 512 01 |
| - | split pin insert 10 10 | N 033 974 1 |
| - | Retaining washer 8 X 0,50 8 X 0,50 | N 902 547 01 |
| (1) | bracket with steering columntube for pedal clusterfor models with brakeservo | 172 721 053 F |
| (11) | torsion spring SCIR.;JETTA | 171 721 163 C |
| (11) | torsion spring GOLF;SCIR. | 171 721 163 D |
| (20) | Stop bufferfor clutch pedal | 171 721 231 C |
| (24) | Clutch pedal | 172 721 315 E |
| (25) | clutch cable 1457 MM 1457 MM | 172 721 335 D |
| (26) | clutch cable 1615 MM GOLF,JETTA 1615 MM | 154 721 335 |
| (26) | clutch cable 1490 MM SCIR.GTI,GLI 1490 MM | 532 721 335 J |
| (26) | clutch cable Carburettor 1216 MM SCIR. 1216 MM | 532 721 335 |
| (26) | clutch cable 885 MM SCIR. 885 MM | 531 721 335 C |
| (26) | clutch cable 1202 MM DIESEL 1202 MM | 172 721 335 J |
| (26) | clutch cable 1470 MM GOLF GTI,GLI"J..":GOLFJETTA LI,GLI"J..":JETTA 1470 MM | 172 721 335 H |
| (7) | axle | 172 721 123 A |
| (8) | brake pedal GOLF GTI,GLIJETTA LI,GLIE,LE,GLE,SCIR.GLI,GTI,GTE,GLE | 172 721 141 |
| 1 | bracket with steering columntube for pedal clusterfor models with nobrake servo | 172 721 053 G |
| 10 | Retaining washer 10 10 | N 012 654 1 |
| 11 | torsion spring GOLF | 171 721 163 C |
| 12 | Discont. / replace: N 900 512 01 N 902 547 01 N 900 512 01 N 902 547 01 | — |
| 13 | pad forbrake and clutch pedals | 823 721 173 |
| 14 | Stop bufferfor models with nobrake servo GOLF | 411 721 183 |
| 15 | stop screwfor models with nobrake servo GOLF | 171 721 185 |
| 16 | Hexagon nut M 6 M 6 | N 011 116 5 |
| 17 | No longer availablefor models with nobrake servo GOLF | — |
| 17 | push barfor models with nobrake servo GOLF | 171 721 205 G |
| 18 | clevis 10 X 31 10 X 31 | N 900 125 01 |
| 19 | Hexagon nut M 10 M 10 | N 011 134 5 |
| 2 | bracket for pedal cluster | 171 721 111 G |
| 20 | Stop bufferfor clutch pedal | 171 721 231 |
| 21 | Stop buffer | 171 721 232 B |
| 22 | Rubber washer | 171 721 307 |
| 23 | Damping rubber | 171 721 308 |
| 24 | Clutch pedal | 171 721 315 F |
| 25 | clutch cable 1055 MM 1055 MM | 171 721 335 D |
| 26 | clutch cable 800 MM GOLF,JETTA 800 MM | 171 721 335 E |
| 27 | Hexagon nut M 10 M 10 | N 011 120 5 |
| 28 | Bearing pin for clutch cable also use: N 033 974 1 N 033 974 1 | 171 721 343 B |
| 29 | Grommet GOLF,JETTA | 171 721 380 |
| 3 | sheer bolt | 411 417 549 |
| 30 | Grommet SCIR. | 531 721 380 |
| 31 | Clamping washer 20 X 34 20 X 34 | N 900 157 01 |
| 32 | seal ring 11,8 X 15,8 11,8 X 15,8 | N 900 158 01 |
| 33 | 1 set fixing parts forclutch cable | 171 798 105 |
| 34 | No longer available | — |
| 35 | hexagon nut, self-locking M 8 M 8 | N 022 146 4 |
| 4 | Washer 8,4 8,4 | 111 129 720 |
| 5 | Washer A 8,4 X 16 X 1,6 A 8,4 X 16 X 1,6 | N 011 525 20 |
| 5 | Washer A 8,4 A 8,4 | N 011 525 13 |
| 6 | hexagon nut, self-locking M 8 M 8 | N 022 146 4 |
| 7 | axle | 171 721 123 E |
| 8 | brake pedal | 171 721 141 D |
| 9 | Bearing bush | 171 721 153 C |
From the Type 19 workshop
Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these pedals diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk1
- Model years
- 1979 - 1980
- Generation region
- RDW
- Generation code
- 027
- Factory group
- 04 Pedals
- Factory subgroup
- 84000
