Brake pedal bracketfor automatic gearbox — Mk1 Golf Pedals (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - For manual gearbox. brake, clutch pedal cluster, clutch cable

Generation: Mk1 1979 - 1980 (RDW) Group: Pedals Parts: 29 Primary OEM: 448 723 173 0 1C, N 900 512 01, N 902 547 01

Brake pedal bracketfor automatic gearbox for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 85000 from the Volkswagen ETKA parts catalogue, group 04 Pedals, listing 25 OEM part numbers across 29 catalogued positions including 448 723 173 0 1C, N 900 512 01 and N 902 547 01. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 25 OEM part numbers across 29 numbered positions.

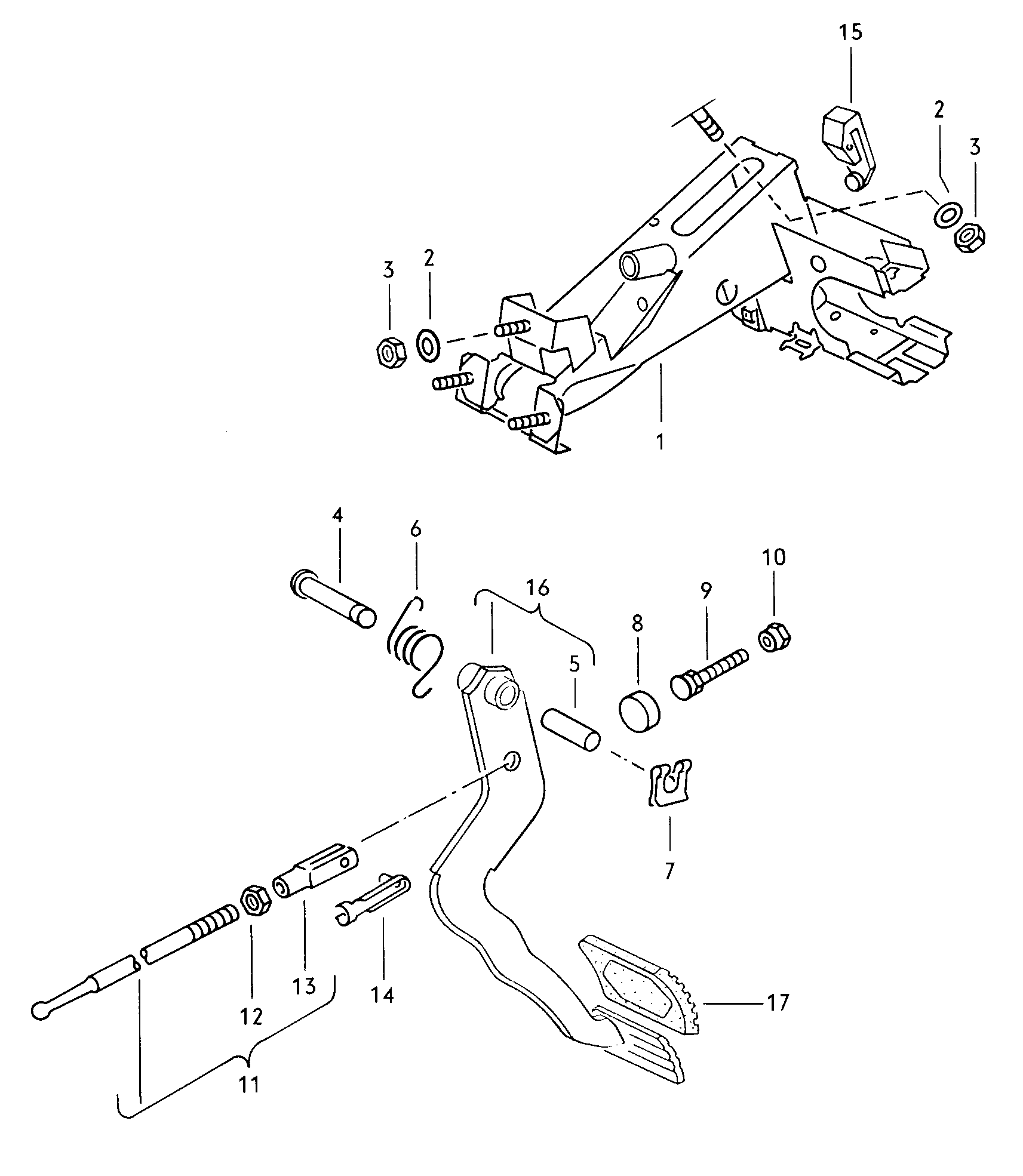

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Satin black
 448 723 173 0 1C
-
Pin 11 X 20,6 X 7,1
11 X 20,6 X 7,1
 N 900 512 01
-
Retaining washer 8 X 0,50
8 X 0,50
 N 902 547 01
(1)
Bracket
 172 723 053 C
(16)
brake pedal K-JETRONIC
 172 723 141
(4)
axle
 172 721 123 A
(6)
torsion springfor models with brakeservo GOLF,SCIR.
 171 721 163 D
(6)
torsion spring GOLF
 171 721 163 C
(6)
torsion spring JETTA
 171 721 163 C
1
bracket for pedal cluster
 171 721 111 G
10
Hexagon nut M 6
M 6
 N 011 116 5
11
push barfor models with nobrake servo
 171 721 205 G
11
No longer availablefor models with nobrake servo
 —
12
Hexagon nut M 10
M 10
 N 011 134 5
13
clevis 10 X 31
10 X 31
 N 900 125 01
14
Discont. / replace: N 900 512 01 N 902 547 01
N 900 512 01 N 902 547 01
 —
15
Stop buffer
 171 721 232 B
16
brake pedal
 171 723 141 C
17
Capfor foot brake pedal 80 MM automatic
80 MM
 827 723 173
17
Capfor foot brake pedal 80 MM
80 MM
 448 723 173
2
No longer available
 —
3
hexagon nut, self-locking M 8
M 8
 N 022 146 4
4
axle
 171 721 123 E
5
Bearing bush
 171 721 153 C
6
No longer available SCIR.
 —
6
torsion spring SCIR.
 171 721 163 B
7
Retaining washer 10
10
 N 012 654 1
8
Stop buffer
 411 721 183
9
stop screw
 171 721 185
