Brake pedalbracket pedal cluster automatic — Mk1 Golf Pedals (1981)

Factory title: Volkswagen Golf (1981) - Brake, clutch pedal cluster, clutch cable

Generation: Mk1 1981 (RDW) Group: Pedals Parts: 30 Primary OEM: 448 723 173 0 1C, 827 723 173 0 1C, 172 723 053 C

Brake pedalbracket pedal cluster automatic for the Volkswagen Golf Mk1 (1981): factory exploded diagram 127000 from the Volkswagen ETKA parts catalogue, group 04 Pedals, listing 27 OEM part numbers across 30 catalogued positions including 448 723 173 0 1C, 827 723 173 0 1C and 172 723 053 C. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 27 OEM part numbers across 30 numbered positions.

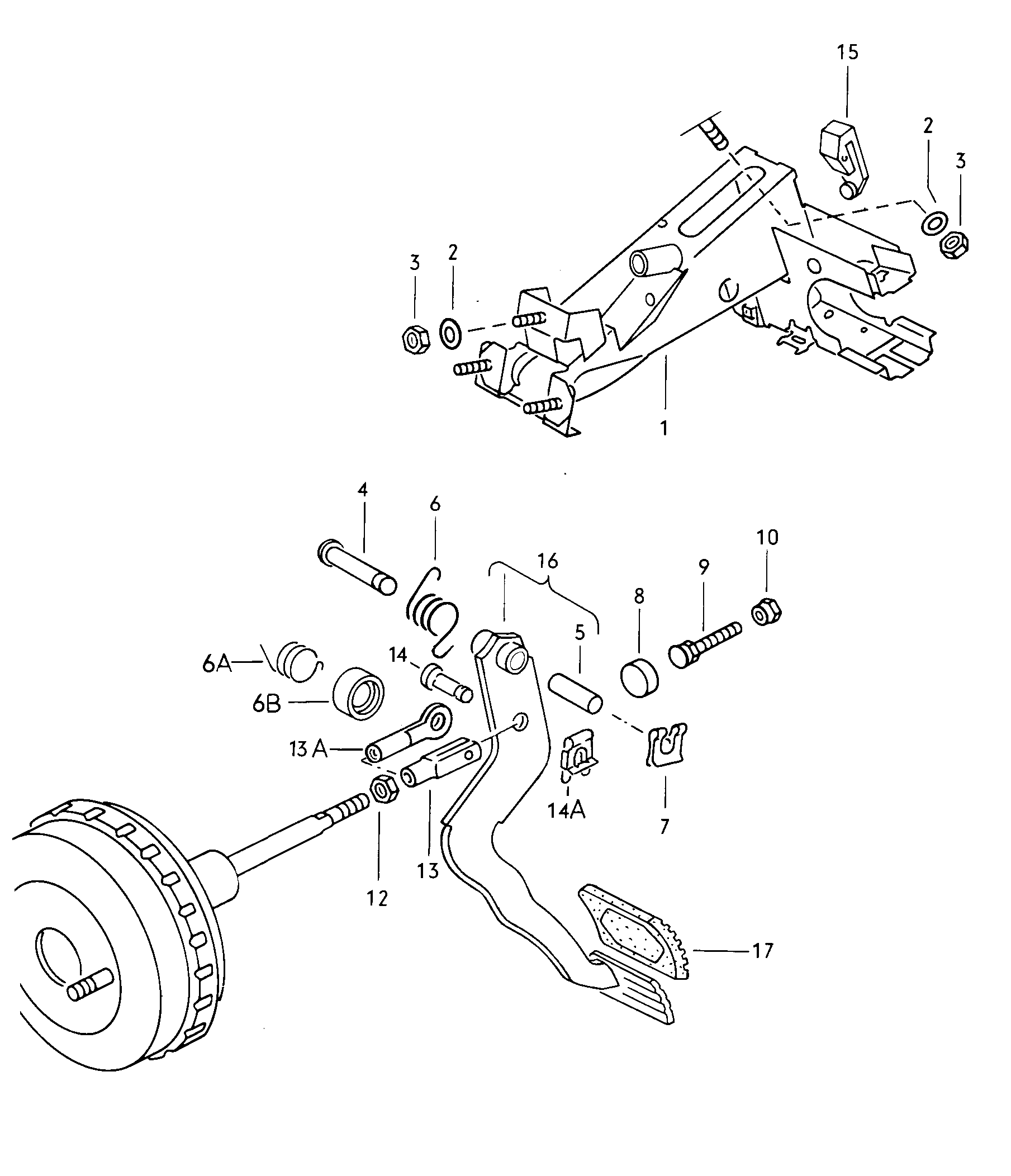

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Satin black
 448 723 173 0 1C
brake pedalbracket for pedal cluster automatic
 —
Satin black
 827 723 173 0 1C
(1)
Bracket
 172 723 053 C
(4)
axle
 172 721 123 A
(6)
torsion spring GOLF
 171 721 163 C
1
bracket for pedal cluster
 171 721 111 G
10
Hexagon nut M 6
M 6
 N 011 116 5
11
No longer availablefor models with nobrake servo
 —
11
push barfor models with nobrake servo
 171 721 205 G
12
Hexagon nut M 10
M 10
 N 011 134 5
13
clevis 10 X 31
10 X 31
 N 900 125 01
14
Pin 11 X 20,6 X 7,1
11 X 20,6 X 7,1
 N 900 512 01
14A
Retaining washer 8 X 0,50
8 X 0,50
 N 902 547 01
15
Stop buffer
 171 721 232 B
16
brake pedal K-JETRONIC
 172 723 141
17
Capfor foot brake pedal 80 MM automatic
80 MM
 827 723 173
17
Capfor foot brake pedal 80 MM
80 MM
 448 723 173
2
Washer A 8,4
A 8,4
 N 011 525 13
2
Washer A 8,4 X 16 X 1,6
A 8,4 X 16 X 1,6
 N 011 525 20
3
hexagon nut, self-locking M 8
M 8
 N 022 146 4
4
axle
 171 721 123 E
5
Bearing bush
 171 721 153 C
6
No longer available SCIR.;JETTA
 —
6
torsion spring SCIR.;JETTA
 171 721 163 B
6A
torsion springfor models with brakeservo GOLF,SCIR.
 172 721 163
6B
Bearing bush
 155 721 164
7
Retaining washer 10
10
 N 012 654 1
8
Stop buffer
 411 721 183
9
stop screw
 171 721 185
