Brake servo components rhd — Mk1 Golf Pedals (1981)

Factory title: Volkswagen Golf (1981) - Brake, clutch pedal cluster, clutch cable

Generation: Mk1 1981 (RDW) Group: Pedals Parts: 35 Primary OEM: 532 721 701, 532 721 731 A, 172 721 297 B

Brake servo components rhd for the Volkswagen Golf Mk1 (1981): factory exploded diagram 128000 from the Volkswagen ETKA parts catalogue, group 04 Pedals, listing 33 OEM part numbers across 35 catalogued positions including 532 721 701, 532 721 731 A and 172 721 297 B. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 33 OEM part numbers across 35 numbered positions.

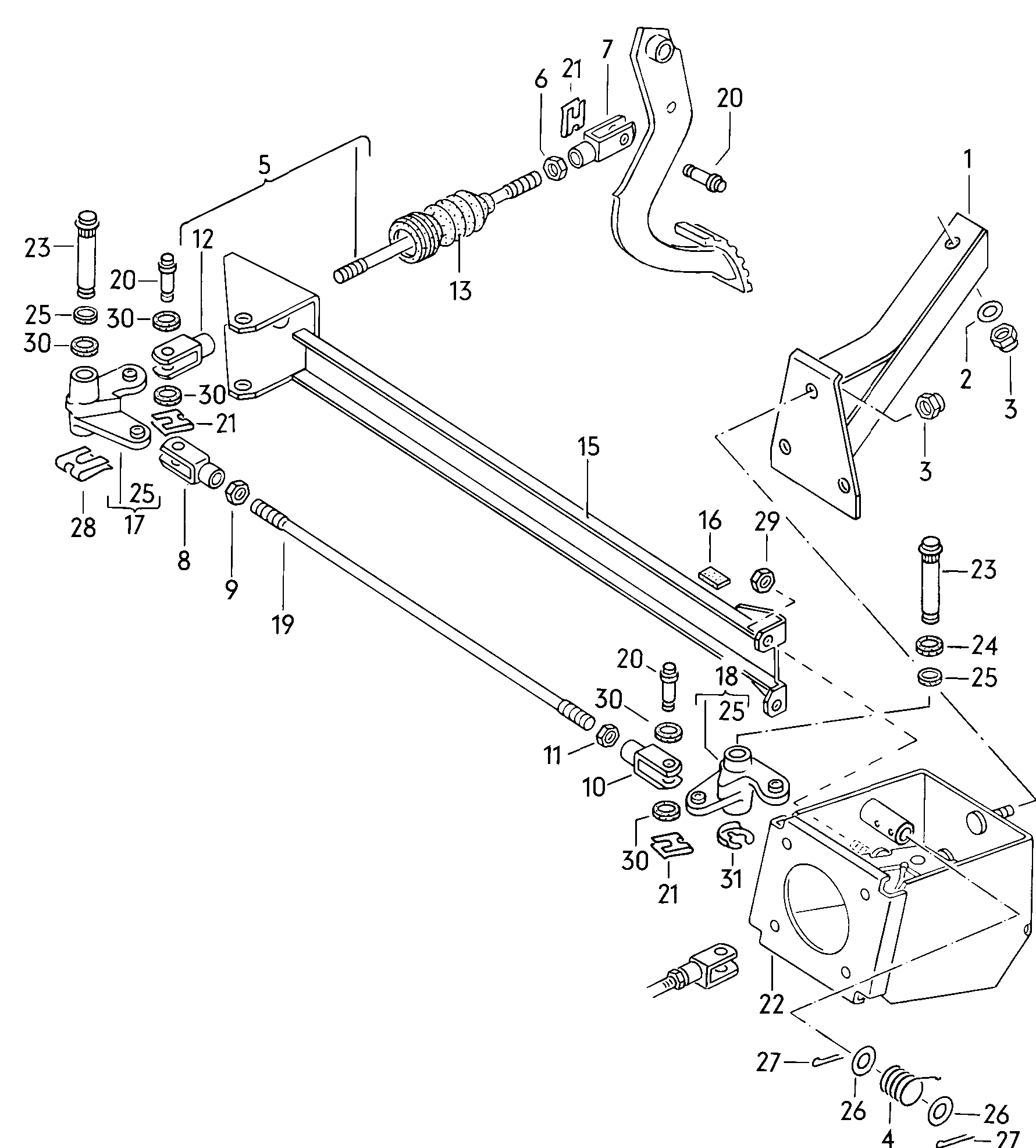

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
(15)
Bracket SCIR.
 532 721 701
(22)
bracket forbrake servo SCIR.
 532 721 731 A
(5)
push bar
 172 721 297 B
1
Bracket
 172 721 132
10
clevis 8 X 32
8 X 32
 N 900 065 01
11
Hexagon nut M 8
M 8
 N 011 118 16
11
Hexagon nut BM 8
BM 8
 N 011 118 11
12
clevis 8 X 18
8 X 18
 N 900 079 01
13
Protective sleeve
 172 612 109 B
14
No longer available
 —
15
Bracket GOLF;JETTA
 172 721 701 A
16
sound absorber (self-adhesive) SCIR.;JETTA
 171 827 379
17
lever
 172 721 712 B
18
lever
 172 721 712 C
19
pull rod 476 MM
476 MM
 172 721 723
2
Washer A 8,4 X 16 X 1,6
A 8,4 X 16 X 1,6
 N 011 525 20
2
Washer A 8,4
A 8,4
 N 011 525 13
20
bearing pin
 172 721 725 B
21
Retaining washer 6
6
 N 900 470 01
22
bracket forbrake servo GOLF,JETTA
 172 721 731 A
23
bearing shaft
 172 721 737 A
24
No longer available
 —
25
seal ring
 172 721 741
26
thrust washer
 172 721 742
27
split pin 3,2 X 40
3,2 X 40
 N 012 540 1
28
Retaining washer 8 X 0,50
8 X 0,50
 N 902 547 01
29
hexagon nut, self-locking M 8
M 8
 N 022 146 4
3
hexagon nut, self-locking M 8
M 8
 N 022 146 4
30
felt ring
 172 721 793
31
Retaining washer 8
8
 N 012 328 1
4
torsion spring
 172 721 192
6
Hexagon nut M 10
M 10
 N 011 134 5
7
clevis 10 X 31
10 X 31
 N 900 125 01
8
clevis 8 X 32
8 X 32
 N 900 065 02
9
Hexagon nut M 8
M 8
 N 011 118 4
