Cold starting aid cable — Mk1 Golf Pedals (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Selector mechanism. for 4-speed manual gearbox

Generation: Mk1 1979 - 1980 (RDW) Group: Pedals Parts: 44 Primary OEM: 111 941 541 B 0 43, 171 898 180 9 0V, 171 898 180 8 99

Cold starting aid cable for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 83000 from the Volkswagen ETKA parts catalogue, group 04 Pedals, listing 40 OEM part numbers across 44 catalogued positions including 111 941 541 B 0 43, 171 898 180 9 0V and 171 898 180 8 99. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 40 OEM part numbers across 44 numbered positions.

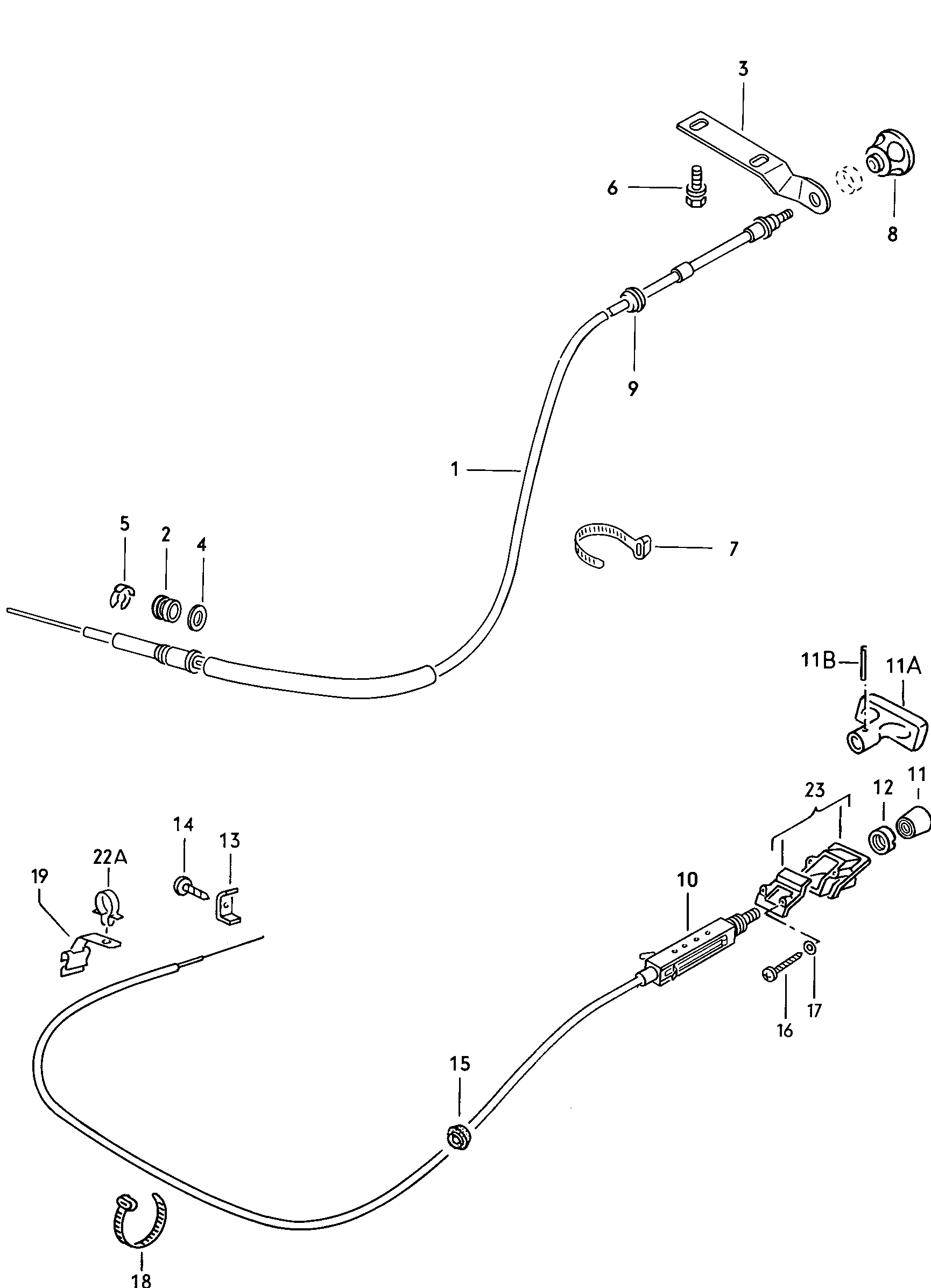

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Grey black	111 941 541 B 0 43
	saddle brown	171 898 180 9 0V
	Black	171 898 180 8 99
	Black	191 711 503 A L V8
	Satin black	861 711 503 C 0 1C
	Satin black	861 711 503 A 0 1C
	Satin black	861 711 503 A 0 1C
	saddle brown	111 941 541 B 9 0V
	cold starting aid cable DIESEL	—
	cold starting aid cable F 179 3000 001>>F 15 A 0800 001>>F 16 A 0000 001>>F 17 A 0000 001>>F 53 A 0000 001>> Carburettor "S.." Carburettor	—
-	spring pin 4 X 12 SCIR. 4 X 12	N 023 255 1
(10)	cold starting aid cable F 15 A 0800 001>>F 16 A 0000 001>>F 17 A 0000 001>>F 17 A 0000 001>> GOLF,S,L,LS,GL,GLS	171 711 501 C
(10)	cold starting aid cable also use: 191 711 503 A(LV 8) JETTA,L.GL 191 711 503 A(LV 8)	161 711 501 C
(10)	cold starting aid cable also use: 191 711 503(01 C) JETTA,L.GL 191 711 503(01 C)	161 711 501 C
(10)	cold starting aid cable F >> 159 2810 000 F >> 179 3750 000	171 711 501 B
(10)	cold starting aid cable F 53 A 0000 001>> also use: N 023 255 1 SCIR.,L,GL,GT N 023 255 1	861 711 501 H
(23)	mounting for choke/cable F 16 A 0000 001>>F 17 A 0000 001>> JETTAGOLF	171 898 180 A
1	cold starting aid cable	171 711 501 A
11	knob GOLF;SCIR.	861 711 503 A
11	knob JETTA	861 711 503 A
11A	handle	191 711 503 A
11A	knob JETTA	861 711 503 C
11B	No longer available	—
12	Nut	861 711 509 A
13	Retaining bar "S.."	811 711 517
14	fillister hd. bolt M 5 X 12 M 5 X 12	N 014 133 5
15	Grommet 12,5/4 12,5/4	803 959 843
16	oval head panel screw 3,5 X 19 3,5 X 19	N 013 950 2
17	Washer 3,7 3,7	N 011 521 3
18	Cable ties 3,6 X 246 3,6 X 246	N 020 902 2
19	Clip F 15 A 0800 001>>F 16 A 0000 001>>F 17 A 0000 001>>F 53 A 0000 001>>	321 711 537
2	Grommet 10 X 15 10 X 15	N 900 377 01
22A	Cable ties F 15 A 0800 001>>F 17 A 0000 001>>F 53 A 0000 001>> 4,6 X 200 4,6 X 200	N 906 661 01
22A	Clip F 15 A 0800 001>>F 17 A 0000 001>>F 53 A 0000 001>>	867 971 848
23	mounting for choke/cable F 159 2800 001>>F 179 0000 001>>F 15 A 0800 001>>F 16 A 0000 001>>F 17 A 0000 001>>F 53 A 0000 001>> "S.."GOLF GLJETTAGOLF,S,L,LS,GL,GLSSCIR.L,GL,GT	171 898 180
23	No longer available F 16 A 0000 001>>F 17 A 0000 001>> JETTAGOLF	—
3	bracket f.cold start aid cable	171 711 533 A
4	Washer 10 10	N 011 527 11
5	Retaining washer 8 8	N 012 328 1
6	sheer bolt	411 417 549
7	Cable ties 210 210	N 020 902 1
7	Cable ties 3,6 X 246 3,6 X 246	N 020 902 2
8	knob	111 941 541 B
9	Grommet 12,5 12,5	171 971 913

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these pedals diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1979 - 1980
Generation region: RDW
Generation code: 027
Factory group: 04 Pedals
Factory subgroup: 83000
