Selector mechanism automatic — Mk1 Golf Pedals (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - Selector mechanism

Generation: Mk1 1982 - 1983 (RDW) Group: Pedals Parts: 50 Primary OEM: 447 713 139 A 0 1C, 171 863 215 B 1 HD, 171 863 215 B 9 0V

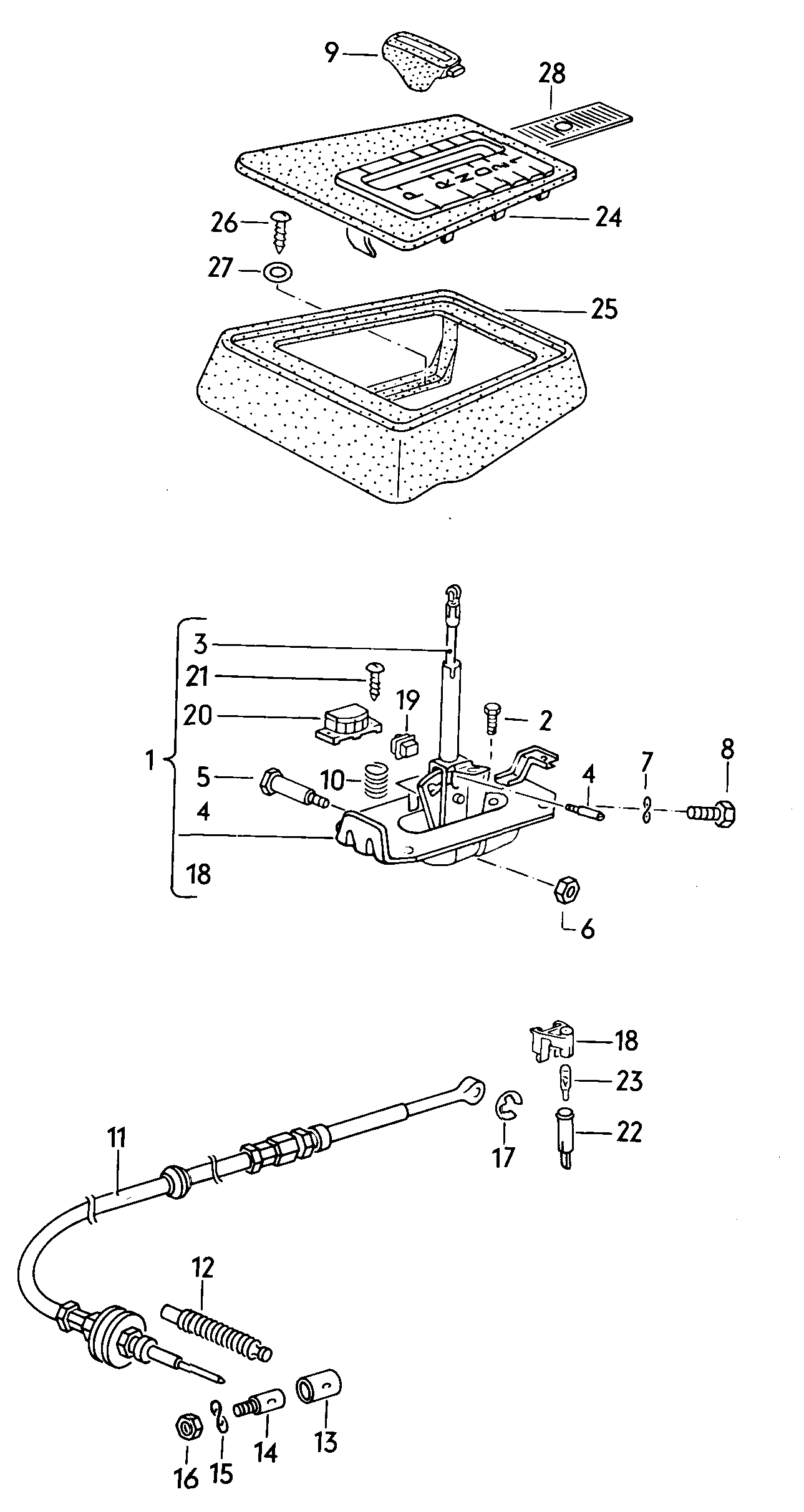

Selector mechanism automatic for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 123000 from the Volkswagen ETKA parts catalogue, group 04 Pedals, listing 49 OEM part numbers across 50 catalogued positions including 447 713 139 A 0 1C, 171 863 215 B 1 HD and 171 863 215 B 9 0V. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 49 OEM part numbers across 50 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
Satin black
 447 713 139 A 0 1C
royale blue
 171 863 215 B 1 HD
saddle brown
 171 863 215 B 9 0V
Satin black
 171 863 215 B 0 1C
Selector mechanism automatic
 —
Satin black
 533 863 215 0 1C
royale blue
 321 863 277 A 1 HD
Satin black
 321 863 277 A 0 1C
Satin black
 321 863 277 0 1C
saddle brown
 171 863 275 E 9 0V
Satin black
 171 863 275 E 0 1C
-
Flat contact housing
 191 906 231 A
(1)
Selector mechanism DIESEL
 171 713 025 D
(1)
Selector mechanism SCIR.
 531 713 025 B
(20)
contact carrier DIESEL
 171 927 147 A
(24)
Trim for gear selector
 533 863 215
(24)
trim for shift mechanismwith cover strip DIESEL
 171 863 215 B
(3)
gearshift lever SCIR.
 321 713 121 A
(9)
selector lever handle
 447 713 139 A
1
Selector mechanism GOLF,JETTA
 171 713 025 C
10
Pressure spring
 171 713 149
11
cable for shift mechanism
 171 713 265 C
12
Bellows
 311 713 269 B
13
Clamping sleeve
 311 713 291 A
14
Clamping bolt
 311 713 293
15
Spring washer B 8 X 15
B 8 X 15
 N 012 241 10
15
Spring washer B 8 X 15 X 0,8
B 8 X 15 X 0,8
 N 012 241 11
16
Hexagon nut BM 8
BM 8
 N 011 118 11
16
Hexagon nut M 8
M 8
 N 011 118 16
17
Retaining washer 4
4
 N 012 434 2
18
Bulb carrier with bulb also use: 191 906 231 A
191 906 231 A
 321 927 149
19
contacts
 171 927 145 A
2
Hexagon bolt M 6 X 18
M 6 X 18
 N 010 216 12
20
contact carrier
 311 927 147 B
21
oval head panel screw 4,8 X 13
4,8 X 13
 N 013 968 1
22
Bulb holder
 111 919 243
23
bulb W 5/1,2 W 12 V 1,2 W
W 5/1,2 W 12 V 1,2 W
 N 017 751 2
25
Gear shift cover
 171 863 275 E
25
Gear shift cover
 171 863 275 E
26
oval head panel screw ST 4,8 X 16,0
ST 4,8 X 16,0
 N 013 969 4
27
Washer 5
5
 N 011 523 18
28
cover strips
 321 863 277 A
28
cover strips
 321 863 277
3
gearshift lever GOLF,JETTA
 171 713 121
4
Cylinder pin
 171 713 133
5
Locating bolt
 171 711 199 A
6
hexagon nut, self-locking M 6
M 6
 N 011 183 11
6
hexagon nut, self-locking M 6
M 6
 N 011 183 12
7
Spring washer 6
6
 N 012 226 5
8
Hexagon bolt M 6 X 8
M 6 X 8
 N 010 208 5

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these pedals diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk1
Model years
1982 - 1983
Generation region
RDW
Generation code
007
Factory group
04 Pedals
Factory subgroup
123000
